SL-LH-BC9/16-20 (ZYBC050HEV7) | Spiral Fluted Taps for Tapping Through Holes for Bicycle Threads | YAMAWA
THB 0.00
พร้อมส่ง
SKU
ZYBC050HEV7
QTY:
1

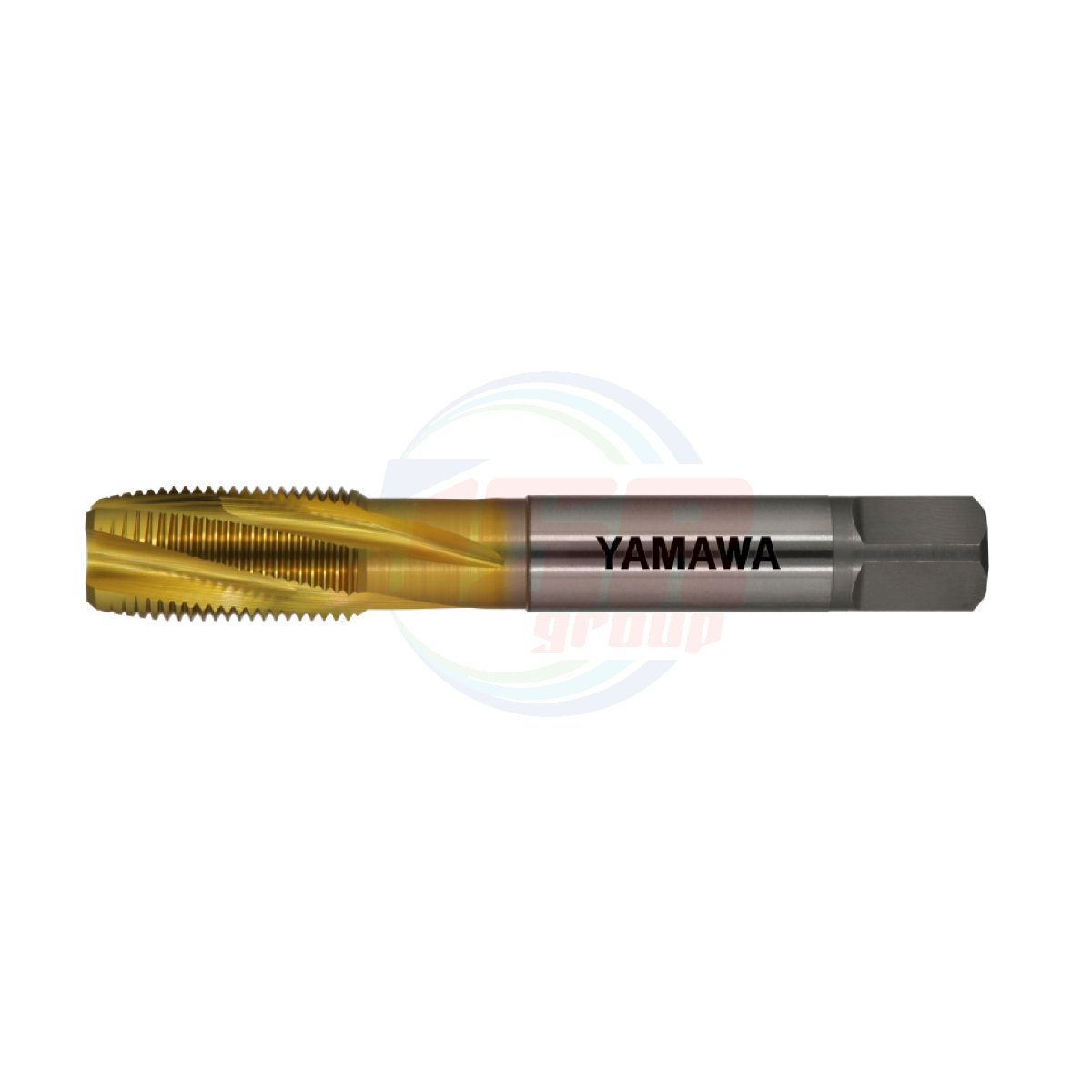

- These are taps for left-hand threads designed for machining cranks (through holes) of bicycles.

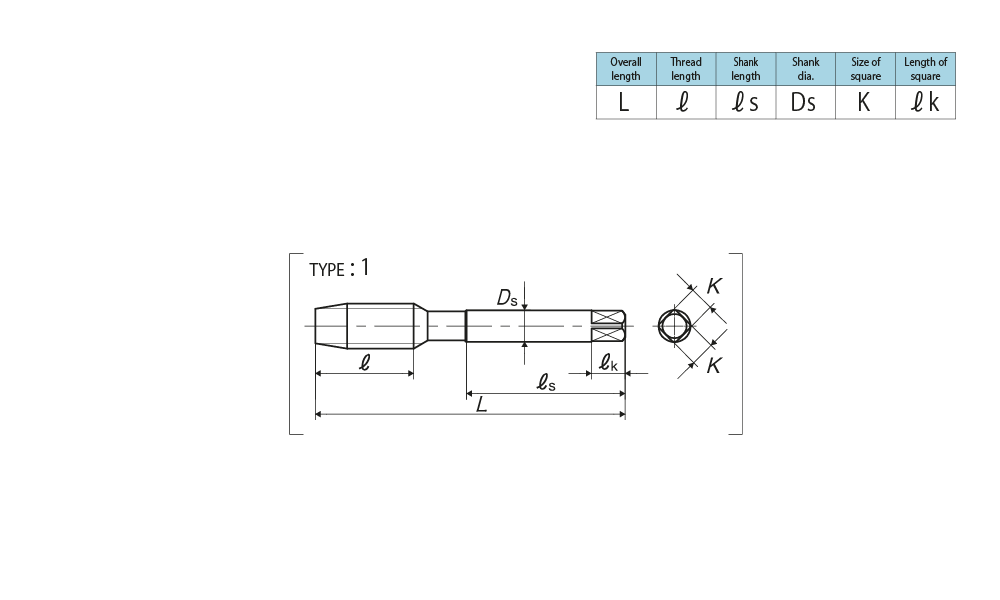

Specification
Tapping Speeds depending on Materials
Segment：1S
|
Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
Bicycle Threads For Left-Hand threads |
||||||||||
|
BC 9/16-20 |
ZYBC050HEV7 |
7P |
95 |
26 |
48 |
12.5 |
10 |
13 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | BC9/16-20 (ZYBC050HEV7) |
| Model | SL LH BC |
| Size | BC 9/16-20 |
| Chamfer | 7P |
| Overall length (L) | 95 |
| Thread length (ℓ) | 26 |
| Shank length (ℓs) | 48 |
| Shank dia. (Ds) | 12.5 |
| Size of Square (K) | 10 |
| Length of square (ℓk) | 13 |
