SL-LH-Tr (Trapezoidal threads) | A Spiral Flute Left Hand Trapezoidal Thread Tap Spiral Tap | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 11,109.35
พร้อมส่ง
SKU
SL-LH-Tr (Trapezoidal threads)

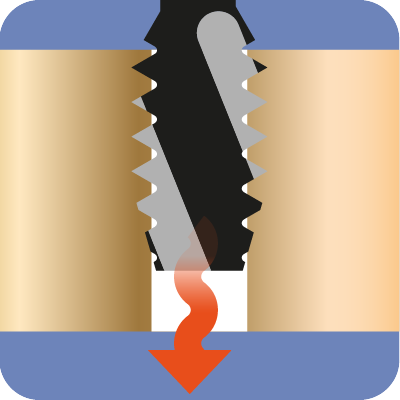

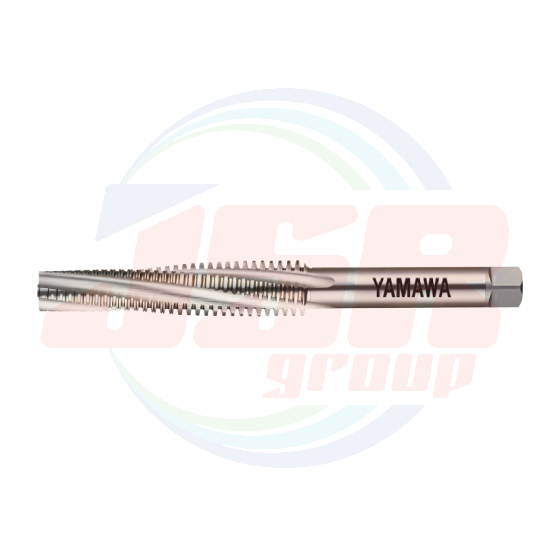

- The SL LH Tr is a spiral flute tap for through hole tapping of a left hand trapezoidal thread. The thread angle is 30°. The thread symbol is represented by Tr.

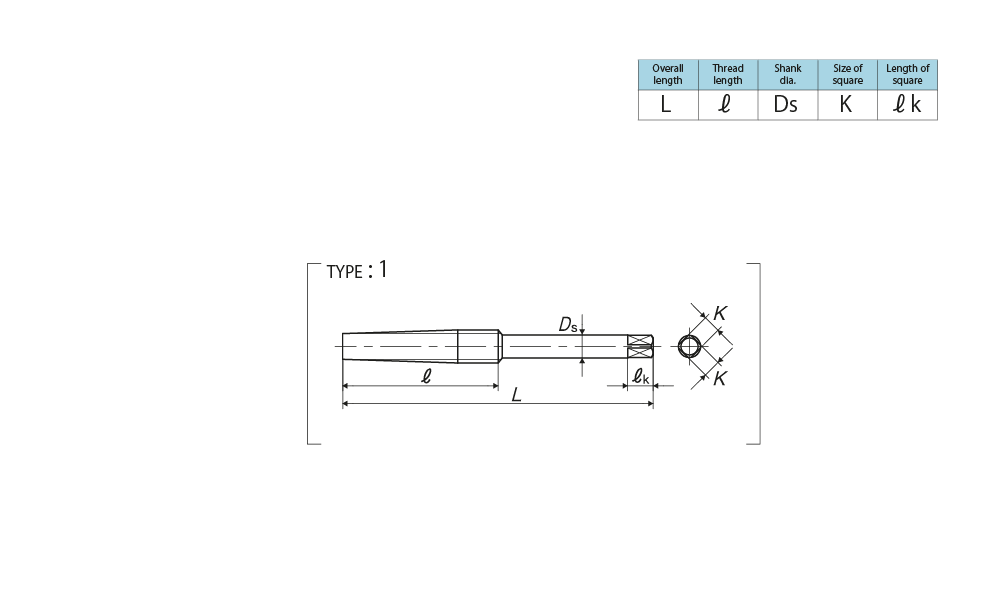

Specification
Tapping Speeds depending on Materials
Segment：1S
|
Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Trapezoidal threads |
|||||||||
|
Tr 10×2 |
ZYT10Q0HEB |
26P |
160 |
70 |
7.8 |
6 |
9 |
3 |
1 |
|
Tr 12×3 |
ZYT12S0HEB |
23P |
190 |
95 |
9 |
7 |
10 |
3 |
1 |
|
Tr 12×2 |
ZYT12Q0HEB |
30P |
170 |
80 |
9 |
7 |
10 |
3 |
1 |
|
Tr 14×3 |
ZYT14S0HEB |
23P |
190 |
95 |
11 |
9 |
12 |
3 |
1 |
|
Tr 16×4 |
ZYT16U0HEB |
22.5P |
220 |
120 |
12 |
9 |
12 |
3 |
1 |
|
Tr 16×3 |
ZYT16S0HEB |
25P |
200 |
100 |
13 |
10 |
13 |
3 |
1 |
|
Tr 18×4 |
ZYT18U0HEB |
22.5P |
220 |
120 |
14 |
11 |
14 |
4 |
1 |
|
Tr 20×4 |
ZYT20U0HEB |
24.5P |
230 |
130 |
16 |
12 |
15 |
4 |
1 |
|
Tr 22×5 |
ZYT22W0HEB |
22P |
250 |
150 |
18 |
14 |
17 |
4 |
1 |
|
Tr 24×5 |
ZYT24W0HEB |
24P |
260 |
160 |
19 |
15 |
18 |
4 |
1 |
|
Tr 25×5 |
ZYT25W0HEB |
25P |
270 |
170 |
20 |
15 |
18 |
4 |
1 |
|
Tr 26×5 |
ZYT26W0HEB |
27P |
280 |
180 |
21 |
17 |
20 |
4 |
1 |
|
Tr 28×5 |
ZYT28W0HEB |
28P |
290 |
190 |
22 |
17 |
20 |
4 |
1 |
|
Tr 30×6 |
ZYT30Y0HEB |
25P |
300 |
200 |
24 |
19 |
22 |
4 |
1 |
・standards of Tr threads and TM threads.
