Dial Thickness Gauge
SM-1201 Series
• Suitable for measuring thickness and diameter of metal, lens, rubber, plastic, paper, felt, hair and pearl etc. In actual dimension.

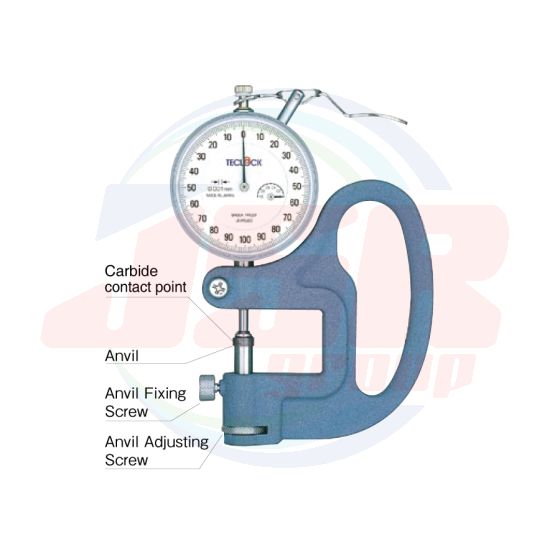

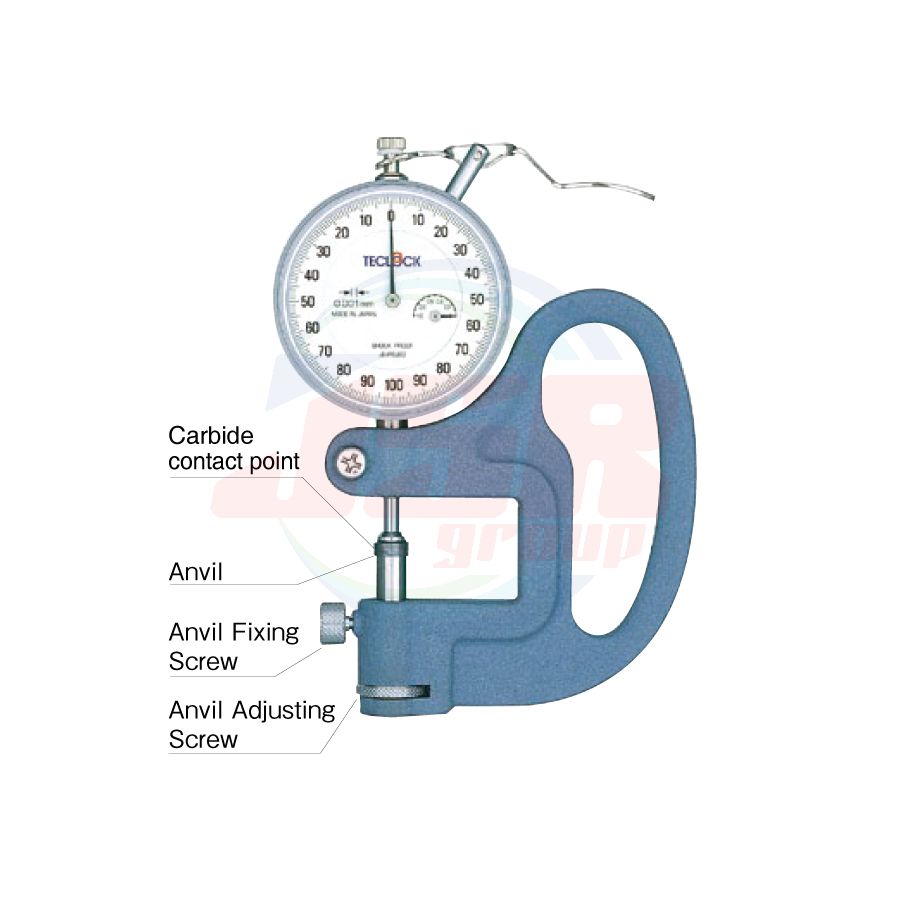

• Ceramic contact point and anvil feature are superior for anti-abrasion and dust. In addition, there are steel FE type and AT type which rarely adheres with adhesion tape.
• As to shape of contact point and anvil, there are standard type and other various kinds.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error(μm) | Parallelism (μm) |
Dial Reading |
Measuring Force (N) |
Contact Point Form (mm) |
Anvil Form (mm) |
Weight (g) |

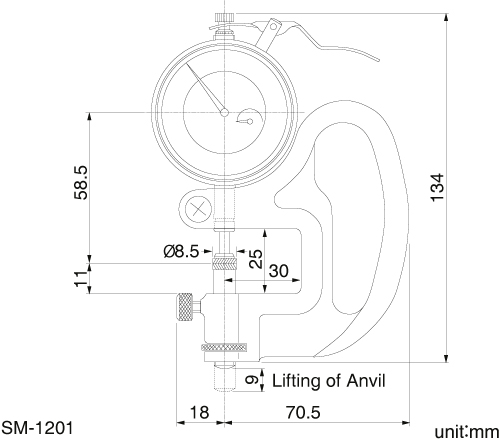

| SM-1201 | 0.001 | 10 | ±3 | 3 | 0-100-0 | 1.5 or less | φ8.5 Flat (Carbide) | φ8.5 Flat (Carbide) | 440 |
| SM-1201LS | 0.001 | 10 | ±3 | - | 0-100-0 | 1.5 or less | φ3 Ball (Carbide) | φ8.5 Flat (Carbide) | 440 |
| SM-1201LW | 0.001 | 10 | ±3 | - | 0-100-0 | 1.5 or less | φ3 Ball (Carbide) | φ3 Ball (Carbide) | 440 |

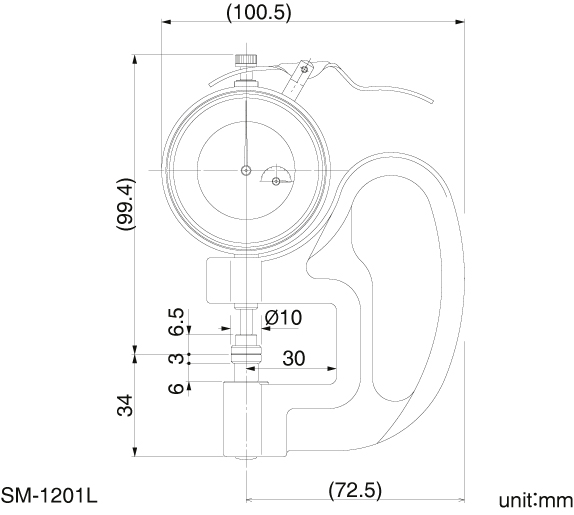

| SM-1201L | 0.001 | 1(3)* | ±3 | 3 | 0-100-200 | 1.5 or less | φ10 Flat (Ceramic) | φ10 Flat (Ceramic) | 420 |

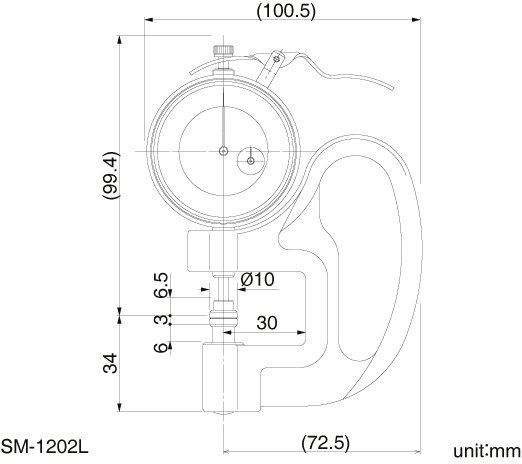

| SM-1202L | 0.001 | 2(2)* | ±3 | 3 | 0-100-200 | 1.5 or less | φ10 Flat (Ceramic) | φ10 Flat (Ceramic) | 420 |
* ( ) is a free-stroke.
