Standard Digital Thickness Gauge | TECLOCK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TEC-SMD-STD
Standard Digital Thickness Gauge
• 0.01mm and 0.001mm resolution are available.
Specifications
| Order No. | Resolution (mm) |
Measuring Range (mm) ( ) : Indicating Range*1 |
Indication Error(μm) | Parallelism (μm) |
Measuring Force(N) |
Contact Point Form / Anvil Form(mm) |
Weight (g) |

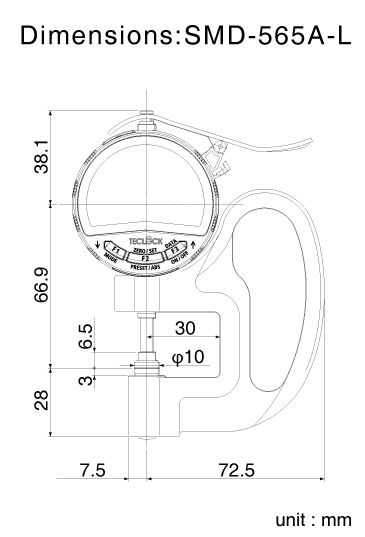

| SMD-565A-L | 0.001 | 12 | ±3 | 3 | 1.5 or less | φ10 Flat | 415 |

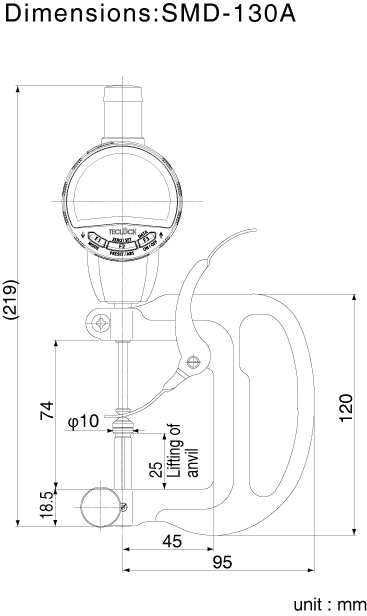

| SMD-130A | 0.01 | 50(25) | ±20 | 5 | 2.0 or less | φ10 Flat | 610 |
*1 Indicating value in ( ) is a measuring range of digital sensor.
| แบรนด์สินค้า | TECLOCK |
|---|
