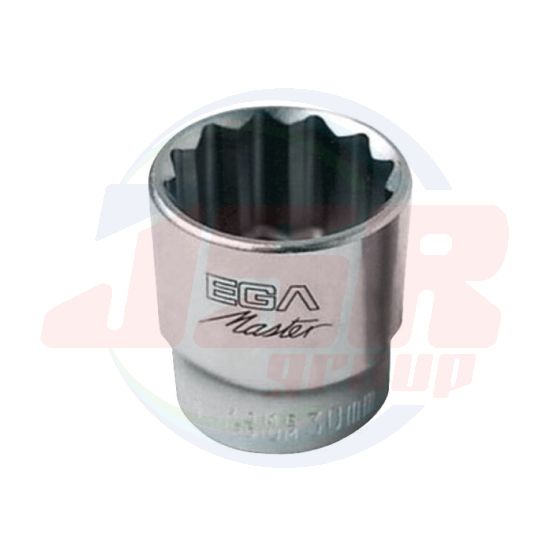

■ 12 PT. - 1/2”
| Order No. | ![]() |

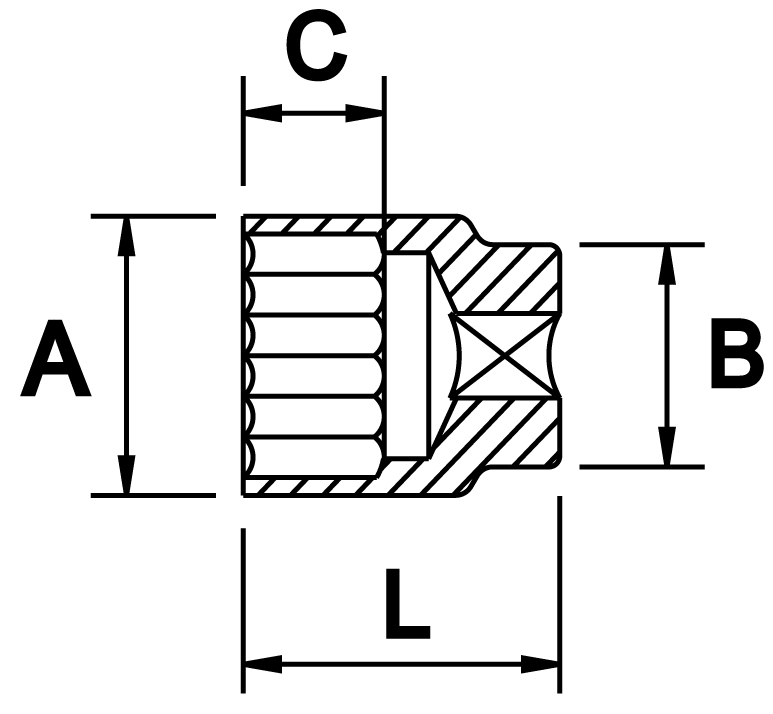

L (mm) |
A (mm) |
B (mm) |
C (mm) |
Pt | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|
| 60480 | y | 5/16 | 38 | 13 | 22 | 13 | 12 | 46 |
| 60481 | y | 3/8 | 38 | 15 | 22 | 13 | 12 | 49 |
| 60482 | y | 7/16 | 38 | 17 | 22 | 14 | 12 | 50 |
| 60483 | y | 1/2 | 38 | 19 | 22 | 14 | 12 | 55 |
| 60484 | y | 9/16 | 38 | 20 | 22 | 14 | 12 | 55 |
| 60485 | y | 19/32 | 38 | 22 | 22 | 14 | 12 | 55 |
| 60486 | y | 5/8 | 38 | 22 | 22 | 14 | 12 | 55 |
| 60479 | y | 21/32 | 38 | 24 | 22 | 14 | 12 | 65 |
| 60487 | y | 11/16 | 38 | 24 | 22 | 14 | 12 | 70 |
| 60488 | y | 3/4 | 38 | 26 | 23 | 18 | 12 | 80 |
| 60489 | y | 25/32 | 38 | 28 | 24 | 18 | 12 | 80 |
| 60490 | y | 13/16 | 38 | 28 | 25 | 18 | 12 | 85 |
| 60491 | y | 7/8 | 38 | 30 | 25 | 18 | 12 | 95 |
| 60492 | y | 15/16 | 38 | 32 | 26 | 18 | 12 | 95 |
| 60493 | y | 31/32 | 40 | 33 | 28 | 18 | 12 | 125 |
| 60494 | y | 1 | 40 | 34 | 28 | 18 | 12 | 135 |
| 60495 | y | 1.1/16 | 42 | 36 | 32 | 18 | 12 | 185 |
| 60496 | y | 1.1/8 | 42 | 38 | 32 | 19 | 12 | 185 |
| 60497 | y | 1.3/16 | 44 | 40 | 32 | 22 | 12 | 185 |
| 60498 | y | 1.1/4 | 44 | 42 | 34 | 23 | 12 | 210 |
| DIN3124 | Cr-V
x : 50% aerospatial chrome plating - 50% mirror polished chrome plating
y : 100% mirror polished plating
| แบรนด์สินค้า | EGA MASTER |
|---|
