Solid Carbide Drill for Multiple Materials - GOdrill 3D | KENNAMETAL

เป็นคนแรกที่รีวิวสินค้านี้
สินค้าหมด
SKU
GOdrill 3D
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

Features and benefits

  • General purpose SC drill for a wide range of materials.
  • Marginless design for reduced friction and heat — thus longer tool life.
  • Optimized gashing design for microdrilling ensures free flow of chips in the center of the drill.
  • Uninterrupted straight cutting lip allows no starting point for wear and enables even distribution of cutting forces for longer tool life in all materials and less chipping on cutting edge.
  • KC7325™ grade contains a double coating for broad-band applications, and a TiN top layer serves as a wear indicator for easier monitoring of small drills, which can be difficult to see.
Solid Carbide Drill for Multiple Materials - GOdrill 3D | KENNAMETAL
Solid Carbide Drill for Multiple Materials - GOdrill 3D | KENNAMETAL

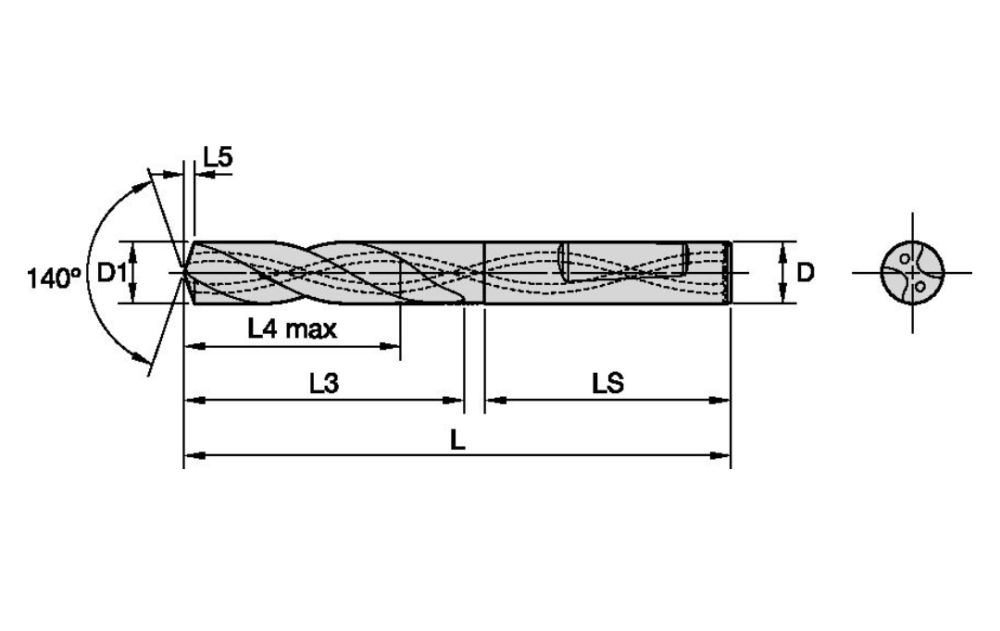

ISO Catalog Number Grade D1 L L3 L4 L5 D
B051F03000CPG KC7325 3 62 20 14 0.48 6
B051F03100CPG KC7325 3.1 62 20 14 0.5 6
B051F03300CPG KC7325 3.3 62 20 14 0.5 6
B051F03400CPG KC7325 3.4 62 20 14 0.55 6
B051F03700CPG KC7325 3.7 62 20 14 0.6 6
B051F03800CPG KC7325 3.8 66 24 17 0.62 6
B051F03900CPG KC7325 3.9 66 24 17 0.64 6
B051F04000CPG KC7325 4 66 24 17 0.66 6
B051F04100CPG KC7325 4.1 66 24 17 0.67 6
B051F04200CPG KC7325 4.2 66 24 17 0.69 6
B051F04300CPG KC7325 4.3 66 24 17 0.71 6
B051F04400CPG KC7325 4.4 66 24 17 0.73 6
B051F04500CPG KC7325 4.5 66 24 17 0.74 6
B051F04700CPG KC7325 4.7 66 24 17 0.78 6
B051F04800CPG KC7325 4.8 66 28 20 0.8 6
B051F05000CPG KC7325 5 66 28 20 0.83 6
B051F05100CPG KC7325 5.1 66 28 20 0.85 6
B051F05200CPG KC7325 5.2 66 28 20 0.86 6
B051F05300CPG KC7325 5.3 66 28 20 0.88 6
B051F05400CPG KC7325 5.4 66 28 20 0.9 6
B051F05500CPG KC7325 5.5 66 28 20 0.92 6
B051F05600CPG KC7325 5.6 66 28 20 0.93 6
B051F05700CPG KC7325 5.7 66 28 20 0.95 6
B051F05800CPG KC7325 5.8 66 28 20 0.97 6
B051F05900CPG KC7325 5.9 66 28 20 0.99 6
B051F06000CPG KC7325 6 66 28 20 1 6
B051F06100CPG KC7325 6.1 79 34 24 1.02 8
B051F06200CPG KC7325 6.2 79 34 24 1.04 8
B051F06300CPG KC7325 6.3 79 34 24 1.06 8
B051F06500CPG KC7325 6.5 79 34 24 1.09 8
B051F06600CPG KC7325 6.6 79 34 24 1.11 8
B051F06700CPG KC7325 6.7 79 34 24 1.13 8
B051F06800CPG KC7325 6.8 79 34 24 1.14 8
B051F06900CPG KC7325 6.9 79 34 24 1.16 8
B051F07000CPG KC7325 7 79 34 24 1.18 8
B051F07100CPG KC7325 7.1 79 34 24 1.2 8
B051F07200CPG KC7325 7.2 79 41 24 1.21 8
B051F07300CPG KC7325 7.3 79 41 29 1.23 8
B051F07400CPG KC7325 7.4 79 41 29 1.25 8
B051F07500CPG KC7325 7.5 79 41 29 1.27 8
B051F07600CPG KC7325 7.6 79 41 29 1.28 8
B051F07700CPG KC7325 7.7 79 41 29 1.3 8
B051F07800CPG KC7325 7.8 79 41 29 1.32 8
B051F07900CPG KC7325 7.9 79 41 29 1.34 8
B051F08000CPG KC7325 8 79 41 29 1.35 8
B051F08100CPG KC7325 8.1 89 47 35 1.37 10
B051F08200CPG KC7325 8.2 89 47 35 1.39 10
B051F08300CPG KC7325 8.3 89 47 35 1.41 10
B051F08400CPG KC7325 8.4 89 47 35 1.43 10
B051F08500CPG KC7325 8.5 89 47 35 1.44 10
B051F08600CPG KC7325 8.6 89 47 35 1.46 10
B051F08700CPG KC7325 8.7 89 47 35 1.48 10
B051F08800CPG KC7325 8.8 89 47 35 1.5 10
B051F08900CPG KC7325 8.9 89 47 35 1.51 10
B051F09000CPG KC7325 9 89 47 35 1.53 10
B051F09100CPG KC7325 9.1 89 47 35 1.55 10
B051F09300CPG KC7325 9.3 89 47 35 1.58 10
B051F09400CPG KC7325 9.4 89 47 35 1.6 10
B051F09500CPG KC7325 9.5 89 47 35 1.62 10
B051F09700CPG KC7325 9.7 89 47 35 1.65 10
B051F09900CPG KC7325 9.9 89 47 35 1.69 10
B051F10000CPG KC7325 10 89 47 35 1.71 10
B051F10200CPG KC7325 10.2 102  55 40 1.74 12
B051F10300CPG KC7325 10.3 102  55 40 1.76 12
B051F10400CPG KC7325 10.4 102  55 40 1.78  12
B051F10500CPG KC7325 10.5 102  55 40 1.8 12
B051F10600CPG KC7325 10.6 102  55 40 1.81 12
B051F10800CPG KC7325 10.8 102  55 40 1.85 12
B051F10900CPG KC7325 10.9 102  55 40 1.85 12
B051F11000CPG KC7325 11 102  55 40 1.88 12
B051F11200CPG KC7325 11.2 102  55 40 1.92 12
B051F11400CPG KC7325 11.4 102  55 40 1.95 12
B051F11500CPG KC7325 11.5 102  55 40 1.97 12
B051F11800CPG KC7325 11.8 102  55 40 2.02 12
B051F11900CPG KC7325 11.9 107  55 40 2.04 12
B051F12000CPG KC7325 12 107  55 40 2.06 14
B051F12100CPG KC7325 12.1 107  60 43 2.08  14
B051F12200CPG KC7325 12.2 107  60 43 2.1 14
B051F12300CPG KC7325 12.3 107  60 43 2.11 14
B051F12400CPG KC7325 12.4 107  60 43 2.13 14
B051F12500CPG KC7325 12.5 107 60 43 2.15 14
B051F12700CPG KC7325 12.7 107 60 43 2.18 14
B051F12900CPG KC7325 12.9 107 60 43 2.22 14
B051F13000CPG KC7325 13 107 60 43 2.24 14
B051F13300CPG KC7325 13.3 107 60 43 2.29 14
B051F13500CPG KC7325 13.5 107 60 43 2.33 14
B051F13600CPG KC7325 13.6 107 60 43 2.34 14
B051F13900CPG KC7325 13.9 107 60 43 2.4 14
B051F14000CPG KC7325 14 107 60 43 2.41 14
B051F14100CPG KC7325 14.1 115 65 45 2.43 16
B051F14200CPG KC7325 14.2 115 65 45 2.45 16
B051F14300CPG KC7325 14.3 115 65 45 2.47 16
B051F14500CPG KC7325 14.5 115 65 45 2.5 16
B051F14800CPG KC7325 14.8 115 65 45 2.56 16
B051F15000CPG KC7325 15 115 65 45 2.59 16
B051F15100CPG KC7325 15.1 115 65 45 2.61 16
B051F15200CPG KC7325 15.2 115 65 45 2.63 16
B051F15600CPG KC7325 15.6 115 65 45 2.7 16
B051F15800CPG KC7325 15.8 115 65 45 2.73  16
B051F16000CPG KC7325 16 115 65 45 2.77 16
B051F16100CPG KC7325 16.1 123  73 51 2.79 18
B051F16200CPG KC7325 16.2 123  73 51 2.8 18
B051F16500CPG KC7325 16.5 123  73 51 2.86 18
B051F16800CPG KC7325 16.8 123  73 51 2.91 18
B051F17000CPG KC7325 17 123  73 51 2.95 18
B051F17500CPG KC7325 17.5 123  73 51 3.04  18
B051F17800CPG KC7325 17.8 123  73 51 3.09 18
B051F18000CPG KC7325 18 123  73 51 3.12 18
B051F18300CPG KC7325 18.3 131 79 55 3.18 20
B051F18500CPG KC7325 18.5 131 79 55 3.21 20
B051F18700CPG KC7325 18.7 131 79 55 3.25 20
B051F18800CPG KC7325 18.8 131 79 55 3.27 20
B051F19000CPG KC7325 19 131 79 55 3.3 20
B051F19500CPG KC7325 19.5 131 79 55 3.39 20
B051F20000CPG KC7325 20 131 79 55 3.48 20
More Information
ข้อมูลเพิ่มเติม
แบรนด์สินค้า KENNAMETAL
Dimension
