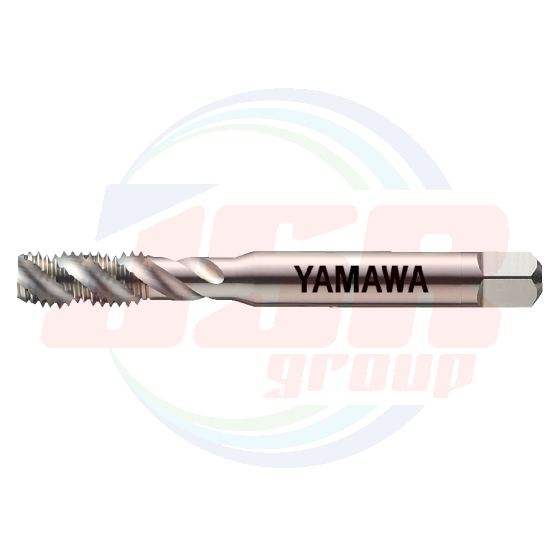

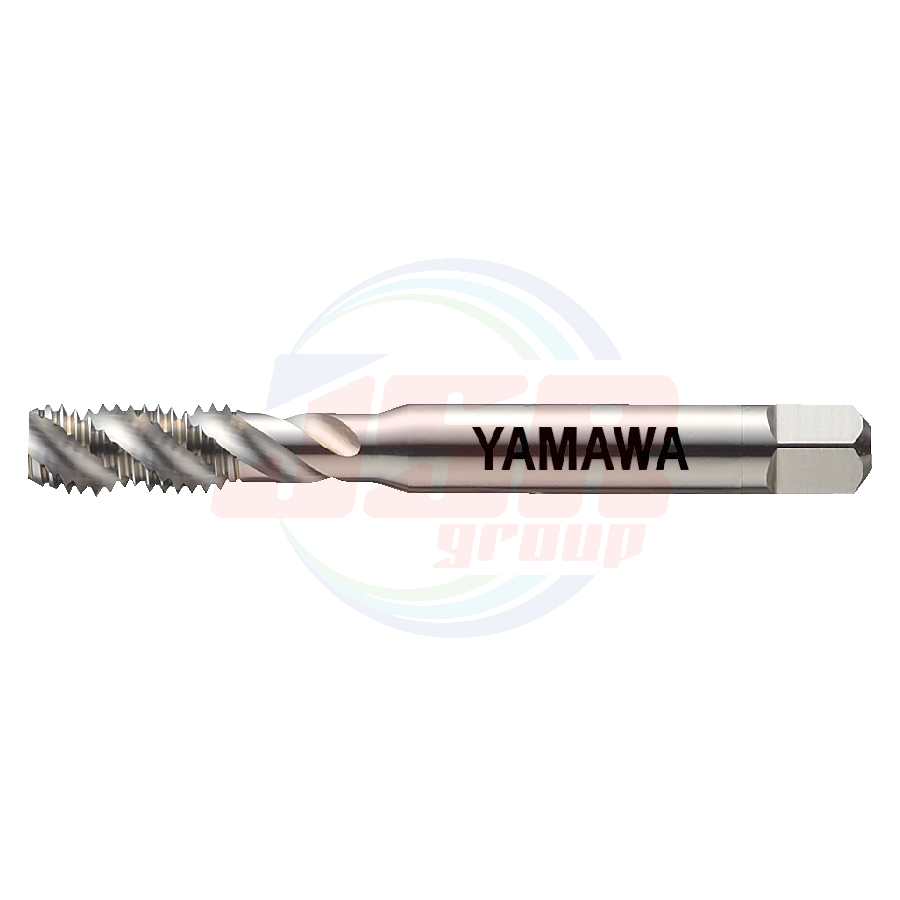

SP-1.5P | Spiral Fluted Taps 1.5P| YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 698.71
พร้อมส่ง
SKU
YAM-SP-1.5P
- The +SP is a spiral flute tap for tapping blind holes. It is most suitable for the synchronous feed of CNC machining centers in the middle to high speed range.
| File PDF |
Specification
Tapping Speeds depending on Materials
|

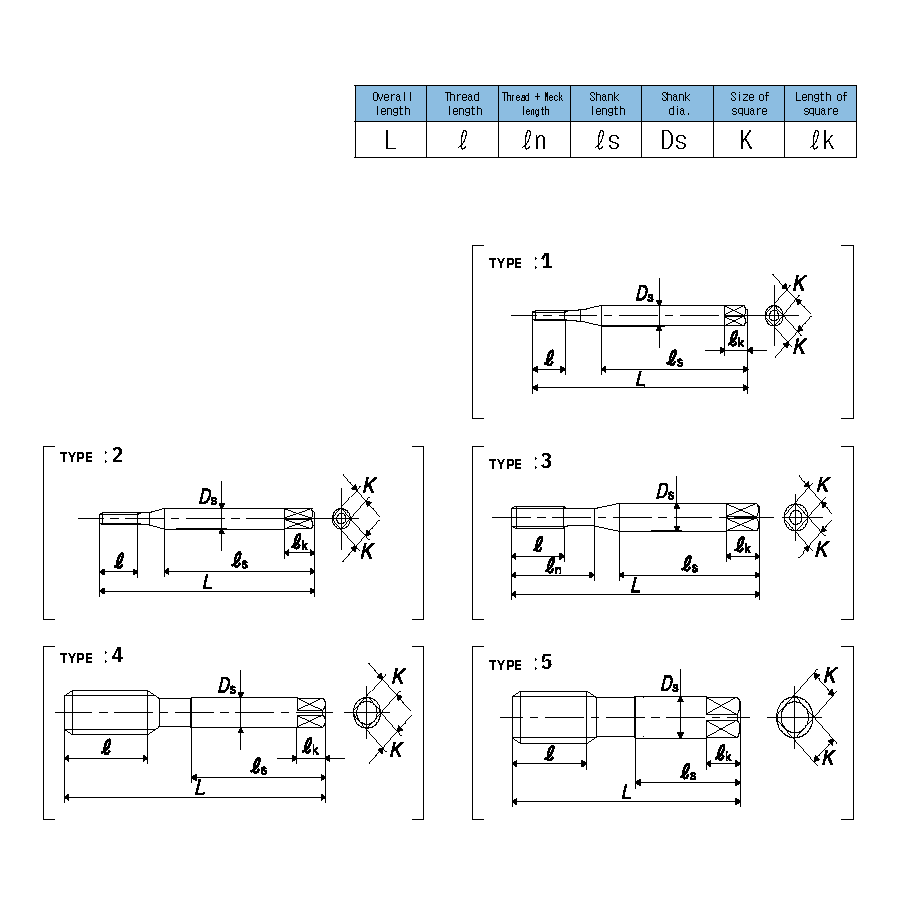

Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M1.2×0.25 |
P1 |
SY1.2BPNEBA |
1.5P |
36 |
4.5 |
- |
24 |
3 |
2.5 |
5 |
2 |
1 |
|
M1.4×0.3 |
P1 |
SY1.4CPNEBA |
1.5P |
36 |
5.4 |
- |
24 |
3 |
2.5 |
5 |
2 |
1 |
|
M1.6×0.35 |
P1 |
SY1.6DPNEBA |
1.5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
M1.7×0.35 |
P1 |
SY1.7DPNEBA |
1.5P |
36 |
6.3 |
- |
24 |
3 |
2.5 |
5 |
2 |
2 |
|
M1.8×0.35 |
P1 |
SY1.8DPNEBA |
1.5P |
42 |
6.3 |
- |
27 |
3 |
2.5 |
5 |
2 |
2 |
|
M2×0.4 |
P1 |
SY2.0EPNEBA |
1.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
3 |
|
M2.3×0.4 |
P1 |
SY2.3EPNEBA |
1.5P |
42 |
7.2 |
12 |
27 |
3 |
2.5 |
5 |
2 |
3 |
|
M2.5×0.45 |
P1 |
SY2.5FPNEBA |
1.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
3 |
|
M2.6×0.45 |
P1 |
SY2.6FPNEBA |
1.5P |
46 |
8.1 |
14 |
29 |
3 |
2.5 |
5 |
2 |
3 |
|
M3×0.5 |
P1 |
SY3.0GPNEBA |
1.5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
3 |
|
M3.5×0.6 |
P1 |
SY3.5HPNEBA |
1.5P |
52 |
11 |
16 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M4×0.7 |
P2 |
SY4.0IQNEBA |
1.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
M5×0.8 |
P2 |
SY5.0KQNEBA |
1.5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
3 |
|
M6×1 |
P2 |
SY6.0MQNEBA |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
M8×1.25 |
P2 |
SY8.0NQNEBA |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M8×1 |
P2 |
SY8.0MQNEBA |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
M10×1.5 |
P2 |
SY010OQNEBA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1.25 |
P2 |
SY010NQNEBA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M10×1 |
P2 |
SY010MQNEBA |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
M12×1.75 |
P2 |
SY012PQNEBA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1.5 |
P2 |
SY012OQNEBA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1.25 |
P2 |
SY012NQNEBA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M12×1 |
P2 |
SY012MQNEBA |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
M14×2 |
P2 |
SY014QQNEBA |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M14×1.5 |
P2 |
SY014OQNEBA |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
M16×2 |
P2 |
SY016QQNEBA |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
M16×1.5 |
P2 |
SY016OQNEBA |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
M18×2.5 |
P3 |
SY018RRNEBA |
1.5P |
100 |
33 |
- |
51 |
14 |
11 |
14 |
4 |
4 |
|
M20×2.5 |
P3 |
SY020RRNEBA |
1.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
5 |
| แบรนด์สินค้า | YAMAWA |
|---|
