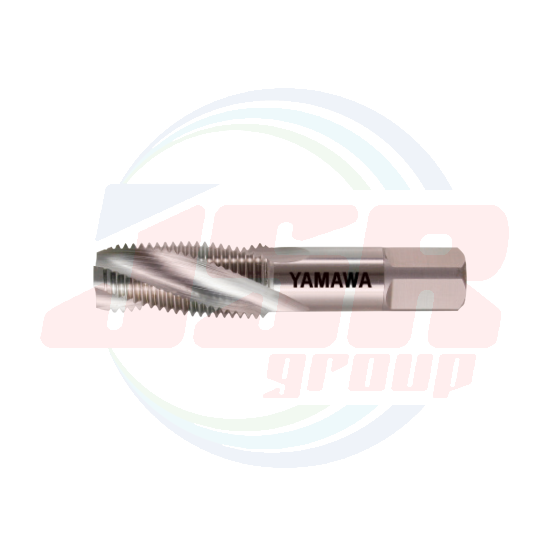

SP-NPT (American Pipe Threads)

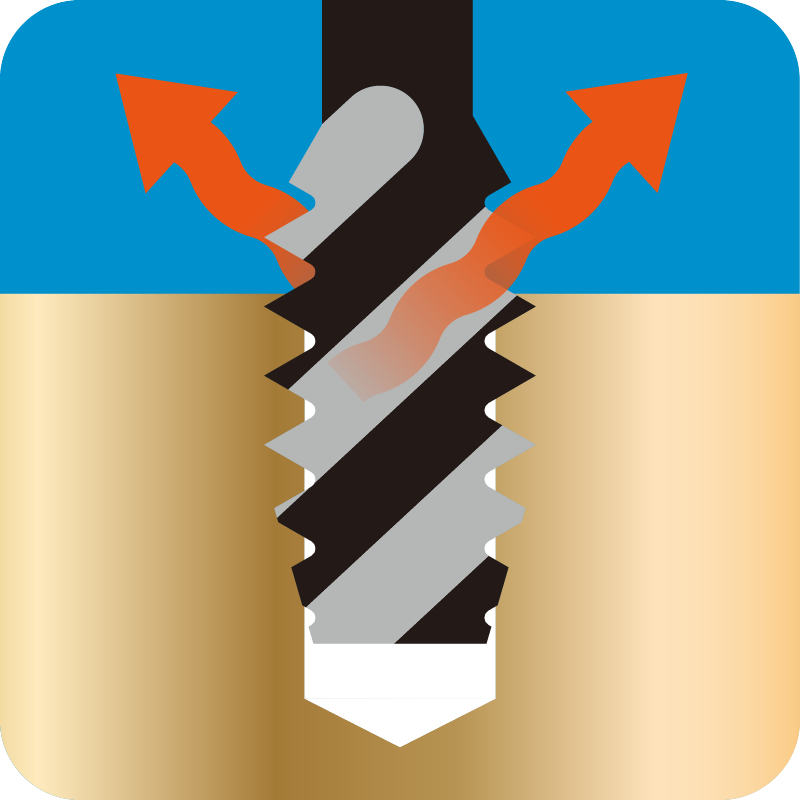

- The SP-NPT is a spiral flute tap for the American tapered pipe threads and is used for products whose main purpose is the tightness of threaded parts in connection with pipe parts etc.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

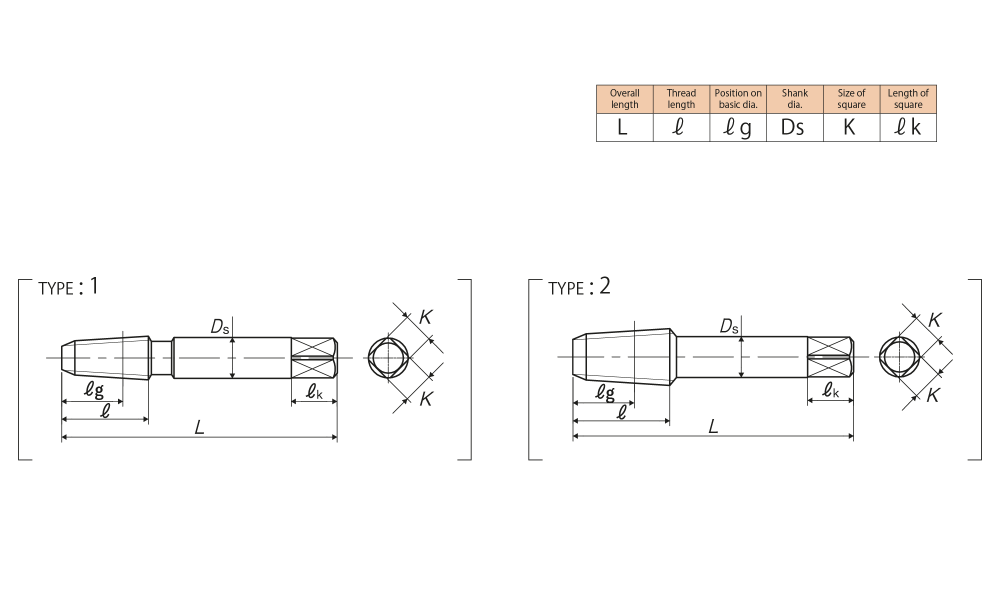

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For American Pipe Threads |
||||||||||||
|
1/16-27 NPT |
ANSI G |
SNPT01L |
2.5P |
7.770 |
54 |
17 |
12 |
8 |
6 |
9 |
3 |
1 |
|
1/8-27 NPT |
ANSI G |
SNPT02L |
2.5P |
10.117 |
55 |
19 |
12.05 |
8 |
6 |
9 |
3 |
2 |
|
1/4-18 NPT |
ANSI G |
SNPT04O |
2.5P |
13.426 |
62 |
28 |
17.45 |
11 |
9 |
12 |
3 |
2 |
|
3/8-18 NPT |
ANSI G |
SNPT06O |
2.5P |
16.866 |
65 |
28 |
17.65 |
14 |
11 |
14 |
3 |
2 |
|
1/2-14 NPT |
ANSI G |
SNPT08Q |
2.5P |
20.980 |
80 |
35 |
22.85 |
18 |
14 |
17 |
4 |
2 |
|
3/4-14 NPT |
ANSI G |
SNPT12Q |
2.5P |
26.325 |
85 |
35 |
22.95 |
23 |
17 |
20 |
4 |
2 |
|
1 -11 1/2 NPT |
ANSI G |
SNPT16T |
2.5P |
32.934 |
95 |
45 |
27.4 |
26 |
21 |
24 |
4 |
2 |
