+SP| Plus Series Spiral Fluted Taps | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 417.30
พร้อมส่ง
SKU
YAM-+SP
- The +SP is a spiral flute tap for tapping blind holes. It is most suitable for the synchronous feed of CNC machining centers in the middle to high speed range.
| File PDF |
Specification
Tapping Speeds depending on Materials
Segment：1C

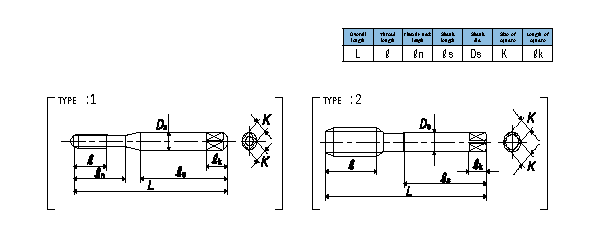

| Size | Class | Code | Chamfer | L | ℓ | ℓn | ℓs | Ds | K | ℓk | No.of | TYPE |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | flutes | |||||
| For Metric Threads | ||||||||||||
| M2×0.4 | P1 | SNPP2.0E | 2.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 |
| M2.2×0.45 | P1 | SNPP2.2F | 2.5P | 42 | 8.1 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 |
| M2.3×0.4 | P1 | SNPP2.3E | 2.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 1 |
| M2.5×0.45 | P1 | SNPP2.5F | 2.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 1 |
| M2.6×0.45 | P1 | SNPP2.6F | 2.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 1 |
| M3×0.5 | P1 | SNPP3.0G | 2.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 1 |
| M3.5×0.6 | P1 | SNPP3.5H | 2.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 1 |
| M4×0.7 | P2 | SNPQ4.0I | 2.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 1 |
| M5×0.8 | P2 | SNPQ5.0K | 2.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 1 |
| M6×1 | P2 | SNPQ6.0M | 2.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 1 |
| M8×1.25 | P2 | SNPQ8.0N | 2.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 2 |
| M10×1.5 | P2 | SNPQ010O | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 |
| M10×1.25 | P2 | SNPQ010N | 2.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 2 |
| M12×1.75 | P2 | SNPQ012P | 2.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 |
| M12×1.25 | P2 | SNPQ012N | 2.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 2 |
| แบรนด์สินค้า | YAMAWA |
|---|
