SP-PS (Pipe Threads) | Long Shank Hand Taps for Parallel Pipe Threads | YAMAWA
ราคาต่ำสุด
THB 0.00
ราคาปรกติ
THB 543.93
พร้อมส่ง
SKU
SP-PS (Pipe Threads)

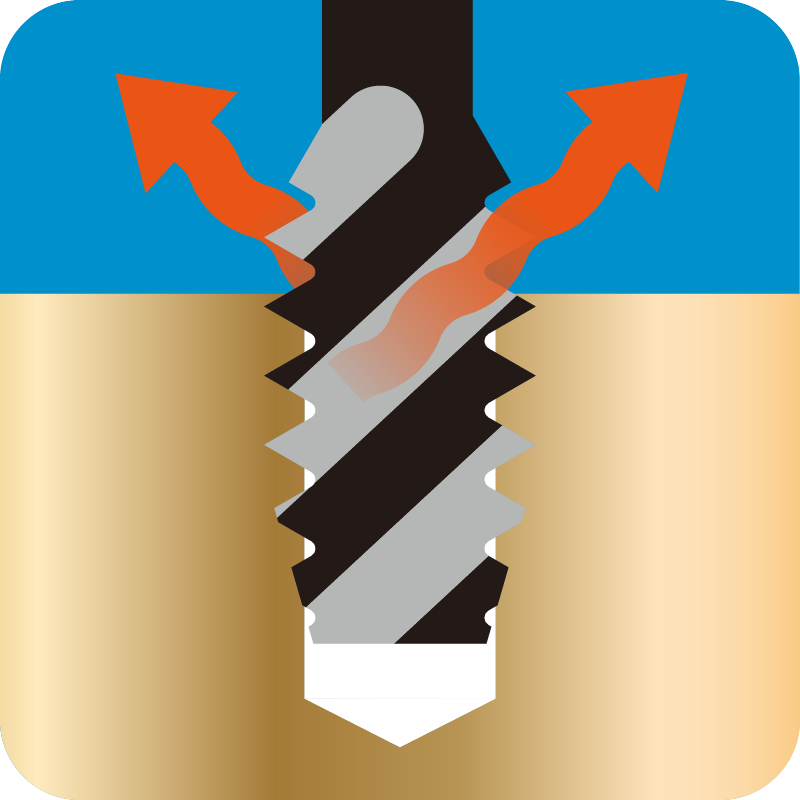

- The SP-PS is a spiral flute tap for parallel pipe threads and is used for products whose main purpose is the tightness of threaded parts in connection with pipe parts etc. The PS internal thread is used for fitting with PT external thread.

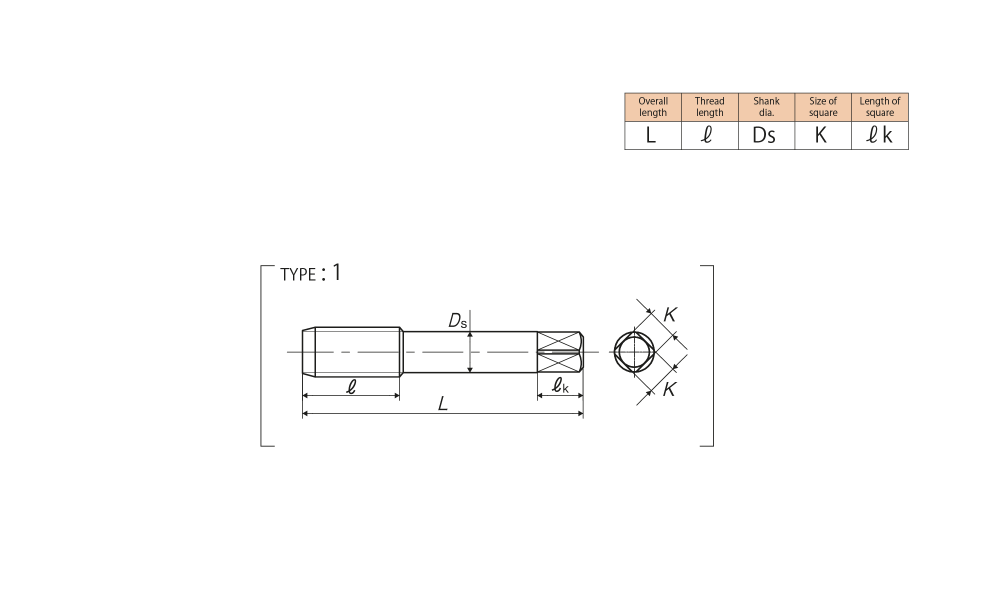

Specification

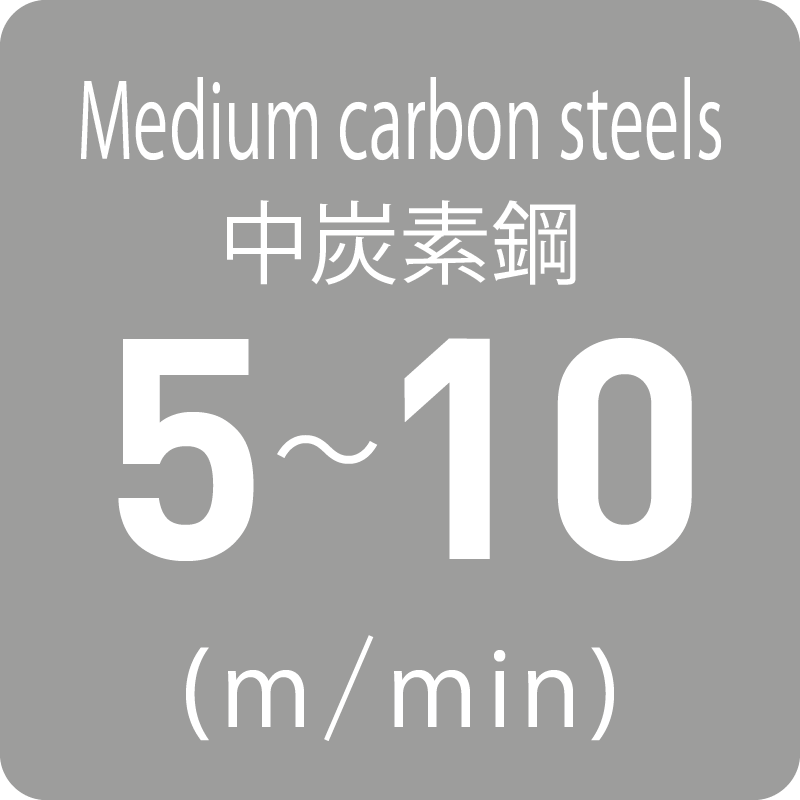

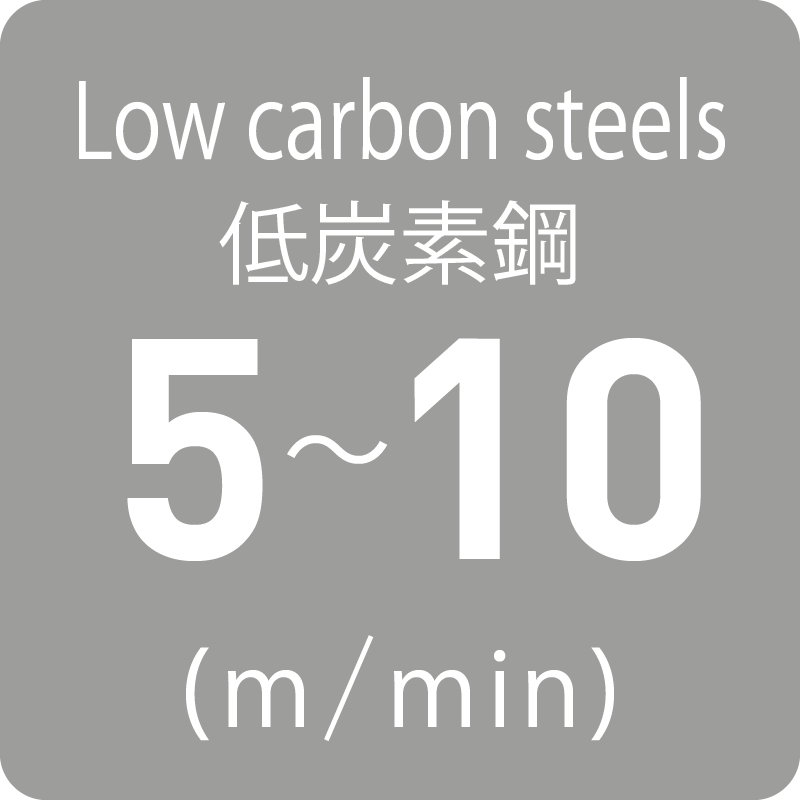

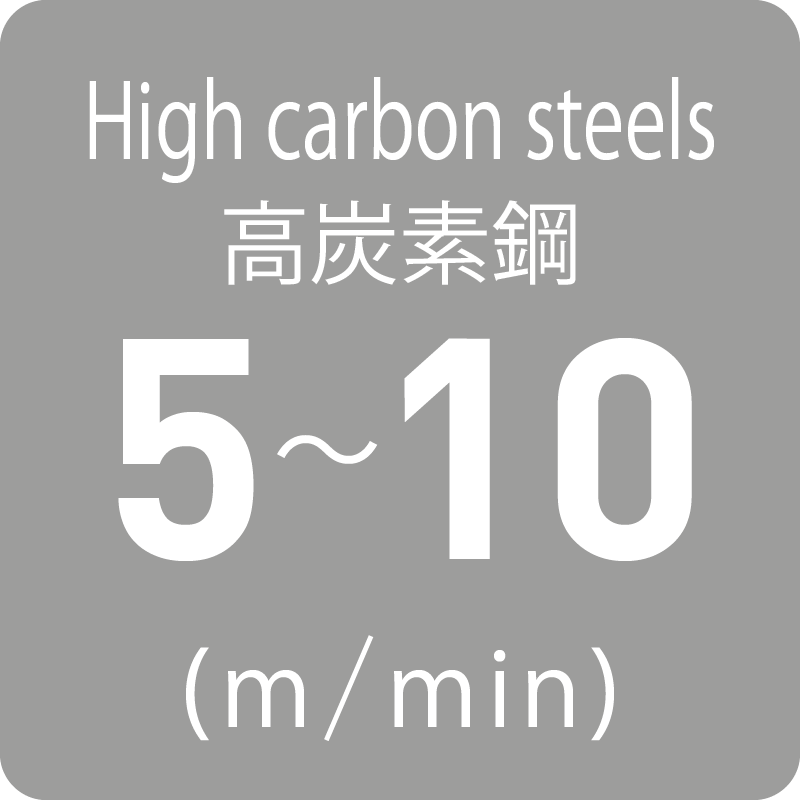

Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||
|
PS 1/8-28 |
Ⅱ |
SH2P02K |
2.5P |
9.728 |
55 |
19 |
8 |
6 |
9 |
3 |
1 |
|
PS 1/4-19 |
Ⅱ |
SH2P04- |
2.5P |
13.157 |
62 |
28 |
11 |
9 |
12 |
3 |
1 |
|
PS 3/8-19 |
Ⅱ |
SH2P06- |
2.5P |
16.662 |
65 |
28 |
14 |
11 |
14 |
3 |
1 |
|
PS 1/2-14 |
Ⅱ |
SH2P08Q |
2.5P |
20.955 |
80 |
35 |
18 |
14 |
17 |
4 |
1 |
|
PS 3/4-14 |
Ⅱ |
SH2P12Q |
2.5P |
26.441 |
85 |
35 |
23 |
17 |
20 |
4 |
1 |
|
PS 1 -11 |
Ⅱ |
SH2P16U |
2.5P |
33.249 |
95 |
45 |
26 |
21 |
24 |
4 |
1 |
|
PS 1 1/4-11 |
Ⅱ |
SH2P20U |
2.5P |
41.910 |
105 |
45 |
32 |
26 |
30 |
4 |
1 |
|
PS 1 1/2-11 |
Ⅱ |
SH2P24U |
2.5P |
47.803 |
110 |
45 |
38 |
29 |
32 |
4 |
1 |
|
PS 2 -11 |
Ⅱ |
SH2P32U |
2.5P |
59.614 |
120 |
50 |
46 |
35 |
38 |
4 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
