SP-PT (Pipe Threads)

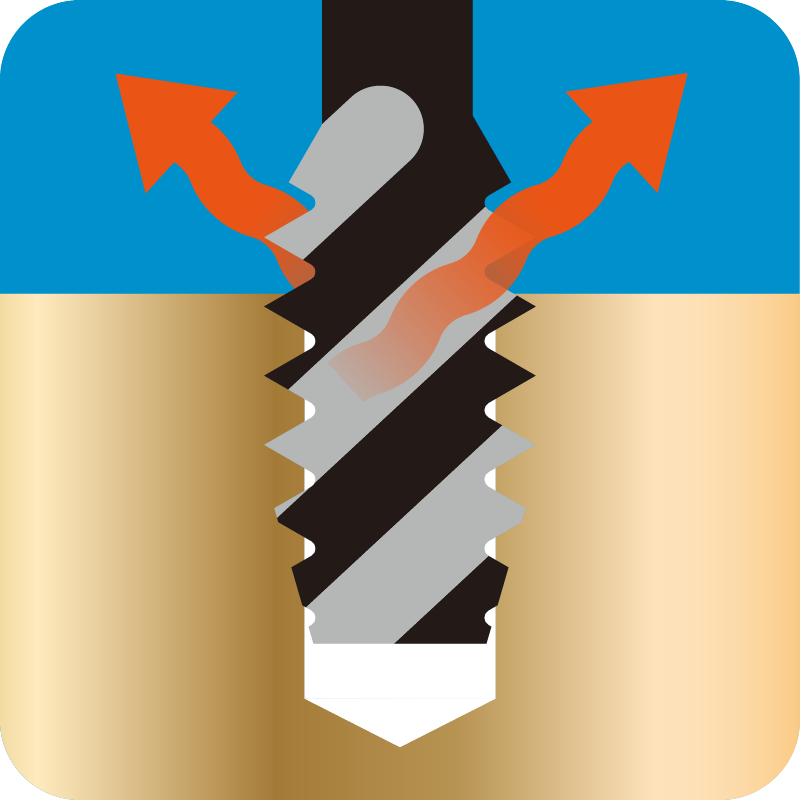

- The SP-PT is a spiral flute tapered pipe tap and is used for thread products whose main purpose is the tightness of threaded parts in connection with pipe parts etc.

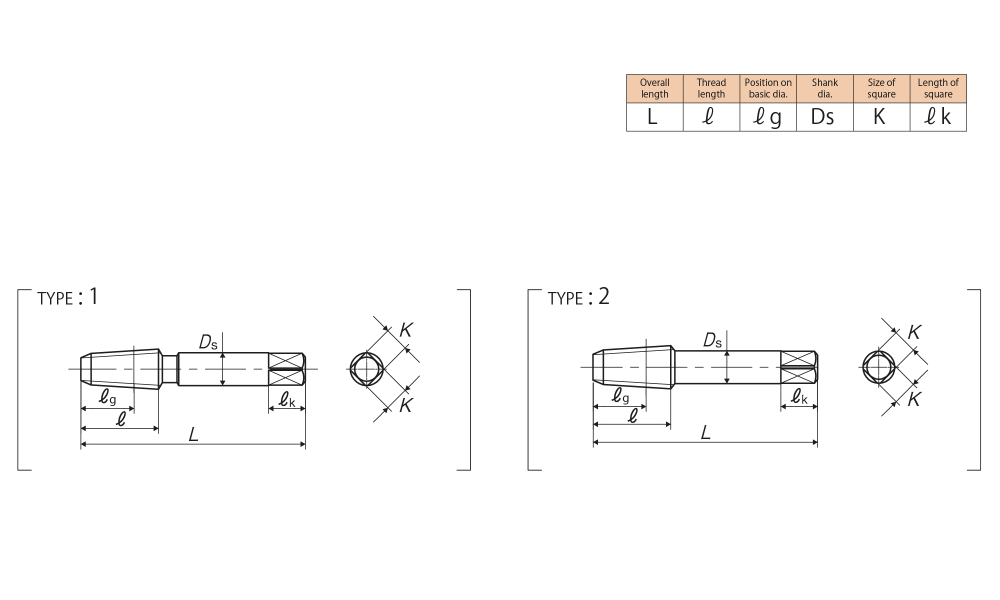

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/16-28 |
Ⅱ |
SH2T01K-8 |
2.5P |
7.723 |
55 |
19 |
13 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SH2T02K |
2.5P |
9.728 |
55 |
19 |
13 |
8 |
6 |
9 |
3 |
2 |
|
PT 1/4-19 |
Ⅱ |
SH2T04- |
2.5P |
13.157 |
62 |
28 |
21 |
11 |
9 |
12 |
3 |
2 |
|
PT 3/8-19 |
Ⅱ |
SH2T06- |
2.5P |
16.662 |
65 |
28 |
21 |
14 |
11 |
14 |
3 |
2 |
|
PT 1/2-14 |
Ⅱ |
SH2T08Q |
2.5P |
20.955 |
80 |
35 |
25 |
18 |
14 |
17 |
4 |
2 |
|
PT 3/4-14 |
Ⅱ |
SH2T12Q |
2.5P |
26.441 |
85 |
35 |
25 |
23 |
17 |
20 |
4 |
2 |
|
PT 1 -11 |
Ⅱ |
SH2T16U |
2.5P |
33.249 |
95 |
45 |
32 |
26 |
21 |
24 |
4 |
2 |
|
PT 1 1/4-11 |
Ⅱ |
SH2T20U |
2.5P |
41.910 |
105 |
45 |
32 |
32 |
26 |
30 |
4 |
2 |
|
PT 1 1/2-11 |
Ⅱ |
SH2T24U |
2.5P |
47.803 |
110 |
45 |
32 |
38 |
29 |
32 |
4 |
2 |
|
PT 2 -11 |
Ⅱ |
SH2T32U |
2.5P |
59.614 |
120 |
50 |
35 |
46 |
35 |
38 |
4 |
2 |
