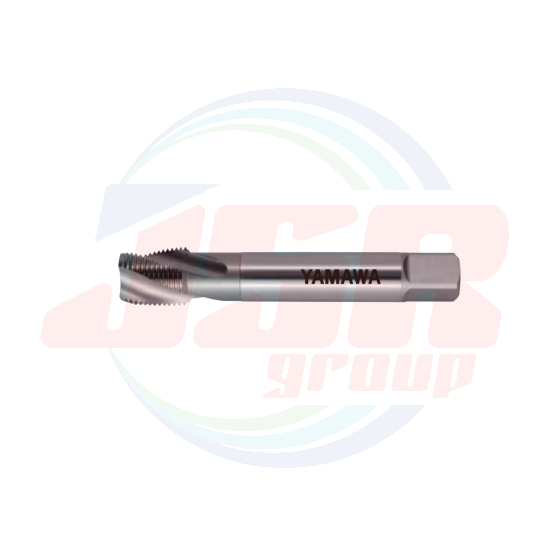

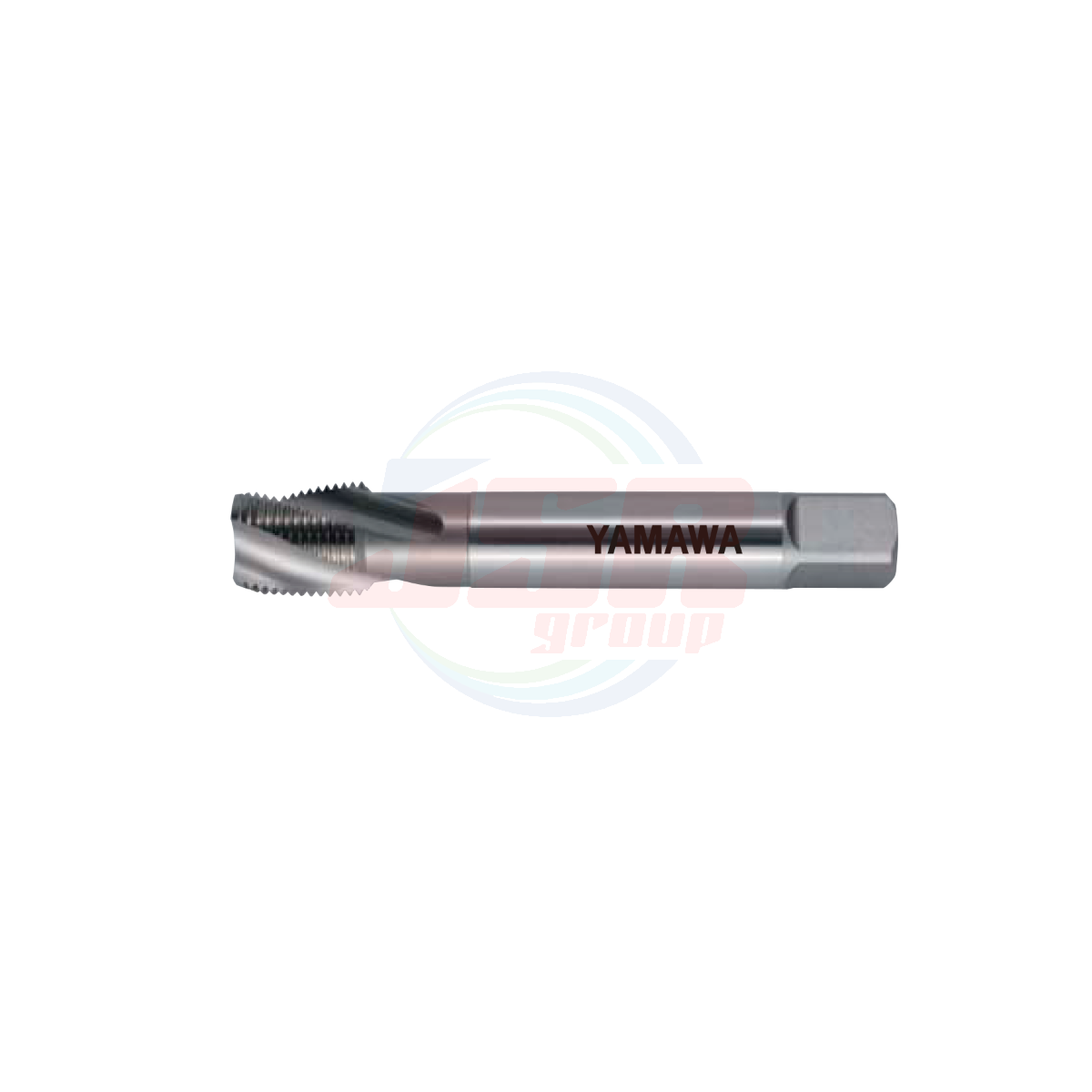

SP-PT-X 1/16-28 (SHX2T01K-8) | X Series Spiral Fluted Taps for Taper Pipe Threads Short (ℓg) Type | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 740.19
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
SHX2T01K-8
QTY:
10
- SP-PT-X spiral fluted tap, adopting new blank, ensures properly long projection length of the tool. Having short thread length, this tap is suitable for tapping of such machine components as have the limit in their thickness.
Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||||
|
PT 1/16-28 |
Ⅱ |
SHX2T01K-8 |
2.5P |
7.723 |
75 |
13.5 |
10.5 |
47 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SHX2T02K |
2.5P |
9.728 |
75 |
13.5 |
10.5 |
48 |
8 |
6 |
9 |
3 |
2 |
|
PT 1/4-19 |
Ⅱ |
SHX2T04- |
2.5P |
13.157 |
85 |
16.5 |
12.5 |
54 |
11 |
9 |
12 |
3 |
2 |
|
PT 3/8-19 |
Ⅱ |
SHX2T06- |
2.5P |
16.662 |
95 |
18 |
14 |
60 |
14 |
11 |
14 |
3 |
2 |
|
PT 1/2-14 |
Ⅱ |
SHX2T08Q |
2.5P |
20.955 |
105 |
22.5 |
17 |
64 |
18 |
14 |
17 |
4 |
2 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | PT 1/16-28 (SHX2T01K-8) |
| Model | SP-PT-X |
| Size | 1/16-28 |
| Class | Ⅱ |
| Chamfer | 2.5P |
| Overall length (L) | 75 |
| Thread length (ℓ) | 13.5 |
| Shank length (ℓs) | 47 |
| Shank dia. (Ds) | 8 |
| Size of Square (K) | 6 |
| Length of square (ℓk) | 9 |
