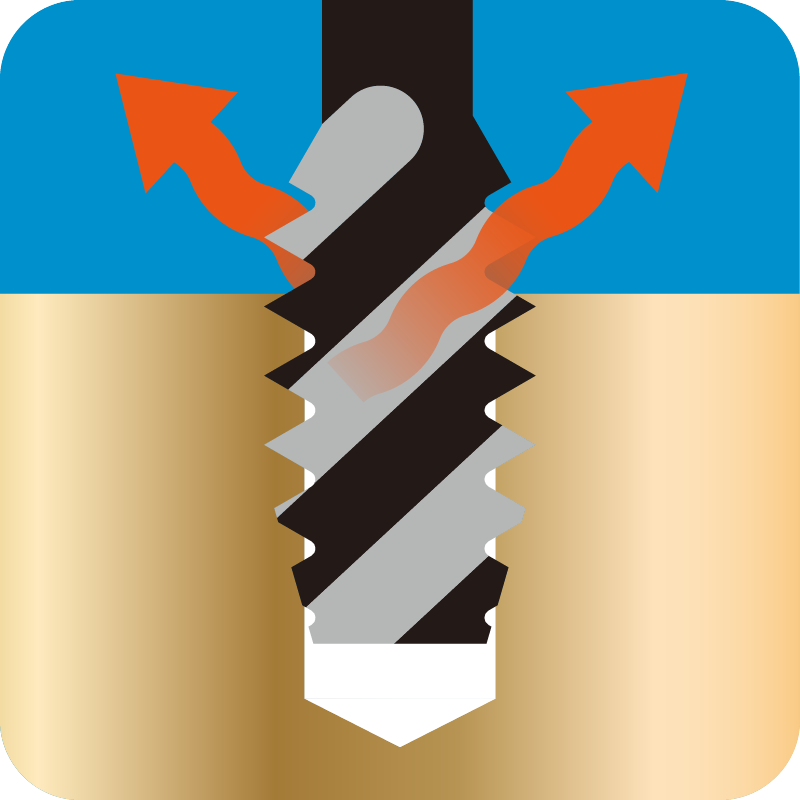

- SP-PT-X spiral fluted tap, adopting new blank, ensures properly long projection length of the tool. Having short thread length, this tap is suitable for tapping of such machine components as have the limit in their thickness.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

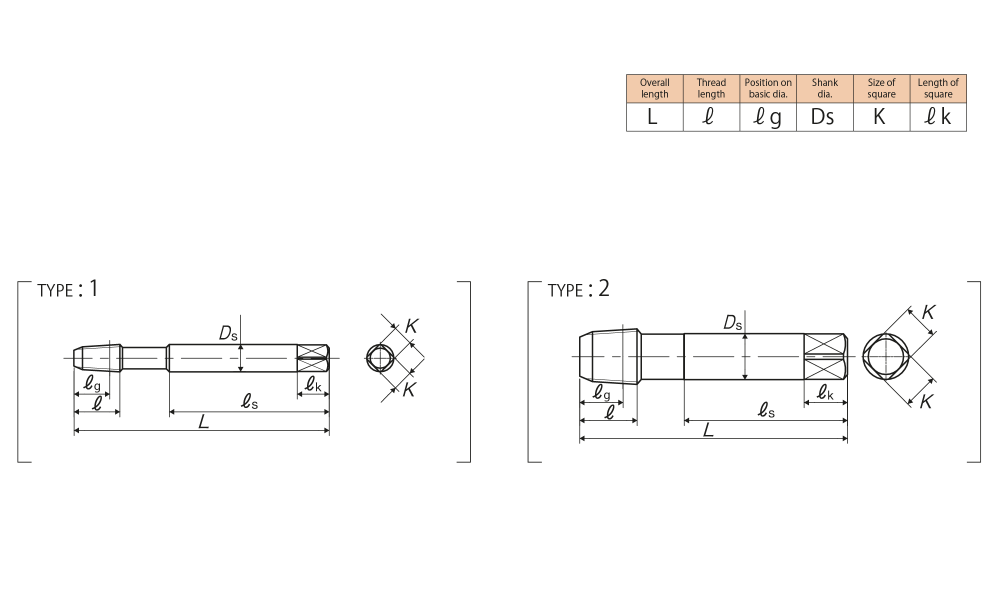

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
|||||||||||||
|
PT 1/16-28 |
Ⅱ |
SHX2T01K-8 |
2.5P |
7.723 |
75 |
13.5 |
10.5 |
47 |
8 |
6 |
9 |
3 |
1 |
|
PT 1/8-28 |
Ⅱ |
SHX2T02K |
2.5P |
9.728 |
75 |
13.5 |
10.5 |
48 |
8 |
6 |
9 |
3 |
2 |
|
PT 1/4-19 |
Ⅱ |
SHX2T04- |
2.5P |
13.157 |
85 |
16.5 |
12.5 |
54 |
11 |
9 |
12 |
3 |
2 |
|
PT 3/8-19 |
Ⅱ |
SHX2T06- |
2.5P |
16.662 |
95 |
18 |
14 |
60 |
14 |
11 |
14 |
3 |
2 |
|
PT 1/2-14 |
Ⅱ |
SHX2T08Q |
2.5P |
20.955 |
105 |
22.5 |
17 |
64 |
18 |
14 |
17 |
4 |
2 |
