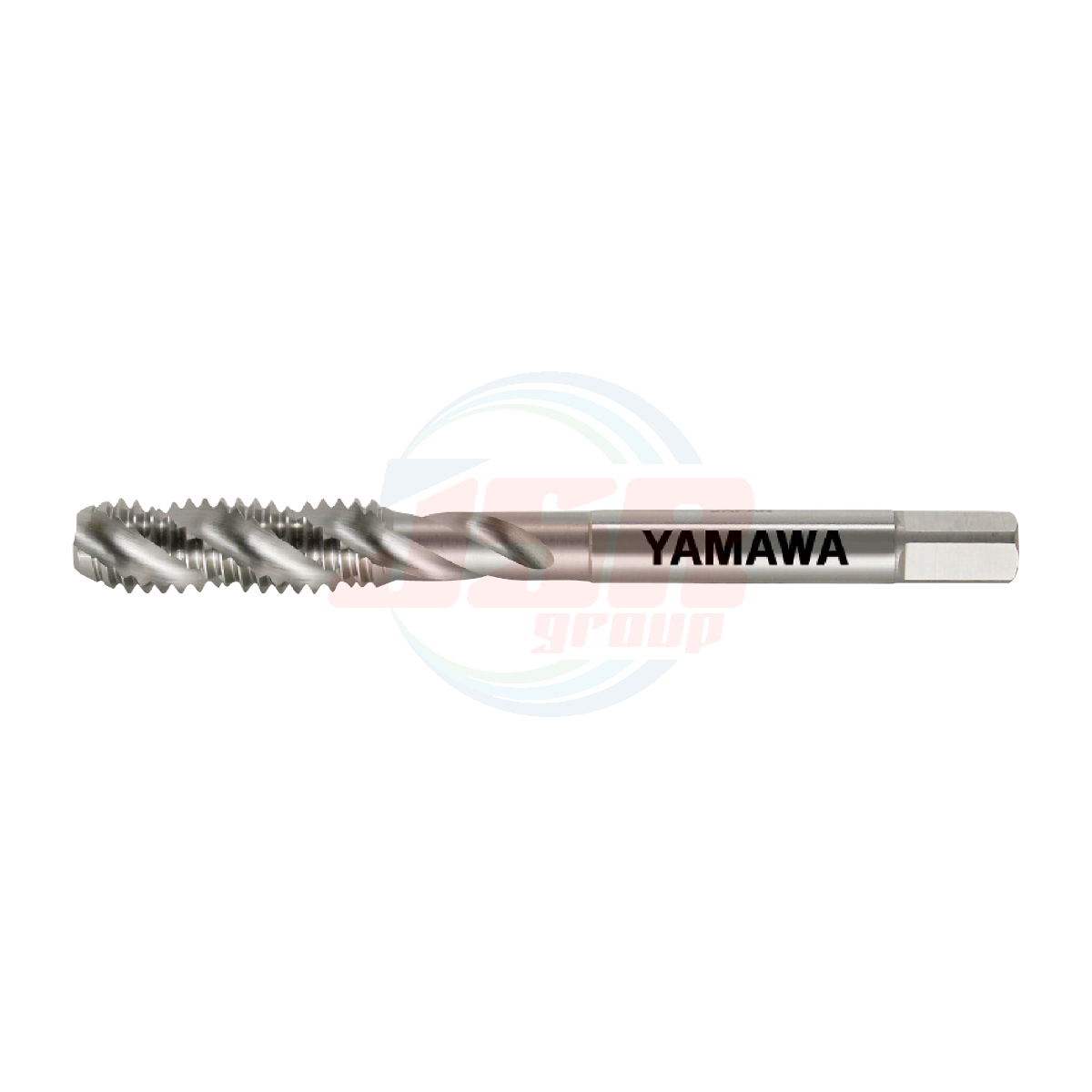

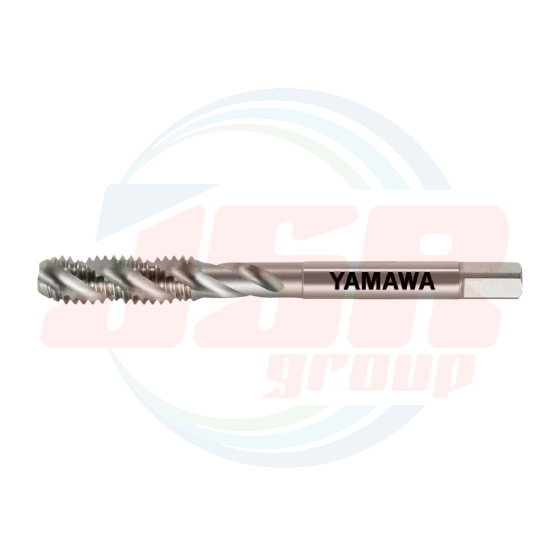

RLS-HT3.4x0.5x28° (TY3.4G0LEB) | Spiral Fluted Taps for Tripod Threads | YAMAWA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,660.75
พร้อมส่ง
SKU
TY3.4G0LEB
- Tap for the screws for installing camera release.
Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Camera Release Threads |
||||||||||
|
3.4×0.5×28ﾟ |
TY3.4G0LEB |
- |
52 |
5.25 |
4.15 |
4 |
3 |
7 |
3 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 3.4×0.5×28° (TY3.4G0LEB) |
| Model | RLS-HT |
| Size | 3.4×0.5×28° |
| Chamfer | - |
| Overall length (L) | 52 |
| Thread length (ℓ) | 5.25 |
| Shank dia. (Ds) | 4 |
| Size of Square (K) | 3 |
| Length of square (ℓk) | 7 |
