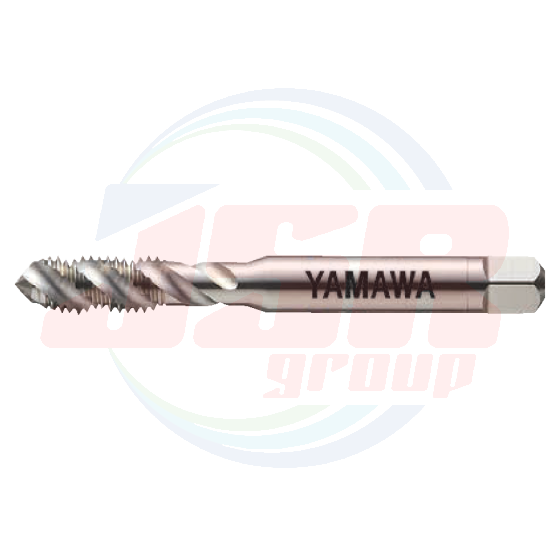

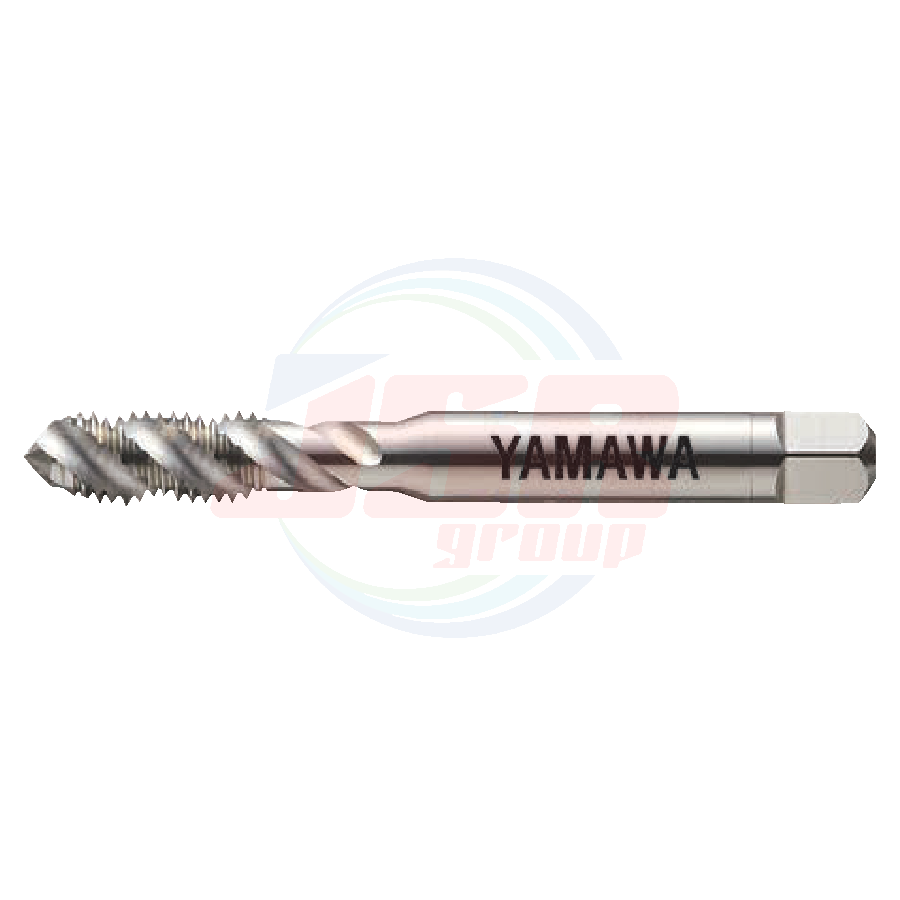

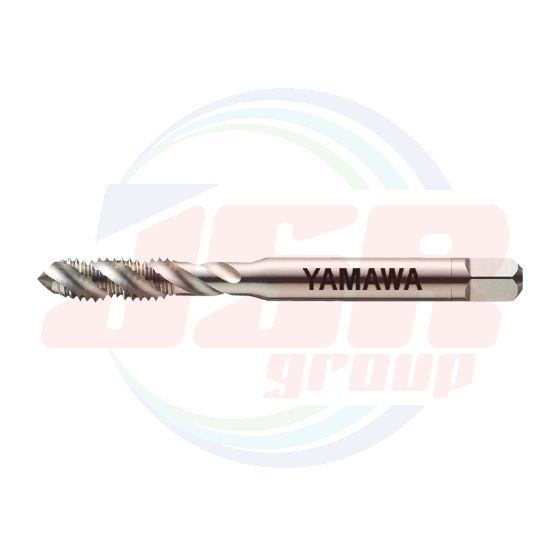

SP Whitworth Threads| Spiral Fluted Taps | YAMAWA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 352.03
พร้อมส่ง
SKU
YAM-SP-Whitworth Threads
- The spiral flutes of the SP tap pull the small continuous curly chips back towards the tapping chuck and prevents chips from clogging in the hole. These taps are ideal for blind hole tapping.
- These taps cut easily into softer materials.
- Intermittent cutting into pilot holes with a keyway or grooves is possible.
- The flute strength is inferior to the HT tap. The HT flute shape is more suitable for high hardness materials.
| File PDF |
Specification
Tapping Speeds depending on Materials
Oversize
Segment：1C
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Whitworth Threads |
||||||||||||
|
1/8W40 |
P1 |
SPPW02H |
2.5P |
52 |
11 |
16 |
28 |
5 |
4 |
7 |
3 |
3 |
|
5/32W32 |
P2 |
SPQW2HJ |
2.5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
3 |
|
3/16W24 |
P2 |
SPQW03M |
2.5P |
60 |
13 |
21 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
7/32W24 |
P2 |
SPQW3HM |
2.5P |
62 |
15 |
26 |
32 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4W20 |
P2 |
SPQW04N |
2.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
5/16W18 |
P2 |
SPQW05O |
2.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
6 |
|
3/8W16 |
P2 |
SPQW06P |
2.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
6 |
|
7/16W14 |
P3 |
SPRW07Q |
2.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
6 |
|
1/2W12 |
P3 |
SPRW08S |
2.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
6 |
|
9/16W12 |
P3 |
SPRW09S |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
6 |
|
5/8W11 |
P3 |
SPRW10U |
2.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
6 |
|
3/4W10 |
P3 |
SPRW12V |
2.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
8 |
|
7/8W9 |
P3 |
SPRW14W |
2.5P |
115 |
33 |
- |
55 |
17 |
13 |
16 |
4 |
8 |
|
1 W8 |
P3 |
SPRW16X |
2.5P |
125 |
39 |
- |
58 |
19 |
15 |
18 |
4 |
8 |
|
1 1/8W7 |
P4 |
SPSW18Y |
2.5P |
135 |
46 |
- |
62 |
23 |
17 |
20 |
4 |
8 |
|
1 1/4W7 |
P4 |
SPMSW20Y |
2.5P |
145 |
46 |
- |
67 |
24 |
19 |
22 |
4 |
8 |
|
1 3/8W6 |
P4 |
SPMSW22Z |
2.5P |
155 |
52 |
- |
71 |
28 |
21 |
24 |
4 |
8 |
|
1 1/2W6 |
P4 |
SPMSW24Z |
2.5P |
165 |
52 |
- |
76 |
30 |
23 |
26 |
4 |
8 |
|
1 5/8W5 |
P4 |
SPMSW260 |
2.5P |
175 |
59 |
- |
81 |
32 |
26 |
30 |
4 |
8 |
|
1 3/4W5 |
P4 |
SPMSW280 |
2.5P |
180 |
59 |
- |
83 |
35 |
26 |
30 |
4 |
8 |
|
1 7/8W4 1/2 |
P4 |
SPMSW309 |
2.5P |
185 |
65 |
- |
85 |
38 |
29 |
32 |
4 |
8 |
|
2 W4 1/2 |
P4 |
SPSW329 |
2.5P |
195 |
70 |
- |
85 |
40 |
32 |
35 |
4 |
8 |
| แบรนด์สินค้า | YAMAWA |
|---|
