Special Type Test Indicators

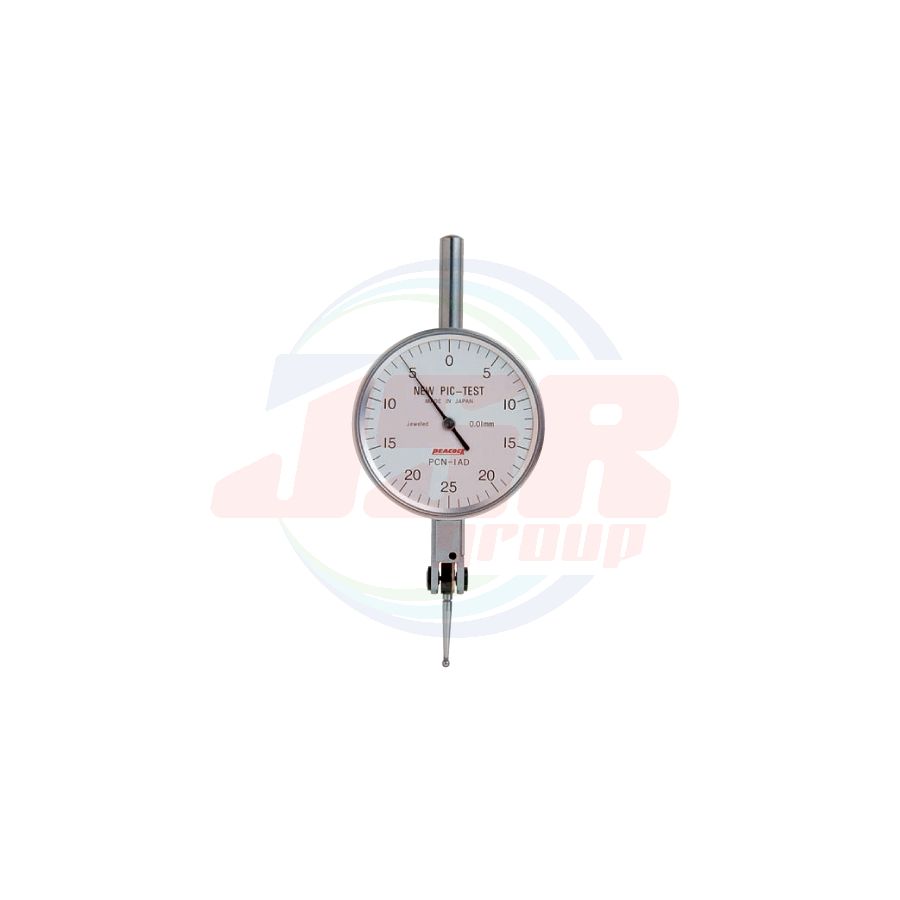

Large dial face D series
The dial plate size of PCN-1A, PCN-1L, PCN-2B, and PCN-S models has been enlarged, with easy reading due to the lager scale spacing, as a result. Screw type long stems are standard for these large dial face test indicators.
Specifications
Order No. | Graduation (mm) |
Range (mm) | Reading | Accuracy MPE (μm) | Measuring force less than (N) |
||||
10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
PCN-1AD | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.3 |
PCN-1LD | 0.01 | 1.0 | 0 - 50 - 0 | 5 | - | 10 | 5 | 3 | 0.3 |
PCN-2BD | 0.002 | 0.2 | 0 - 100 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
PCN-SD | 0.001 | 0.2 | 0 - 100 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
แบรนด์สินค้า | PEACOCK |
---|

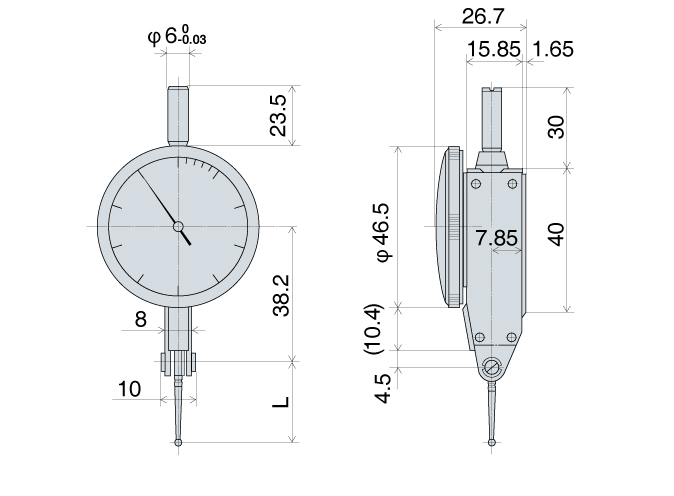

Order No. | L (mm) |
PCN-1AD | 21.3 |
PCN-2BD, PCN-SD | 16.6 |
PCN-1LD | 42.8 |
