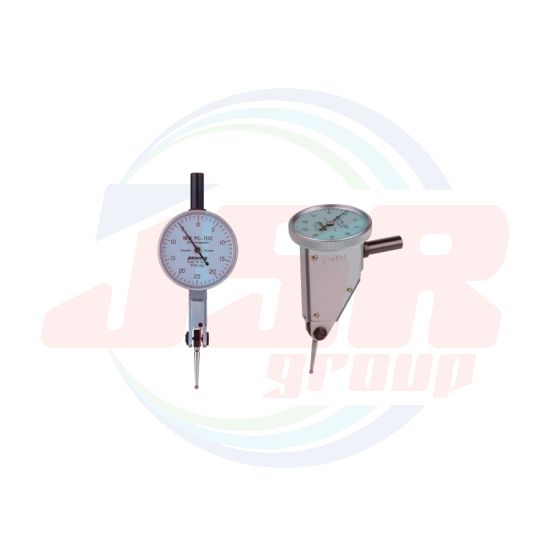

Special Type Test Indicators
Non-electrifying & Complete Anti-magnetic U series
When non-electrifying type of Pic Test or New Pic Test is used, electric flow is blocked at the ceramic stem, even of a magnetic stand is electrified. Thus, you can continue your work without any problem.
The dial face is light blue color and easy to read. Specifications and outer dimensions are the same as those of standard PCN types, except the portion of stems.
Specifications
| Order No. | Graduation (mm) |
Range (mm) | Reading | Accuracy MPE (μm) | Measuring force less than (N) |
||||
| 10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
| PCN-1AU | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.3 |
| PCN-1BU | 0.01 | 0.8 | 0 - 40 - 0 | 5 | - | 9 | 4 | 3 | 0.3 |
| PCN-1LU | 0.01 | 1.0 | 0 - 50 -0 | 5 | - | 10 | 5 | 3 | 0.3 |
| PCN-2U | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-2BU | 0.002 | 0.2 | 0 - 100 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-SU | 0.001 | 0.14 | 0 - 70 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| PCN-5U | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.3 |
| PCN-6U | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.3 |
| แบรนด์สินค้า | PEACOCK |
|---|
| Order No. | L (mm) |
| PCN-1AU | 21.3 |
| PCN-1BU | 22.2 |
| PCN-1LU | 42.8 |
| PCN-2U | 17.94 |
| PCN-2BU | 16.6 |
| Order No. | L (mm) |
| PCN-5U | 21.3 |
| PCN-6U | 17.94 |
