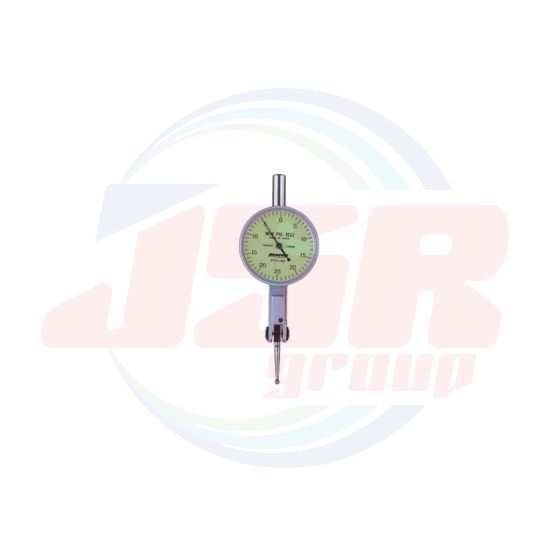

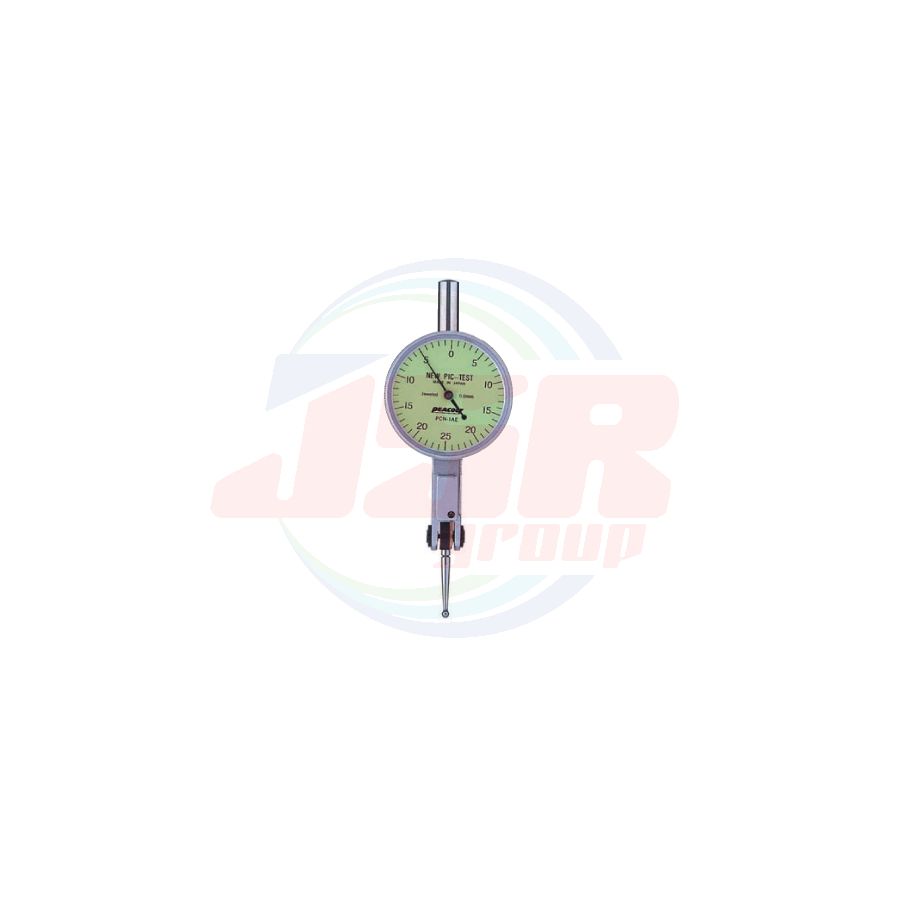

Special Type Test Indicators
Super low measuring force E sreies
Lever dial gauge that is suitable for flaw-free measure of an object under measurement and for measurement of plastic
products with a low measuring force.
A measuring force is 0.05N, 0.1N or less that is lower than a 0.4N measuring force in the conventional dial gauges.
Specifications and outer dimensions are the same as those of standard PC and PCN types, except a measuring force.
Specifications
Order No. | Graduation (mm) |
Range (mm) | Reading | Accuracy MPE (μm) | Measuring force less than (N) |
||||
10 Scale | 1 Rev. | Wide-range Forward accuracy |
Hysteresis | Repeatability | |||||
PCN-1AE | 0.01 | 0.5 | 0 - 25 -0 | 5 | - | 6 | 4 | 3 | 0.05 |
PCN-1BE | 0.01 | 0.8 | 0 - 40 - 0 | 5 | - | 9 | 4 | 3 | 0.05 |
PCN-1LE | 0.01 | 1.0 | 0 - 50 - 0 | 5 | - | 10 | 5 | 3 | 0.05 |
PCN-2E | 0.002 | 0.28 | 0 - 140 - 0 | 2 | - | 4 | 3 | 1 | 0.1 |
PC-1AE | 0.01 | 0.5 | 0 - 25 - 0 | 5 | - | 6 | 4 | 3 | 0.1 |
PC-1BE | 0.01 | 0.8 | 0 - 40 - 0 | 5 | - | 9 | 4 | 3 | 0.1 |
PC-1LE | 0.01 | 1.0 | 0 - 50 - 0 | 5 | - | 10 | 5 | 3 | 0.1 |
แบรนด์สินค้า | PEACOCK |
---|

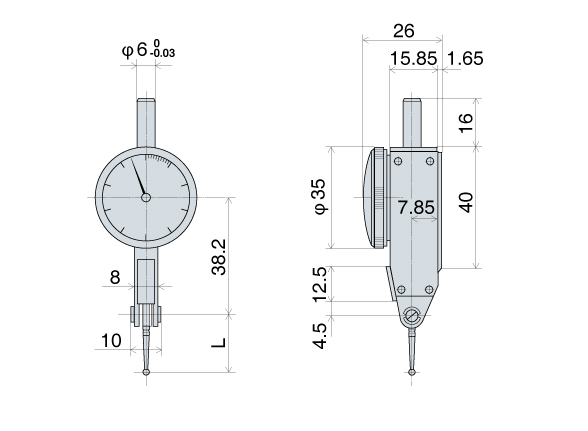

Order No. | L (mm) |
PCN-1AE | 21.3 |
PCN-1BE | 22.2 |
PCN-1LE | 42.8 |
PCN-2E | 17.94 |
Order No. | L (mm) |
PC-1AE | 21.4 |
PC-1BE | 22.4 |
PC-1LE | 43.0 |
