Specialty Holders
In respond to market demand Noga offers a variety of unique holders with special features.
DG/MG Holders
Unique DG & MG arms with plastic fine adjustment. Ideal for EDM.
DG1044

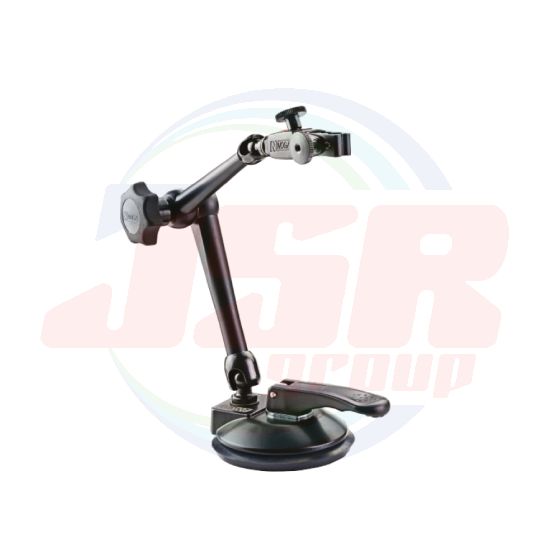

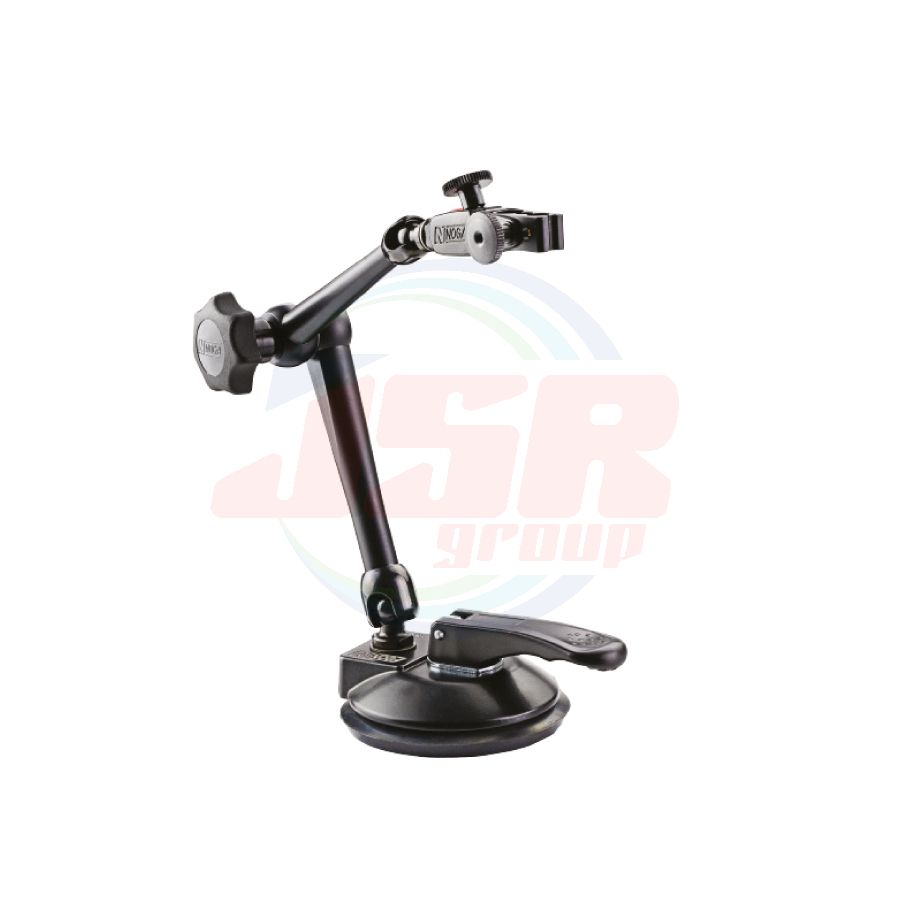

Special DG arm with vacum base. Ideal for granite table.

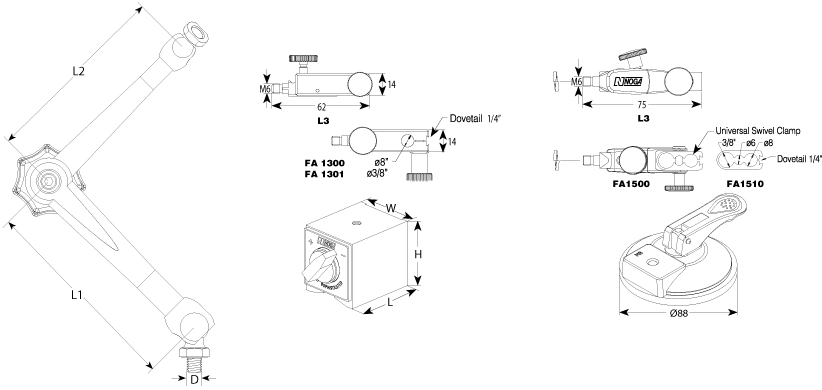

| Order No. | Bottom thread D |
Weight (kg) |
Arm length | Magnet | Standard Clamp | ||||||
| Bottom Arm L1 |
Top Thread L2 |
Total L1 + L2 + L3 |
Force | Dimension | Order no. | D | |||||
| (N) | W | L | H | ||||||||
| DG1030 | Ext. M8 | 1.350 | 110 | 101 | 261 | 800 | 50 | 60 | 55 | FA1300 | 8mm |
| DG1010 | Ext. M8 | 0.350 | 110 | 101 | 261 | - | - | - | - | FA1300 | 8mm |
| DG1033 | Ext. M8 | 1.350 | 110 | 101 | 261 | 800 | 50 | 60 | 55 | FA1301 | 3/8" |
| DG1013 | Ext. M8 | 0.350 | 110 | 101 | 261 | - | - | - | - | FA1301 | 3/8" |
| DG1044 | Ext. M8 | 0.740 | 110 | 101 | 282 | 350 | - | ø88 | - | FA1500 | 6mm, 8mm, 3/8” |
| MG1030 | Ext. M8 | 1.850 | 133 | 113 | 317 | 800 | 50 | 60 | 55 | FA1300 | 8mm |
| MG1010 | Ext. M8 | 0.850 | 133 | 113 | 317 | - | - | - | - | FA1300 | 8mm |
| MG1033 | Ext. M8 | 1.850 | 133 | 113 | 317 | 800 | 50 | 60 | 55 | FA1301 | 3/8" |
| MG1013 | Ext. M8 | 0.850 | 133 | 113 | 317 | - | - | - | 5 | FA1301 | 3/8" |
| แบรนด์สินค้า | NOGA |
|---|
