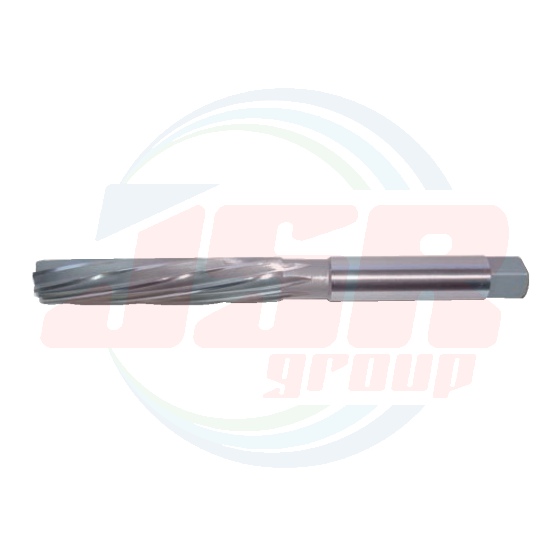

SPIRAL HAND REAMER | DAIICHI TOOL เครื่องมืออุตสาหกรรม เครื่องมือช่าง เครื่องมือวัดละเอียด

Order No.

Diameter

Flute Lenght

Overall Lenght

Shank Diameter

Chamfer

	D		L	d	T
SPHR 2.0	2.0	30	60	3	6
SPHR 2.1	2.1	30	60	3	6
SPHR 2.2	2.2	30	60	3	6
SPHR 2.3	2.3	30	60	3	6
SPHR 2.4	2.4	30	60	3	6
SPHR 2.5	2.5	35	65	3	7
SPHR 2.6	2.6	35	65	3	7
SPHR 2.7	2.7	35	65	3	7
SPHR 2.8	2.8	35	65	3	7
SPHR 2.9	2.9	35	65	3	7
SPHR 3.0	3.0	40	72	3	8
SPHR 3.1	3.1	40	72	3.1	8
SPHR 3.2	3.2	40	75	3.2	8
SPHR 3.3	3.3	40	75	3.3	8
SPHR 3.4	3.4	40	75	3.4	8
SPHR 3.5	3.5	40	75	3.5	8
SPHR 3.6	3.6	40	75	3.6	8
SPHR 3.7	3.7	40	75	3.7	8
SPHR 3.8	3.8	40	75	3.8	8
SPHR 3.9	3.9	40	75	3.9	8
SPHR 4.0	4.0	40	80	4	8
SPHR 4.1	4.1	40	80	4.1	8
SPHR 4.2	4.2	45	85	4.2	9
SPHR 4.3	4.3	45	85	4.3	9
SPHR 4.4	4.4	45	85	4.4	9
SPHR 4.5	4.5	45	85	4.5	9
SPHR 4.6	4.6	45	85	4.6	9
SPHR 4.7	4.7	45	90	4.7	9
SPHR 4.8	4.8	45	90	4.8	9
SPHR 4.9	4.9	45	90	4.9	9
SPHR 5.0	5.0	45	90	5	9
SPHR 5.1	5.1	45	95	5.1	9
SPHR 5.2	5.2	45	95	5.2	10
SPHR 5.3	5.3	45	95	5.3	10
SPHR 5.4	5.4	45	95	5.4	10
SPHR 5.5	5.5	45	95	5.5	10
SPHR 5.6	5.6	45	95	5.6	10
SPHR 5.7	5.7	50	100	5.7	10
SPHR 5.8	5.8	50	100	5.8	10
SPHR 5.9	5.9	50	100	5.9	10
SPHR 6.0	6.0	50	100	6	10
SPHR 6.1	6.1	50	100	6.1	10
SPHR 6.2	6.2	50	100	6.2	10
SPHR 6.3	6.3	50	100	6.3	10
SPHR 6.4	6.4	50	100	6.4	10
SPHR 6.5	6.5	50	100	6.5	10
SPHR 6.6	6.6	50	100	6.6	10
SPHR 6.7	6.7	55	105	6.7	11
SPHR 6.8	6.8	55	105	6.8	11
SPHR 6.9	6.9	55	105	6.9	11
SPHR 7.0	7.0	55	105	7	11
SPHR 7.1	7.1	55	105	7.1	11
SPHR 7.2	7.2	55	110	7.2	11
SPHR 7.3	7.3	55	110	7.3	11
SPHR 7.4	7.4	55	110	7.4	11
SPHR 7.5	7.5	55	110	7.5	11
SPHR 7.6	7.6	55	110	7.6	11
SPHR 7.7	7.7	60	115	7.7	12
SPHR 7.8	7.8	60	115	7.8	12
SPHR 7.8	7.9	60	115	7.9	12
SPHR 8.0	8.0	60	115	8	12
SPHR 8.1	8.1	60	115	8.1	12
SPHR 8.2	8.2	60	120	8.2	12
SPHR 8.3	8.3	60	120	8.3	12
SPHR 8.4	8.4	60	120	8.4	12
SPHR 8.5	8.5	60	120	8.5	12
SPHR 8.6	8.6	60	120	8.6	12
SPHR 8.7	8.7	65	125	8.7	13
SPHR 8.8	8.8	65	125	8.8	13
SPHR 8.9	8.9	65	125	8.9	13
SPHR 9.0	9.0	65	125	9	13
SPHR 9.1	9.1	65	125	9.1	13
SPHR 9.2	9.2	65	125	9.2	13
SPHR 9.3	9.3	65	125	9.3	13
SPHR 9.4	9.4	65	125	9.4	13
SPHR 9.5	9.5	65	125	9.5	13
SPHR 9.6	9.6	65	125	9.6	13
SPHR 9.7	9.7	70	130	9.7	13
SPHR 9.8	9.8	70	130	9.8	14
SPHR 9.9	9.9	70	130	9.9	14
SPHR 10.0	10.0	70	130	10	14
SPHR 10.1	10.1	70	130	10.1	14
SPHR 10.2	10.2	70	135	10.2	14
SPHR 10.3	10.3	70	135	10.3	14
SPHR 10.4	10.4	70	135	10.4	14
SPHR 10.5	10.5	70	135	10.5	14
SPHR 10.6	10.6	70	135	10.6	14
SPHR 10.7	10.7	75	140	10.7	15
SPHR 10.8	10.8	75	140	10.8	15
SPHR 10.9	10.9	75	140	10.9	15
SPHR 11.0	11.0	75	140	11	15
SPHR 11.1	11.1	75	140	11.1	15
SPHR 11.2	11.2	75	145	11.2	15
SPHR 11.3	11.3	75	145	11.3	15
SPHR 11.4	11.4	75	145	11.4	15
SPHR 11.5	11.5	75	145	11.5	15
SPHR 11.6	11.6	75	145	11.6	15
SPHR 11.7	11.7	75	150	11.7	15
SPHR 11.8	11.8	75	150	11.8	15
SPHR 11.9	11.9	75	150	11.9	15
SPHR 12.0	12.0	75	150	12	15
SPHR 12.1	12.1	75	150	12.1	15
SPHR 12.2	12.2	80	155	12.2	16
SPHR 12.3	12.3	80	155	12.3	16
SPHR 12.4	12.4	80	155	12.4	16
SPHR 12.5	12.5	80	155	12.5	16
SPHR 12.6	12.6	80	155	12.6	16
SPHR 12.7	12.7	80	160	12.7	16
SPHR 12.8	12.8	80	160	12.8	16
SPHR 12.9	12.9	80	160	12.9	16
SPHR 13.0	13.0	80	160	13	16
SPHR 13.1	13.1	85	165	13.1	17
SPHR 13.2	13.2	85	165	13.2	17
SPHR 13.3	13.3	85	165	13.3	17
SPHR 13.4	13.4	85	165	13.4	17
SPHR 13.5	13.5	85	165	13.5	17
SPHR 13.6	13.6	85	165	13.6	17
SPHR 13.7	13.7	85	165	13.7	17
SPHR 13.8	13.8	85	165	13.8	17
SPHR 13.9	13.9	85	165	13.9	17
SPHR 14.0	14.0	85	165	14	17
SPHR 14.5	14.5	90	170	14.5	18
SPHR 15.0	15.0	90	175	15	18
SPHR 15.5	15.5	95	185	15.5	19
SPHR 16.0	16.0	95	185	16	19
SPHR 16.5	16.5	100	190	16.5	20
SPHR 17.0	17.0	100	190	17	20
SPHR 17.5	17.5	105	200	17.5	21
SPHR 18.0	18.0	105	200	18	21
SPHR 18.5	18.5	105	210	18.5	21
SPHR 19.0	19.0	105	210	19	21
SPHR 20.0	20.0	110	220	20	22
