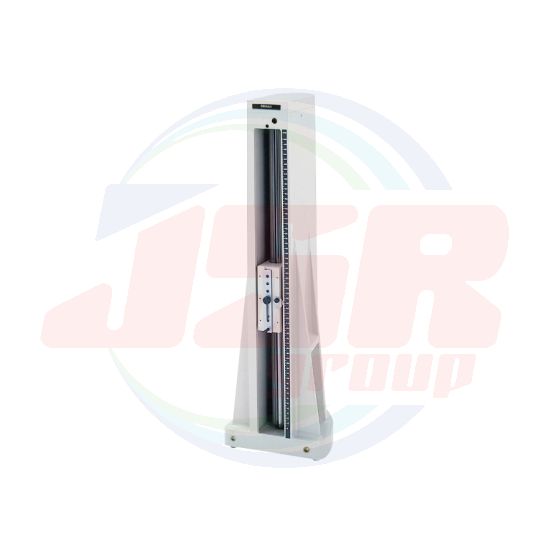

• Squareness (perpendicularity) and straightness measurements can be performed accurately and efficiently by just moving a lever. Use the vertical motion handle on the rear of the main unit for operation.
• Highly accurate measurement of squareness and straightness is available by calibrating a square as a master using the built-in perpendicularity adjustment mechanism. Prepare a square to be used for accuracy check/adjustment separately.
• Sliding force: Approx. 2 to 5 N
SPECIFICATIONS
Metric
Order No. | Vertical travel (mm) |
Squareness (µm) |
Straightness (µm) |
Dimension (mm) | Mass (kg) |
||
Width | Depth | Height | |||||
311-215* | 150 | 3 | 2 | 180 | 200 | 420 | 13.7 |
311-225* | 250 | 6 | 2.5 | 180 | 200 | 520 | 16.2 |
311-245 | 450 | 9 | 3.5 | 220 | 220 | 720 | 24 |
• 513-401-10H (Metric): Dial test indicator
• 902053: Clamp
• 601471: Indicator holder
• 538616: Hexagonal-head wrench (3 mm)
* Riser blocks to extend the height of Square Masters can be used. (Refer to page 01-39 for details)
Note: Inspection certificate is not attached. Contact your local Mitutoyo sales office.
