ST-305B | Back Plunger Dial Indicator | TECLOCK
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
ST-305B
QTY:
2

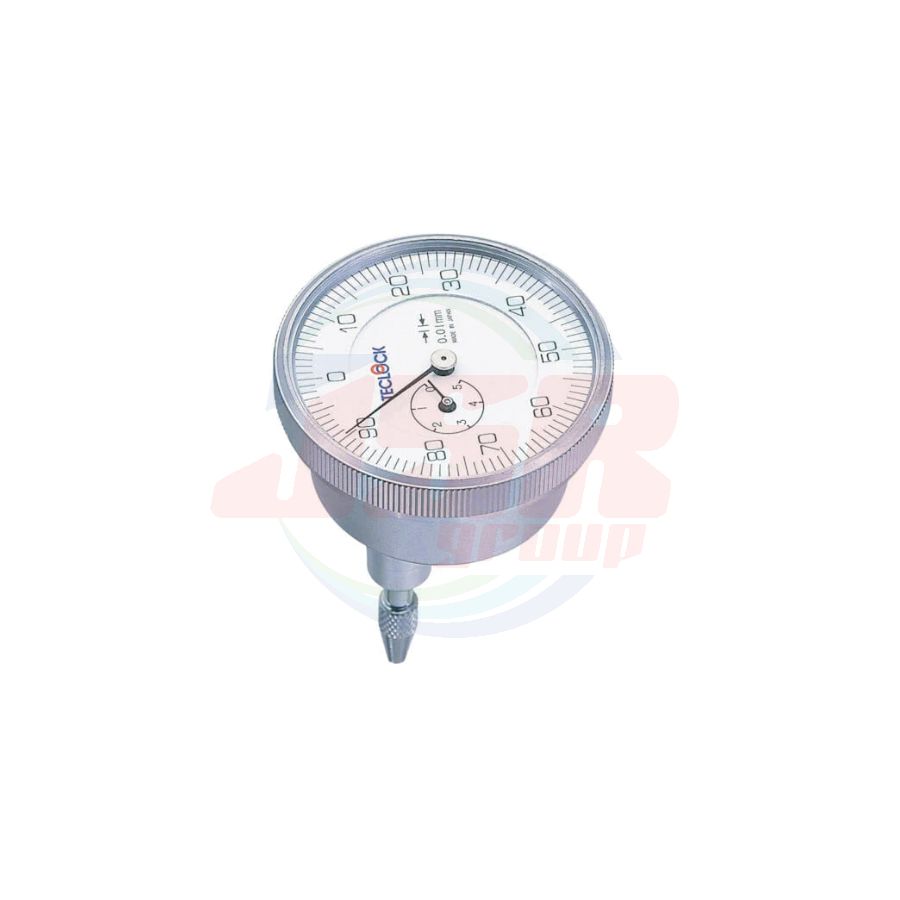

Back Plunger Dial Indicator
• These are different from general indicators, of which gradation plate can be set in parallel to measuring face. It is suitable for leveling smooth surface and reading from the front of measuring point.
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Indication Error(μm) | Hysteresis (μm) |
Measuring Force (N) |
Weight (g) |
|||
| 1/10 Revolution |
1/2 Revolution |
1 Revolution |
Total Range |
|||||||
| ST-305A | 0.01 | 5 | 3 | 8 | 12 | 14 | 18 | 4 | 1.4 or less | 80 |
| ST-305B | 0.01 | 5 | 3 | 8 | 12 | 14 | 18 | 4 | 1.4 or less | 80 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|---|
| Order No. | ST-305B |
| Graduation | 0.01 mm |
| Repeatability | 3 μm |
