Standard Digital Depth Gauge - Resolution : 0.001mm
• Digital Depth Gauge can be used for direct measuring depth and steps of work piece.
• Printing out of measured data and statistics arithmetic operation can be implemented by connecting it to optional Digital mini-printer SD-763P.
• Extension rods can be used by Preset function. (Expect DMD-210A, DMD-211A, DMD-240A, DMD-2100A, and DMD-240A).
Specifications
* Measuring Range : ( ) value is a Range by using 5pcs extension rods.
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
| DMD-2100A | 0.001 | 12 | ±5 | Needle | ZS-523 | 1.5 or less | 310 |
| DMD-2150A | 0.001 | 12(220) | ±5 | φ3.2 Steel Ball | ZS-034 | 2.3 or less | 375 |
| DMD-2400A | 0.001 | 25.4 | ±5 | Needle | ZS-113 | 1.6 or less | 390 |
| DMD-2410A | 0.001 | 25.4 | ±5 | φ3.2 Steel Ball | ZS-600 | 1.6 or less | 370 |
| แบรนด์สินค้า | TECLOCK |
|---|

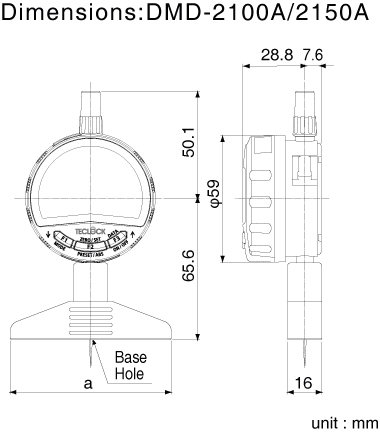

| Order No. | Base form a×b |
Base Hole Diameter |
| DMD-2100A | 75×16 | 2.5 |
| DMD-2150A | 100×16 | 5.2 |

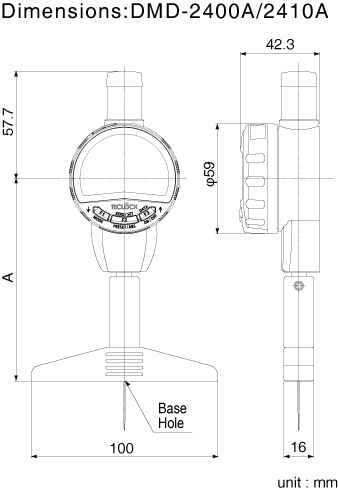

| Order No. | A | Base Hole Diameter |
| DMD-2400A | 108.7 | 2.5 |
| DMD-2410A | 88.7 | 5.2 |
