Standard Digital Depth Gauge - Resolution : 0.01mm
• Digital Depth Gauge can be used for direct measuring depth and steps of work piece.
• Printing out of measured data and statistics arithmetic operation can be implemented by connecting it to optional Digital mini-printer SD-763P.
• Extension rods can be used by Preset function. (Expect DMD-210A, DMD-211A, DMD-240A, DMD-2100A, and DMD-240A).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Indication Error (μm) |
Contact Point Form (mm) |
Standard Contact Point | Measuring Force (N) | Weight (g) |
Old Model |
| DMD-210A | 0.01 | 12 | ±20 | Needle | ZS-523 | 1.0 or less | 310 | DMD-204 |
| DMD-211A | 0.01 | 12 | ±20 | φ2 Flat | ZS-530 | 1.0 or less | 310 | DMD-216 |
| DMD-213A | 0.01 | 12 | ±20 | φ3.2 Steel Ball | ZS-034 | 1.0 or less | 310 | DMD-218 |
| DMD-214A | 0.01 | 12 (220) | ±20 | φ3.2 Steel Ball | ZS-034 | 2.3 or less | 335 | - |
| DMD-215A | 0.01 | 12 (220) | ±20 | φ3.2 Steel Ball | ZS-034 | 2.3 or less | 375 | DMD-291 |
| แบรนด์สินค้า | TECLOCK |
|---|

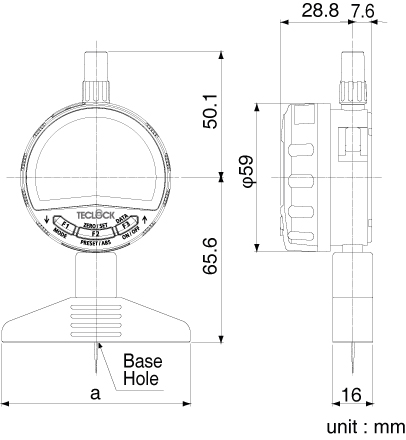

| Order No. | Base form a×b |
Base Hole Diameter |
| DMD-210A | 75×16 | 2.5 |
| DMD-211A | 75×16 | 2.5 |
| DMD-213A | 75×16 | 5.2 |
| DMD-214A | 75×16 | 5.2 |
| DMD-215A | 100×16 | 5.2 |
