Standard Digital Thickness Gauge
• 0.01mm and 0.001mm resolution are available.
Specifications
| Order No. | Resolution (mm) |
Measuring Range (mm) ( ) : Indicating Range*1 |
Indication Error(μm) | Parallelism (μm) |
Measuring Force(N) |
Contact Point Form / Anvil Form(mm) |
Weight (g) |

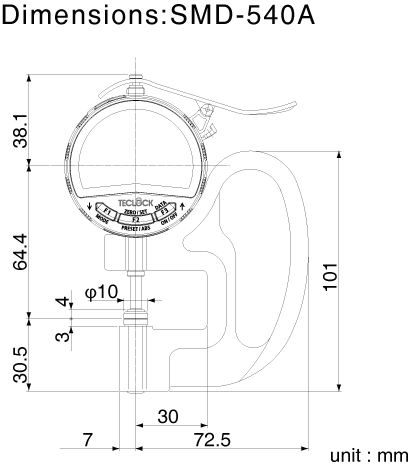

| SMD-540A | 0.01 | 12 | ±20 | 5 | 1.0 or less | φ10 Flat | 290 |

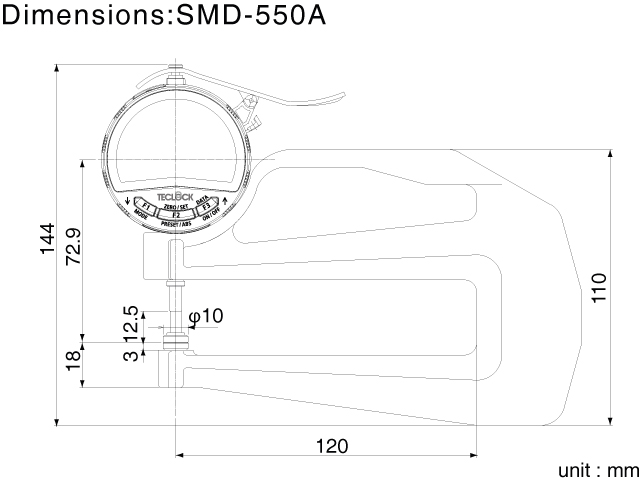

| SMD-550A | 0.01 | 12 | ±20 | 5 | 1.0 or less | φ10 Flat | 440 |

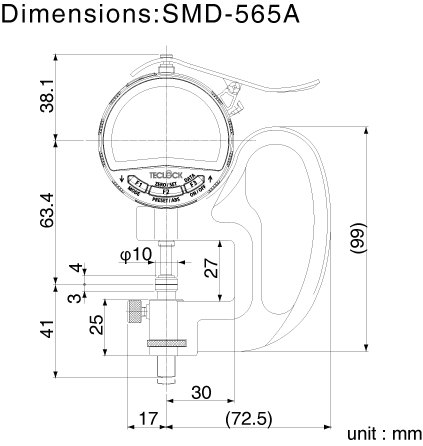

| SMD-565A | 0.001 | 15(12) | ±20 | 3 | 1.5 or less | φ10 Flat | 470 |
*1 Indicating value in ( ) is a measuring range of digital sensor.
