• High-precision glass scales manufactured under Mitutoyo’s leading-edge Linear Scale production technology. They are considered top-grade length standards.
• Standard scales can be used as a traceable standard of length for calibrating measuring instruments.

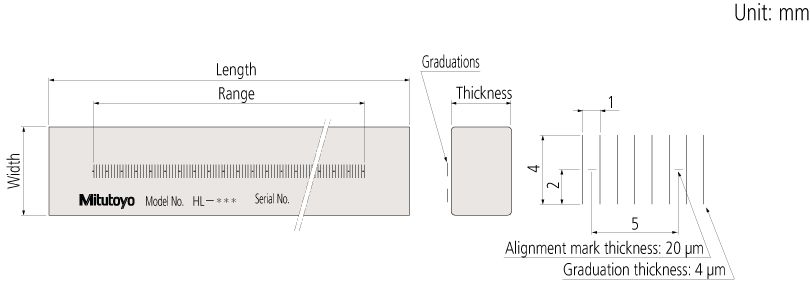

SPECIFICATIONS
Metric
Order No. | Range (mm) |
Length (mm) |
Width (mm) |
Thickness (mm) |
Graduation thickness (µm) |
Graduation (mm) |
182-501-50 | 250 | 280 | 20 | 10 | 4 | 1 |
182-501-60* | ||||||
182-502-50 | 500 | 530 | 30 | 20 | ||
182-502-60* |
• Material: Low expansion glass
• Thermal expansion coefficient: (0.00±0.02)×10-6/K
• Accuracy (at 20 °C): (0.5 + L/1000) µm, L=Measured length (mm)
* With English JCSS certificate.
