STANDARD STEEL SQUARE - OS-148B Class 2 | OHNISHI (O.S.S)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
OSS-OS148B2

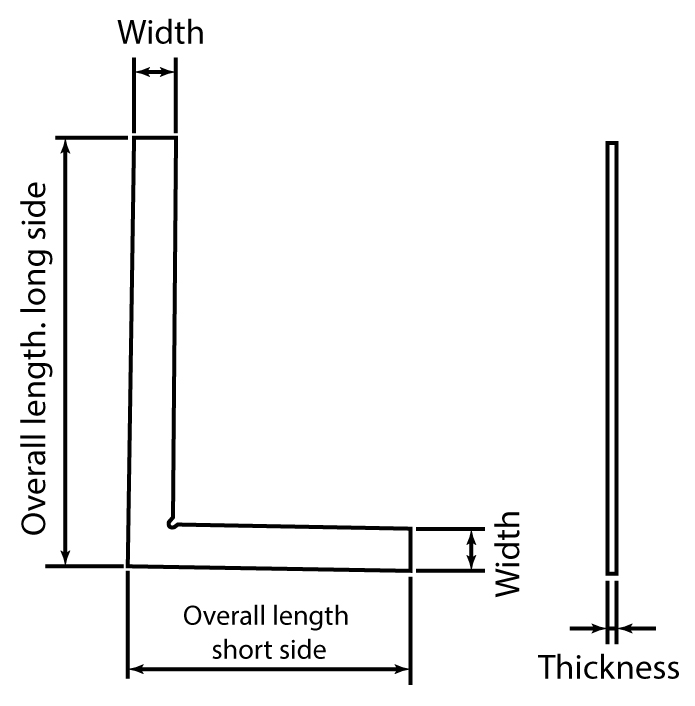

Dimensions OS-148B
| Order No. | Nominal Size (mm) | Size (mm) | Weight(kg) | |||
| Class 2 | Overall length, long side | Overall length, short side | Width | Thickness | ||
| 148B-50L2 | *50 | 50 | 30 | 12 | 3 | 0.07 |
| 148B-75L2 | 75 | 75 | 50 | 16 | 3 | 0.09 |
| 148B-100L2 | 100 | 100 | 70 | 19 | 4.5 | 0.1 |
| 148B-125L2 | *125 | 125 | 80 | 22 | 4.5 | 0.15 |
| 148B-150L2 | 150 | 150 | 100 | 25 | 6 | 0.2 |
| 148B-200L2 | 200 | 200 | 130 | 25 | 6 | 0.35 |
| 148B-250L2 | *250 | 250 | 165 | 25 | 6 | 0.5 |
| 148B-300L2 | 300 | 300 | 200 | 30 | 6 | 0.6 |
| 148B-350L2 | *350 | 350 | 200 | 38 | 6 | 1.1 |
| 148B-400L2 | *400 | 400 | 200 | 38 | 9 | 1.5 |
| 148B-450L2 | *450 | 450 | 250 | 38 | 9 | 1.8 |
| 148B-500L2 | 500 | 500 | 300 | 38 | 9 | 2 |
| 148B-600L2 | *600 | 600 | 350 | 50 | 9 | 4 |
| 148B-750L2 | 750 | 750 | 400 | 50 | 9 | 5 |
| 148B-900L2 | *900 | 900 | 500 | 50 | 9 | 8 |
| 148B-1000L2 | 1000 | 1000 | 550 | 65 | 9 | 10 |
| 148B-1200L2 | *1200 | 1200 | 550 | 65 | 12 | 11 |
| 148B-1500L2 | *1500 | 1500 | 620 | 65 | 12 | 12 |
| 148B-2000L2 | *2000 | 2000 | 830 | 75 | 12 | 24 |
*Nonstandard JIS size
| แบรนด์สินค้า | OHNISHI (O.S.S.) |
|---|
