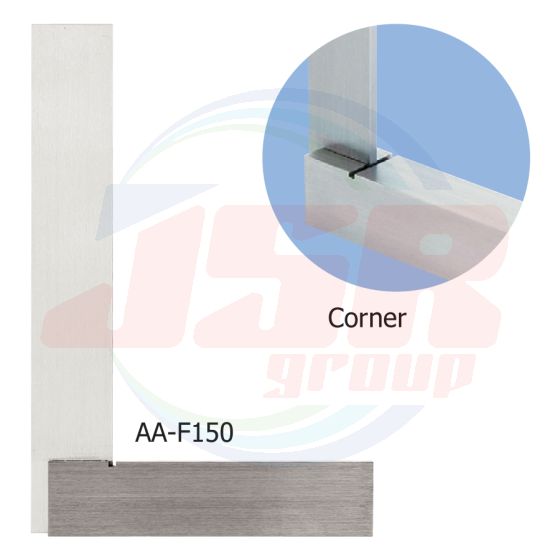

STEEL SQUARE (AA TYPE) SECOND GRADE (Non-hardened) | NIIGATA SEIKI (SK)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
SK-AAS
SECOND GRADE (Non-hardened)
FEATURES :
• Dimension and accuracy accordance to JIS B 7526 ( ※exceeds JIS)
• Non-hardened
• Ground finish
Squareness ± (20 + L 10 ) µm (L: Nominal Size)
| Order Code | Model No. | Nominal Size (mm) | Blade Length (mm) | Blade Width (mm) | Blade Thickness (mm) | Beam Length (mm) | Beam Width (mm) | Beam Thickness (mm) | Squareness Accuracy (±mm) | Weight |
| AA-S50 | 002201 | ※ 50 | 50 | 16 | 2 | 37 | 16 | 10 | 0.025 | 54g |
| AA-S75 | 002202 | 75 | 75 | 50 | 0.027 | 72g | ||||
| AA-S100 | 002203 | 100 | 100 | 20 | 2.5 | 70 | 18 | 12 | 0.03 | 150g |
| AA-S125 | 002204 | ※ 125 | 125 | 80 | 0.032 | 175g | ||||
| AA-S150 | 002205 | 150 | 150 | 24 | 3 | 100 | 22 | 18 | 0.035 | 365g |
| AA-S200 | 002207 | 200 | 200 | 29 | 3.5 | 130 | 26 | 22 | 0.04 | 695g |
| AA-S250 | 002208 | ※ 250 | 250 | 165 | 0.045 | 900g | ||||
| AA-S300 | 002209 | 300 | 300 | 35 | 4 | 200 | 32 | 27 | 0.05 | 1.5kg |
| AA-S400 | 002211 | ※ 400 | 400 | 40 | 5 | 40 | 0.06 | 2.1kg | ||
| AA-S500 | 002213 | 500 | 500 | 46 | 300 | 45 | 35 | .07 | 4.3kg | |
| AA-S600 | 002214 | ※ 600 | 600 | 50 | 320 | 55 | 0.08 | 5.7kg | ||
| AA-S750 | 002215 | 750 | 750 | 58 | 6 | 400 | 63 | 50 | 0.095 | 11.3kg |
| AA-S1000 | 002217 | 1000 | 1000 | 65 | 10.0 | 550 | 80 | 65 | 0.12 | 24.5kg |
| AA-S1500 | 002219 | ※ 1500 | 1500 | 90 | 600 | 90 | 80 | 0.17 | 39.1kg | |
| AA-S2000 | 002221 | ※ 2000 | 2000 | 100 | 800 | 105 | 90 | 0.22 | 70.9kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
