SU-S-PT (Pipe Threads)
- SU-S-PT is the hand tap with short thread portion, suitable for stainless steels which tend to work-harden and sticky, as well as chrome steels and molybdenum steels.
Specification
Tapping Speeds depending on Materials
Segment：1G
|

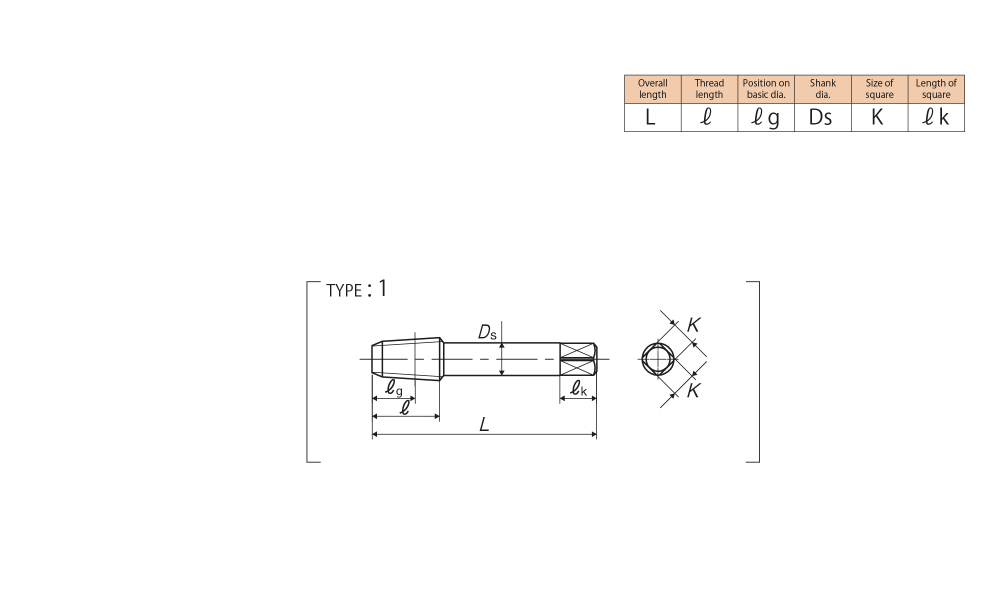

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
TUST02K |
2.5P |
9.728 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/4-19 |
Ⅱ |
TUST04- |
2.5P |
13.157 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
4 |
1 |
|
PT 3/8-19 |
Ⅱ |
TUST06- |
2.5P |
16.662 |
65 |
21 |
14 |
14 |
11 |
14 |
4 |
1 |
|
PT 1/2-14 |
Ⅱ |
TUST08Q |
2.5P |
20.955 |
80 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
TUST12Q |
2.5P |
26.441 |
85 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
TUST16U |
2.5P |
33.249 |
95 |
35 |
22 |
26 |
21 |
24 |
4 |
1 |
|
PT 1 1/4-11 |
Ⅱ |
TUST20U |
2.5P |
41.910 |
105 |
37.5 |
24.5 |
32 |
26 |
30 |
5 |
1 |
|
PT 1 1/2-11 |
Ⅱ |
TUST24U |
2.5P |
47.803 |
110 |
38.5 |
25.5 |
38 |
29 |
32 |
6 |
1 |
| แบรนด์สินค้า | YAMAWA |
|---|
