Product Features
- Suitable for stainless steels tending to work-harden and sticky, as well as chrome steels and molybdenum steels, through hole use.
- Recommended speed : 5〜15m/min
- In tapping SUS304, SU+SL has more than 3 times longer tool life than SU-PO. Even in 2000 tapping holes, the surface of thread finish is good and the shape of threads is clearly stable.
- Adopting left hand spiral flutes, compared with SU-PO, SU+SL improves the chip ejection and realizes longer tool life.
Tapping Data
Tapping condition [M5×0.8]
| Work Material | SUS304(90HRB) |
| Hole Size | φ4.2 |
| Tapping Length | 12mm, through hole |
| Tapping Speed | 15m/min |
| Machine | Vertical machining center |
| Tapping Fluid | Non-water soluble cutting oil without chlorine |
Comparison of Internal Threads

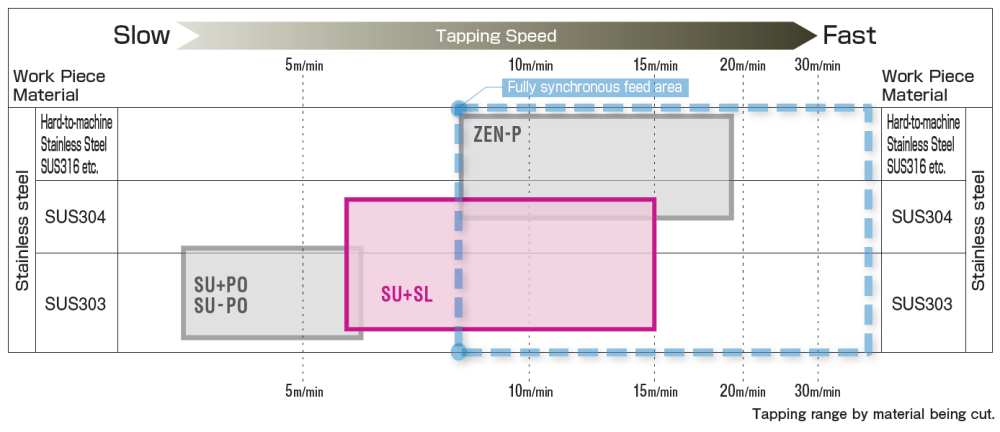

Speed chart
Specification
Tapping Speeds depending on Materials
Segment：1S
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Metric Threads |
||||||||||||
|
M3×0.5 |
P2 |
SUPQ3.0GL |
5P |
46 |
9 |
14 |
26 |
4 |
3.2 |
6 |
3 |
1 |
|
M4×0.7 |
P2 |
SUPQ4.0IL |
5P |
52 |
11 |
17 |
29 |
5 |
4 |
7 |
3 |
1 |
|
M5×0.8 |
P3 |
SUPR5.0KL |
5P |
60 |
13 |
22 |
33 |
5.5 |
4.5 |
7 |
3 |
1 |
|
M6×1 |
P2 |
SUPQ6.0ML |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
