SU-SP-PF (Pipe Threads)
- The SU-SP-PF is a spiral flute tap suitable for machining stainless steel, chromium steel, molybdenum steel. These are materials that have a remarkably high work hardened ability.
Specification

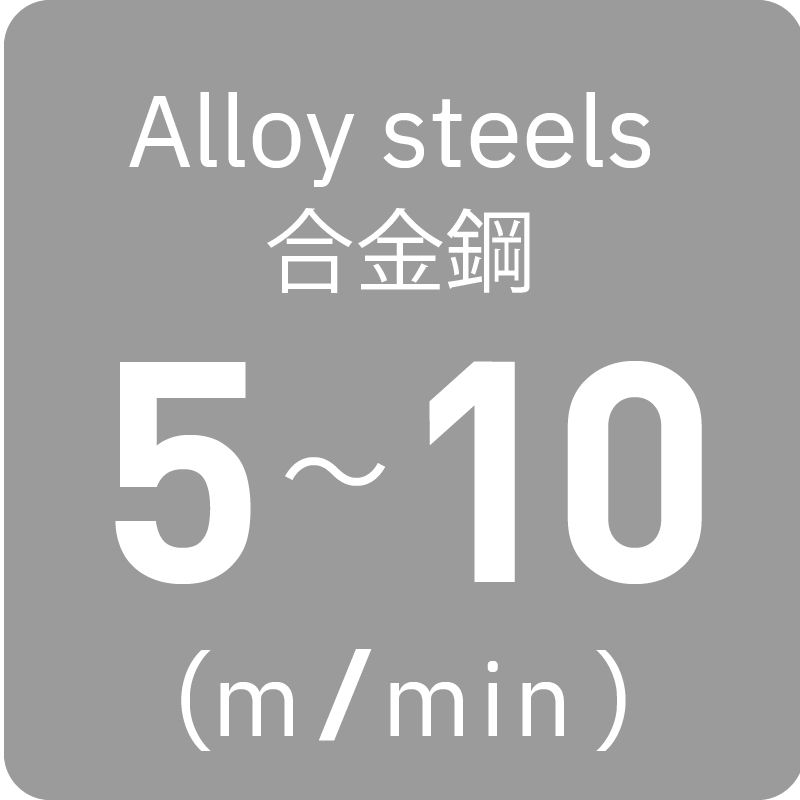

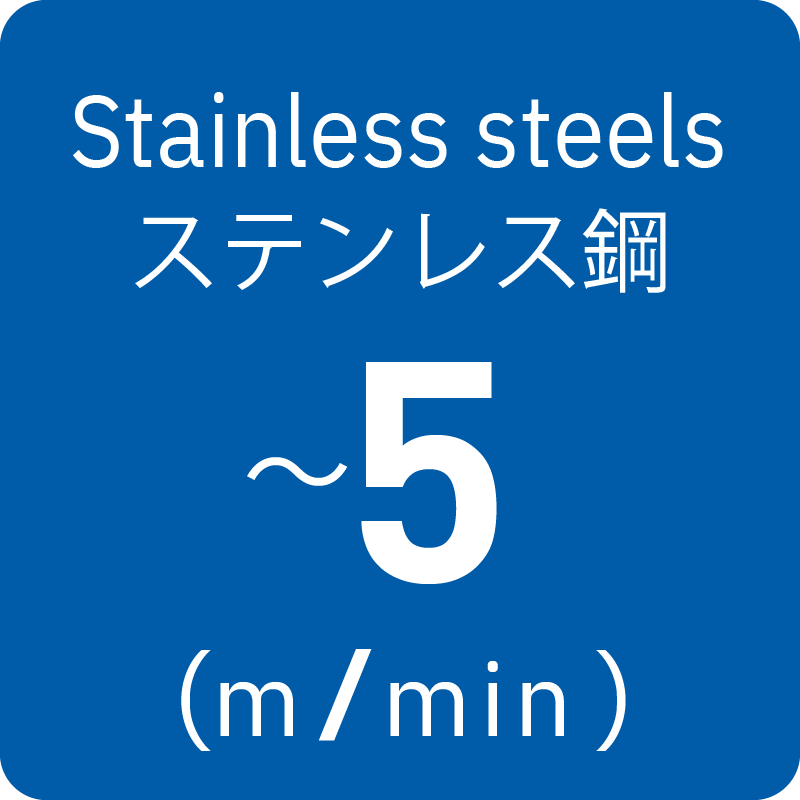

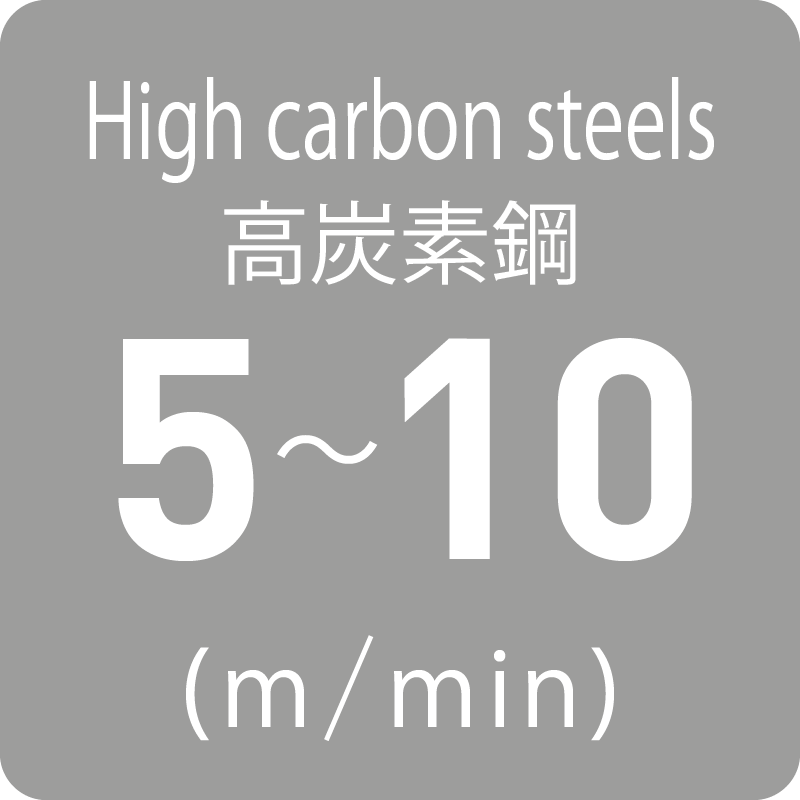

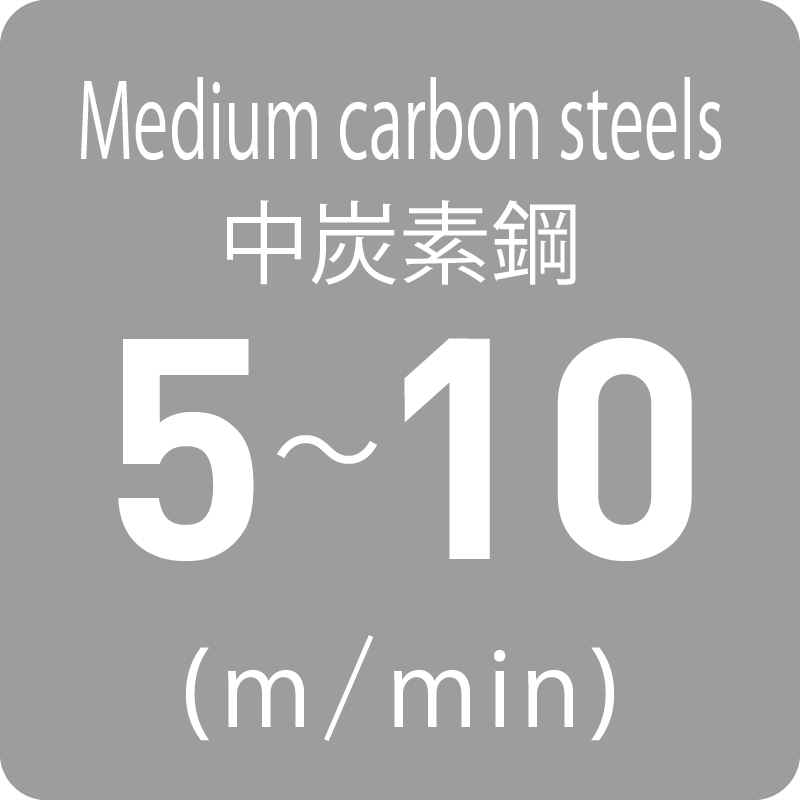

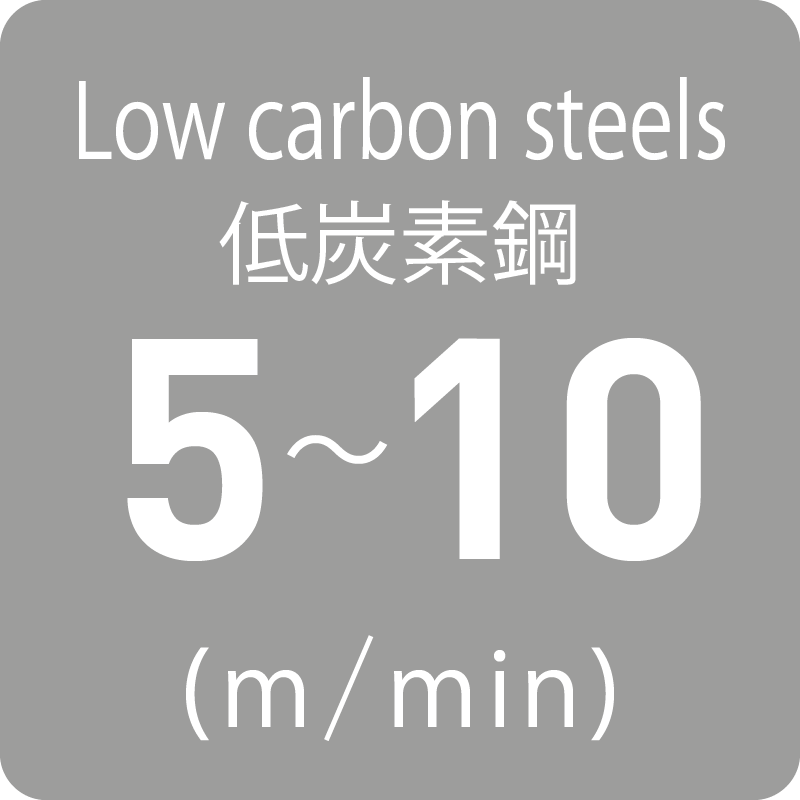

Tapping Speeds depending on Materials
Segment：1G
|

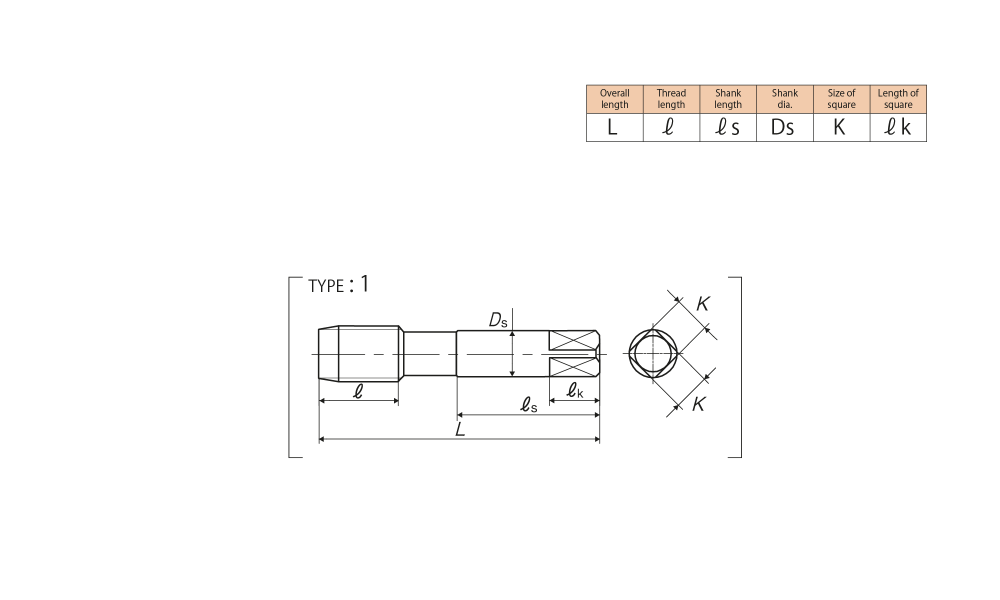

Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PF 1/8-28 |
Ⅱ |
SYPF022GEX |
2.5P |
9.728 |
59 |
15 |
34 |
8 |
6 |
9 |
3 |
1 |
|
PF 1/4-19 |
Ⅱ |
SYPF042GEX |
2.5P |
13.157 |
67 |
19 |
37 |
11 |
9 |
12 |
3 |
1 |
|
PF 3/8-19 |
Ⅱ |
SYPF062GEX |
2.5P |
16.662 |
75 |
21 |
42 |
14 |
11 |
14 |
3 |
1 |
|
PF 1/2-14 |
Ⅱ |
SYPF082GEX |
2.5P |
20.955 |
87 |
26 |
47 |
18 |
14 |
17 |
4 |
1 |
|
PF 3/4-14 |
Ⅱ |
SYPF122GEX |
2.5P |
26.441 |
96 |
28 |
53 |
23 |
17 |
20 |
4 |
1 |
|
PF 1 -11 |
Ⅱ |
SYPF162GEX |
2.5P |
33.249 |
109 |
33 |
60 |
26 |
21 |
24 |
4 |
1 |
