SU-SP-S-PT (Pipe Threads)

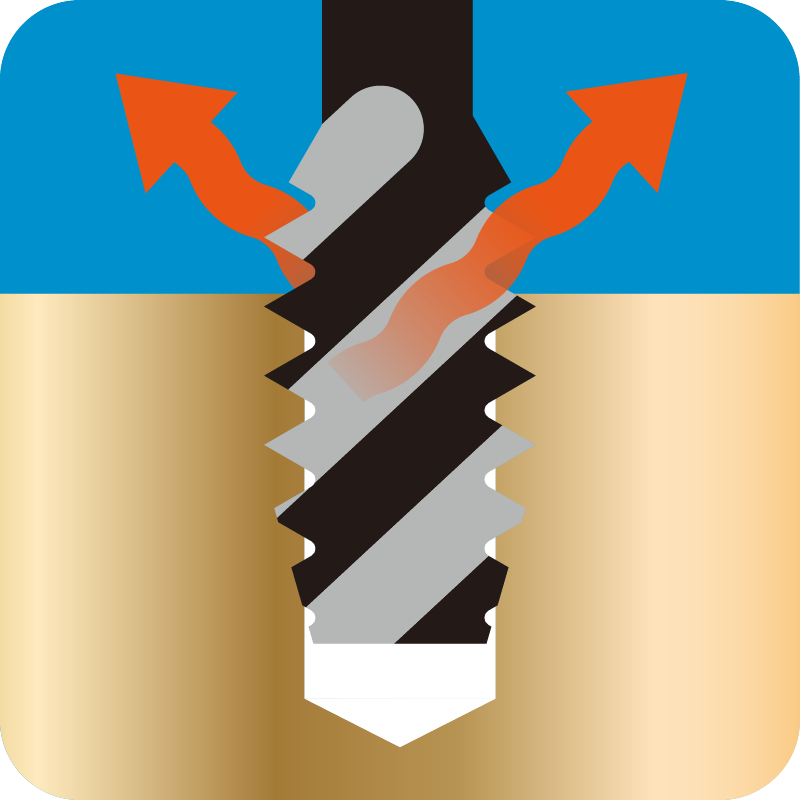

- SU-SP-S-PT is the tap with short thread portion, suitable for stainless steels which tend to workharden and sticky, as well as chrome steels and molybdenum steels, blind hole use.

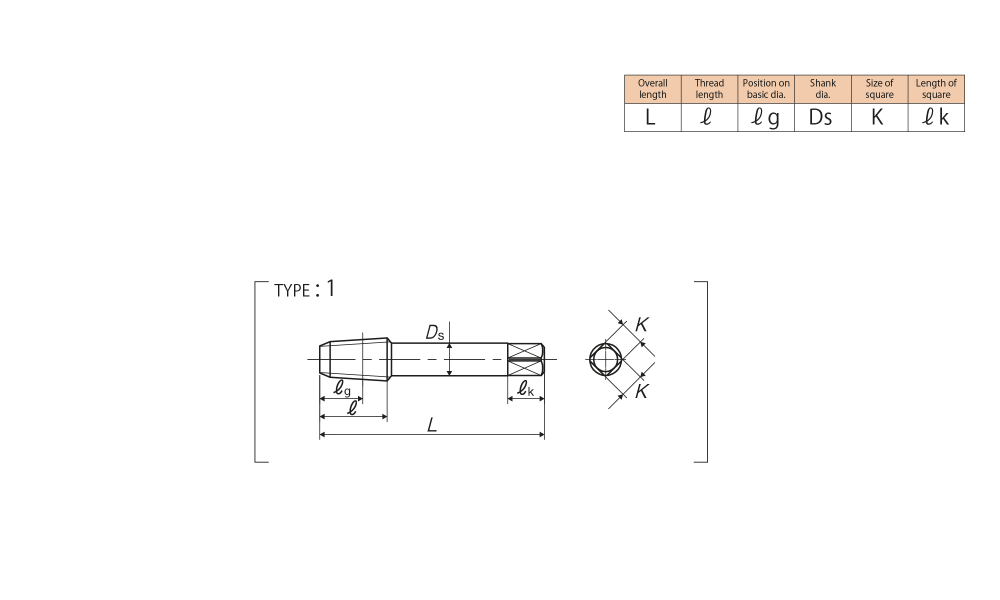

Specification
Tapping Speeds depending on Materials
Segment：1G
|
Size |
Class |
Code |
Chamfer |
Basic major dia (mm) |
L (mm) |
ℓ (mm) |
ℓg (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Pipe Threads |
||||||||||||
|
PT 1/8-28 |
Ⅱ |
SYPT022GEXS |
2P |
9.728 |
55 |
16.5 |
10.5 |
8 |
6 |
9 |
4 |
1 |
|
PT 1/4-19 |
Ⅱ |
SYPT042GEXS |
2P |
13.157 |
62 |
19.5 |
12.5 |
11 |
9 |
12 |
4 |
1 |
|
PT 3/8-19 |
Ⅱ |
SYPT062GEXS |
2P |
16.662 |
65 |
21 |
14 |
14 |
11 |
14 |
4 |
1 |
|
PT 1/2-14 |
Ⅱ |
SYPT082GEXS |
2P |
20.955 |
80 |
27 |
17 |
18 |
14 |
17 |
4 |
1 |
|
PT 3/4-14 |
Ⅱ |
SYPT122GEXS |
2P |
26.441 |
85 |
29 |
19 |
23 |
17 |
20 |
4 |
1 |
|
PT 1 -11 |
Ⅱ |
SYPT162GEXS |
2P |
33.249 |
95 |
35 |
22 |
26 |
21 |
24 |
5 |
1 |
|
PT 1 1/4-11 |
Ⅱ |
SYPT202GEXS |
2P |
41.910 |
105 |
37.5 |
24.5 |
32 |
26 |
30 |
5 |
1 |
|
PT 1 1/2-11 |
Ⅱ |
SYPT242GEXS |
2P |
47.803 |
110 |
38.5 |
25.5 |
38 |
29 |
32 |
6 |
1 |
|
PT 2 -11 |
Ⅱ |
SYPT322GEXS |
2P |
59.614 |
120 |
42.5 |
27.5 |
46 |
35 |
38 |
6 |
1 |
