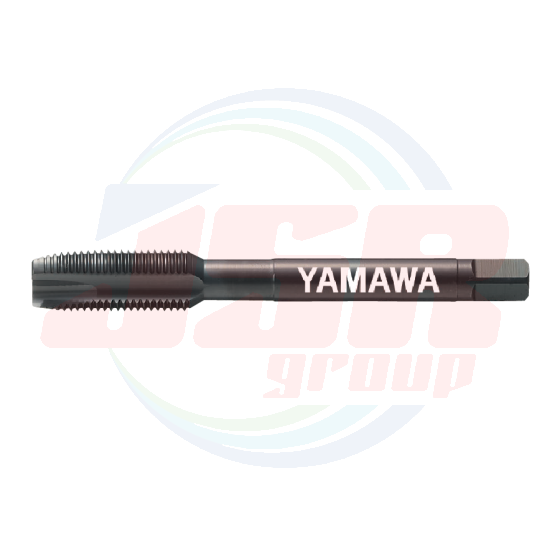

SU-SP3/4NF16 (PUMRU12P) | Spiral Fluted Taps for Stainless Steels | YAMAWA
THB 0.00
พร้อมส่ง
SKU
PUMRU12P
Product Features
- The SU+PO/SU-PO taps are designed for stainless steel that causes work harden easily. The cutting geometry is also suited for tapping through holes in chromium steel and molybdenum steel.
- To prevent chip welding, the tap's surface is oxidized.
Comparison chart
Specification
Tapping Speeds depending on Materials
・Product Name and Size.
| SU＋PO | 〜M2.6 |
| SU−PO | M3〜, all U, all W |
Oversize
Segment：1E
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Unified Threads |
||||||||||||
|
No.2-56UNC |
P1 |
PUMPUN2E |
5P |
42 |
8.1 |
12 |
27 |
3 |
2.5 |
5 |
2 |
3 |
|
No.4-40UNC |
P2 |
PUMQUN4H |
5P |
46 |
9 |
14 |
25 |
4 |
3.2 |
6 |
2 |
3 |
|
No.4-48UNF |
P1 |
PUMPUN4F |
5P |
46 |
9 |
14 |
25 |
4 |
3.2 |
6 |
2 |
3 |
|
No.5-40UNC |
P2 |
PUMQUN5H |
5P |
52 |
11 |
16 |
28 |
5 |
4 |
7 |
3 |
3 |
|
No.5-44UNF |
P1 |
PUMPUN5G |
5P |
52 |
11 |
16 |
28 |
5 |
4 |
7 |
3 |
3 |
|
No.6-32UNC |
P2 |
PUMQUN6J |
5P |
52 |
11 |
17 |
27 |
5 |
4 |
7 |
3 |
3 |
|
No.6-40UNF |
P2 |
PUMQUN6H |
5P |
52 |
11 |
17 |
27 |
5 |
4 |
7 |
3 |
3 |
|
No.8-32UNC |
P2 |
PUMQUN8J |
5P |
60 |
13 |
22 |
31 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.8-36UNF |
P2 |
PUMQUN8I |
5P |
60 |
13 |
22 |
31 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.10-24UNC |
P2 |
PUMQUNAM |
5P |
60 |
13 |
22 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.10-32UNF |
P2 |
PUMQUNAJ |
5P |
60 |
13 |
22 |
32 |
5.5 |
4.5 |
7 |
3 |
3 |
|
No.12-24UNC |
P2 |
PUMQUNCM |
5P |
62 |
15 |
26 |
32 |
6 |
4.5 |
7 |
3 |
3 |
|
No.12-28UNF |
P2 |
PUMQUNCK |
5P |
62 |
15 |
26 |
32 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4-20UNC |
P2 |
PUMQU04N |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
1/4-28UNF |
P2 |
PUMQU04K |
5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
3 |
|
5/16-18UNC |
P3 |
PUMRU05O |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
5/16-24UNF |
P2 |
PUMQU05M |
5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
4 |
|
3/8-16UNC |
P3 |
PUMRU06P |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
3/8-24UNF |
P2 |
PUMQU06M |
5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
4 |
|
7/16-14UNC |
P3 |
PUMRU07Q |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
7/16-20UNF |
P3 |
PUMRU07N |
5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
4 |
|
1/2-13UNC |
P3 |
PUMRU08R |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
1/2-20UNF |
P3 |
PUMRU08N |
5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
4 |
|
9/16-18UNF |
P3 |
PUMRU09O |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
5/8-11UNC |
P3 |
PUMRU10U |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
5/8-18UNF |
P3 |
PUMRU10O |
5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
3 |
4 |
|
3/4-10UNC |
P4 |
PUMSU12V |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
5 |
|
3/4-16UNF |
P3 |
PUMRU12P |
5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
3 |
5 |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | 3/4-16UNF (PUMRU12P) |
| Model | SU+SP/ SU-SP |
| Size | 3/4-16UNF |
| Class | P3 |
| Chamfer | 5P |
| Overall length (L) | 105 |
| Thread length (ℓ) | 33 |
| Thread + Neck length (ℓn) | - |
| Shank length (ℓs) | 50 |
| Shank dia. (Ds) | 15 |
| Size of Square (K) | 12 |
| Length of square (ℓk) | 15 |
