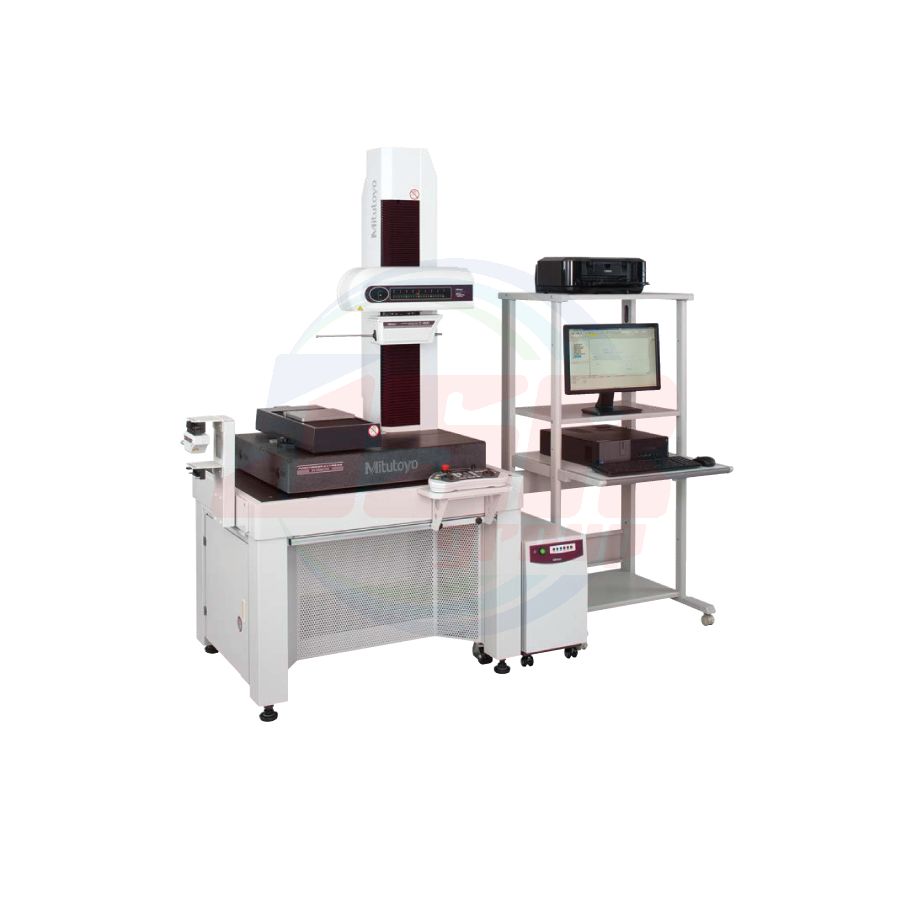

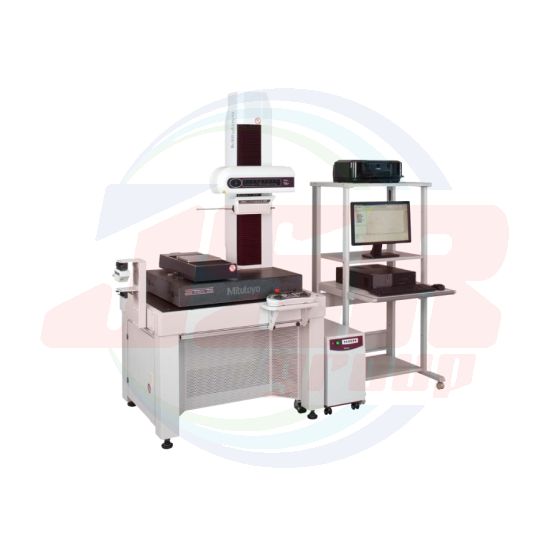

CNC Surface Roughness Instrument
SURFTEST Extreme
SV-3000CNC
A CNC surface roughness instrument suitable for automatic measurements of a large, heavy, complex-shaped workpiece.
Measuring range (X axis): 200 mm
Measuring range (Z1 axis): 800 μm /80 μm/8 μm
SV-3000CNC
| Column type | Standard column type | High column type | ||
| X1 axis | Measuring range | 200 mm | ||
| Resolution | 0.05 μm | |||
| Scale unit | Reflective-type linear encoder | |||
| Drive speed | CNC mode | Max. 200 mm/s | ||
| Joystick control mode | 0 to 50 mm/s | |||
| Measuring speed | 0.02 to 2 mm/s | |||
| Measuring direction | Backward | |||
| Straightness | 0.5 μm/200 mm | |||
| Y-axis table unit | Measuring range | 200 mm | ||
| Resolution | 0.05 μm | |||
| Scale unit | Reflective-type linear encoder | |||
| Drive speed | CNC mode | Max. 200 mm/s | ||
| Joystick control mode | 0 to 50 mm/s | |||
| Maximum loading capacity | 20 kg (the center of gravity should be placed within ø100 mm from the table center) | |||
| Straightness | 0.5 μm/200 mm | |||
| Linear displacement accuracy (at 20 °C, contour mode) | ±(2+2L / 100) μm L: Dimension between two measured points (mm) | |||
| Table size | 200×200 mm | |||
| External dimensions (W×D×H) | 320×646×105 mm | |||
| Mass | 35 kg | |||
| Z2 axis (column) | Travel range | 300 mm | 500 mm | |
| Resolution | 0.05 μm | |||
| Scale unit | Reflective-type linear encoder | |||
| Drive speed | CNC mode | Max. 200 mm/s | ||
| Joystick control mode | 0 to 50 mm/s | |||
| Accuracy (20 °C) | Model without α axis | ±(1.5+|10H| / 1000) μm H: Z2 axis measurement height (mm) | ||
| Model with α axis | − | |||
| Base size (W×D) | 750×600 mm | |||
| Base material | Granite | |||
| Measurement analysis | Refer to the FORMTRACEPAK surface roughness measurement / analysis | |||
| External dimensions (W×D×H) | 800×620×1000 mm | |||
| Mass (excluding Y-axis table unit and Vibration Insulating Stand) | 240 kg | |||
| Operating temperature and humidity ranges | 15 to 25 °C, 20 to 80 % RH (non-condensing) | |||
| Storage temperature and humidity rang | -10 to 50 °C, 5 to 90 % RH (non-condensing) | |||
Note: While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.
α-axis unit (for α-axis installed model)
| Inclination angle | -45° (counterclockwise), +10° (clockwise) |
| Rotating speed under inclined condition | 1 rpm |
| Resolution of inclination angle | 0.000225° |
| Mass | 9 kg |
Vibration Insulating Stand (Required Option)
| Vibration insulating mechanism | Diaphragm air spring |
| Natural frequency | 2.5 to 3.5 Hz |
| Damping mechanism | Orifice |
| Leveling mechanism | Automatic control with mechanical valves |
| Air supply pressure | 0.4 MPa |
| Allowable loading capacity | 350 kg |
| External dimensions (W×D×H) | 1000×895×715 mm |
| Mass | 280 kg |
