Product Features
Applicable to wide range of work materials
SVSP Recommendation
Work material | Recommended tapping speed (m/min) |
Low carbon steels S20C/SS400 | 10~20 |
Medium carbon steels S25C~S45C | 10~15 |
High carbon steels S45C~ | 10~15 |
Alloy steels SCM | 5~10 |
Stainless steels SUS304 | 5~10 |
Aluminum alloy castings/Zinc alloy castings AC/ADC/ZDC |
5~10 |

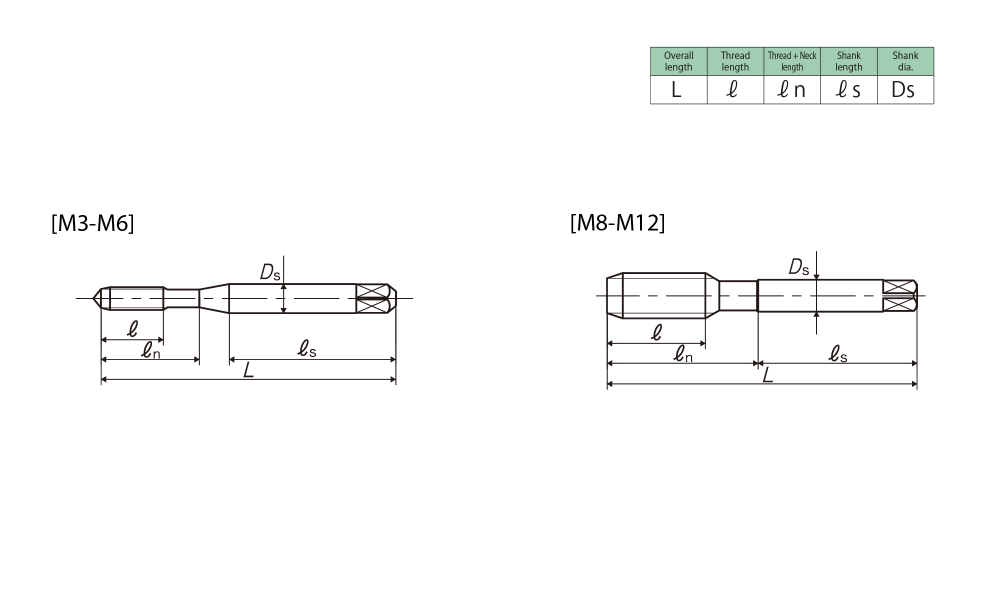

Specification
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
No. of flutes |
For Metric Threads |
|||||||||
M3×0.5 |
P2 |
SY3.0GQNEV |
2.5P |
46 |
9 |
14 |
26 |
4 |
3 |
M3.5×0.6 |
P2 |
SY3.5HQNEV |
2.5P |
52 |
11 |
16 |
29 |
5 |
3 |
M4×0.7 |
P3 |
SY4.0IRNEV |
2.5P |
52 |
11 |
17 |
29 |
5 |
3 |
M5×0.8 |
P3 |
SY5.0KRNEV |
2.5P |
60 |
13 |
22 |
33 |
5.5 |
3 |
M6×1 |
P3 |
SY6.0MRNEV |
2.5P |
62 |
15 |
26 |
33 |
6 |
3 |
M8×1.25 |
P3 |
SY8.0NRNEV |
2.5P |
70 |
19 |
- |
36 |
6.2 |
3 |
M10×1.5 |
P3 |
SY010ORNEV |
2.5P |
75 |
23 |
- |
38 |
7 |
3 |
M10×1.25 |
P3 |
SY010NRNEV |
2.5P |
75 |
23 |
- |
38 |
7 |
3 |
M10×1 |
P3 |
SY010MRNEV |
2.5P |
75 |
23 |
- |
38 |
7 |
3 |
M12×1.75 |
P3 |
SY012PRNEV |
2.5P |
82 |
26 |
- |
42 |
8.5 |
3 |
M12×1.5 |
P3 |
SY012ORNEV |
2.5P |
82 |
26 |
- |
42 |
8.5 |
3 |
M12×1.25 |
P3 |
SY012NRNEV |
2.5P |
82 |
26 |
- |
42 |
8.5 |
3 |
M12×1 |
P3 |
SY012MRNEV |
2.5P |
82 |
26 |
- |
42 |
8.5 |
3 |
