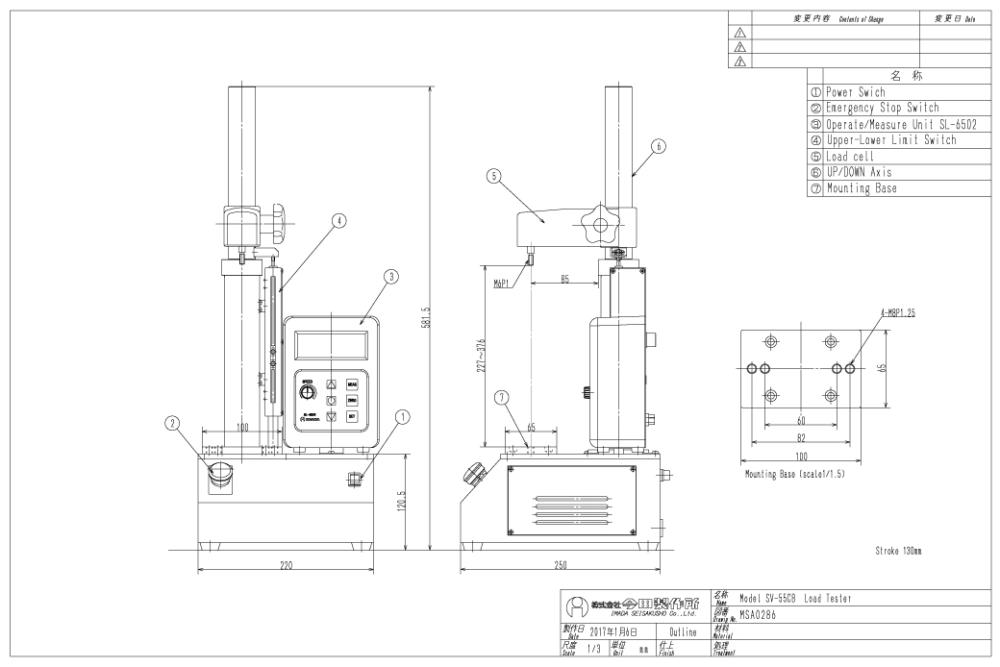

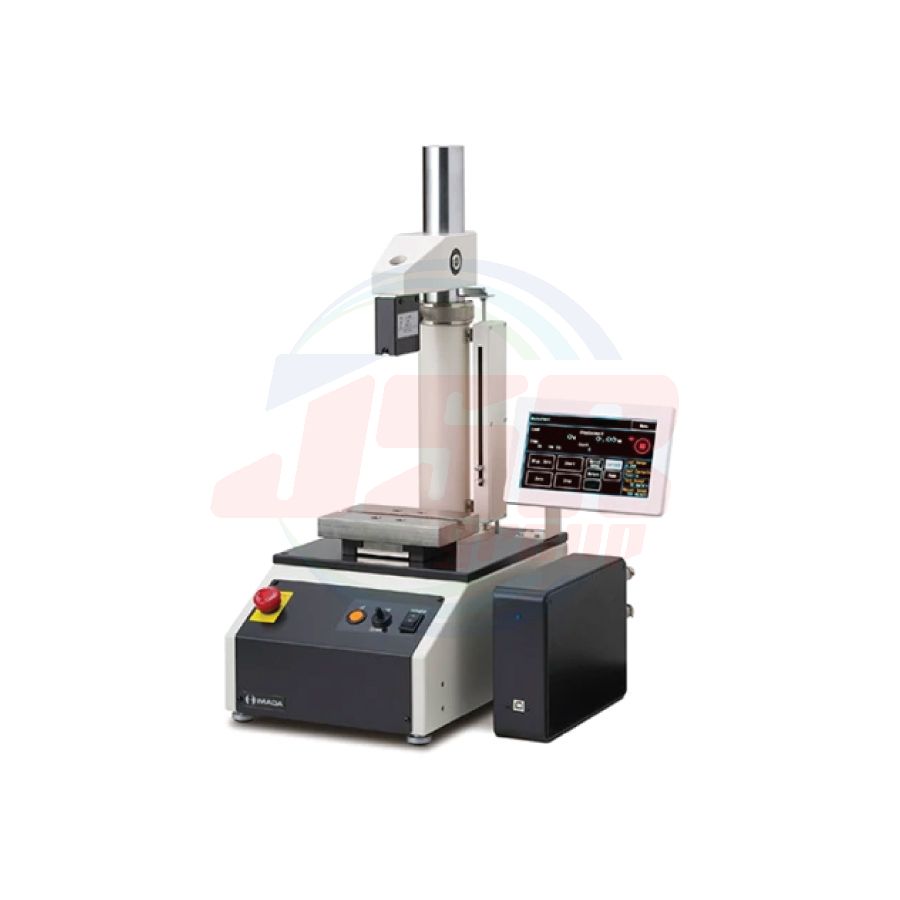

The SVZ-201F type is the electric universal testing machine that can measure various loads up to maximum load of 2kN.
It is a compact size and medium capacity testing machine with improved drive efficiency.
※1 "Sample mounting span" is the distance between the loadcell and mounting table when the loadcell-head is placed at the highest position on the axis.
※2 Mounting screw size of the loadcell depend on the maximum load. Under 500N : M6P1 Male / 1kN or more : M12P1.75 Female.
※3 For options and custom orders, Model SL-6003 measurement amplifier is "Type B" with the width of 88mm.
■ Characteristics
◎It is force middle class. The operation is easy due to in the single column UP / DOWN axis.
◎The drive type of the ball screw by single axis.
■ Usage example
◎Material tests of middle load.
◎Various kinds of evaluation tests of machine parts and the products.
■ Accessories / option
◎Output of ANALOG
Option to output load and displacement values at 10V/FS for connection to analog equipment.
◎Special Speed
◎Software
◎Protection cover
◎Digital Printer
◎Transformer
■ Standard specification
| Item | Specification |
|---|---|
| Model | SVZ-201F□(※1) |
| Maximum load | 2kN |
| Minimum Unit | [Combination of Load Range according to the model] / [Specification of Load range] Reference |
| Load Display | |
| Load Precision | JIS1 calss(indication value ± 1% range) |
| Displacement Minimum Unit | 0.01mm |
| Drive type | Brush-less Motor |
| Speed Range | 5～500mm/min |
| Stroke | 130mm |
| Sample Mounting Span | 175～273mm |
| Distance of Sample to Column | 75mm |
| Table size | 150×100mm (With T-groove) |
| Safety Device | Optional setting Upper and lower Limit |
| Over-load prevention function | |
| Basic Function | Memory function of the test conditions |
| Peak Hold function | |
| Cycle mode function | |
| Detect function of Break point | |
| Detect function of Start Point | |
| Auto Feed function | |
| Auto Start point Return function | |
| Judgment function | |
| Output(※2) | USB |
| Power supply | AC100V 5A |
| Weight | Approx.29kg |
| Size(※3) | W380×D362×H602mm |
※1 The model symbol is put in □. Refer to [Combination of Load Range according to the model].
※2 Analog output and Printer output can be installed with option.
※3 This listed "Hight" is measured with the UP/DOWN axis at the lower limit.
■ Combination of Load Range according to the model
| Model | Usable Range | Setting Load Range | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 2kN | 1kN | 500N | 200N | 100N | 50N | 20N | 10N | ||
| SVZ-201F-200R1 | 400N～2kN | ● | – | – | – | – | – | – | – |
| SVZ-201F-200R2 | 100N～2kN | ● | – | ● | – | – | – | – | – |
| SVZ-201F-200R3 | 20N～2kN | ● | – | ● | – | ● | – | – | – |
| SVZ-201F-100R1 | 200N～1kN | – | ● | – | – | – | – | – | – |
| SVZ-201F-100R2 | 40N～1kN | – | ● | – | ● | – | – | – | – |
| SVZ-201F-100R3 | 10N～1kN | – | ● | – | ● | – | ● | – | – |
| SVZ-201F-50R1 | 100N～500N | – | – | ● | – | – | – | – | – |
| SVZ-201F-50R2 | 20N～500N | – | – | ● | – | ● | – | – | – |
| SVZ-201F-50R3 | 4N～500N | – | – | ● | – | ● | – | ● | – |
| SVZ-201F-20R1 | 40N～200N | – | – | – | ● | – | – | – | – |
| SVZ-201F-20R2 | 10N～200N | – | – | – | ● | – | ● | – | – |
| SVZ-201F-20R3 | 2N～200N | – | – | – | ● | – | ● | – | ● |
■ Specifications of Load Range
| Load Range | Maximum Load Display | Minimum Unit |
|---|---|---|
| 2kN | 2000N | 1N |
| 1kN | 1000.0N | 0.1N |
| 500N | 500.0N | |
| 200N | 200.0N | |
| 100N | 100.00N | 0.01N |
| 50N | 50.00N | |
| 20N | 20.00N | |
| 10N | 10.000N | 0.001N |
※1 The usable range is recommended at 20～100% of each Setting Load Range.
※2 It is possible as an option to add Load Range other than the above listed.
