T-SQUARE | NIIGATA SEIKI (SK)
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
SK-TS
USE :
• For general engineering work or marking work
MATERIAL :
• Machine grade carbon steel
FEATURES :
• The blade and beam are permanently secured by rivets
Squareness ± (20 + L 10 ) µm (L: Nominal Size)

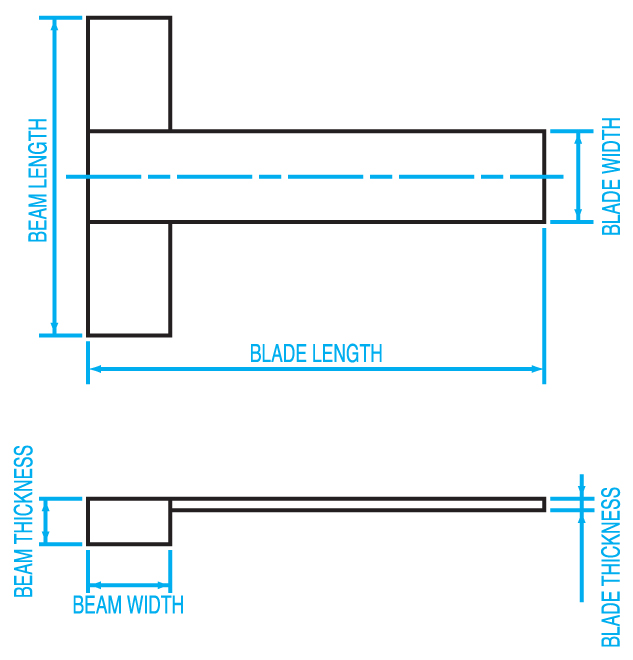

| Order Code | Model No. | Nominal Size (mm) | Blade Length (mm) | Blade Width (mm) | Blade Thickness (mm) | Beam Length (mm) | Beam Width (mm) | Beam Thickness (mm) | Squareness (±mm) | Weight |
| TS-100 | 003201 | 100 | 100 | 20 | 2.5 | 70 | 18 | 10 | 0.03 | 130g |
| TS-150 | 003202 | 150 | 150 | 24 | 3 | 100 | 20 | 12 | 0.035 | 260g |
| TS-200 | 003203 | 200 | 200 | 29 | 3.5 | 140 | 24 | 14 | 0.04 | 500g |
| TS-250 | 003204 | 250 | 250 | 29 | 175 | 26 | 16 | 0.045 | 745g | |
| TS-300 | 003205 | 300 | 300 | 35 | 4 | 200 | 30 | 18 | 0.05 | 1.2kg |
| TS-400 | 003207 | 400 | 400 | 40 | 5 | 260 | 34 | 20 | 0.06 | 2.0kg |
| TS-500 | 003209 | 500 | 500 | 46 | 330 | 36 | 22 | 0.07 | 2.9kg | |
| TS-600 | 003211 | 600 | 600 | 50 | 360 | 38 | 24 | 0.08 | 3.6kg | |
| TS-1000 | 003219 | 1000 | 1000 | 65 | 8 | 640 | 45 | 30 | 0.12 | 10.9kg |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
