Thickness Gages SERIES 184 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 1,320.38
พร้อมส่ง
SKU
THG
• Metric thickness gages are available with tapered leaves.
• Each leaf is marked with its thickness.
• Each leaf is detachable if necessary.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Composition of leaves | Remarks |
| 184-313S | 0.05 - 1 | 28 leaves: 0.05 - 0.15 mm by 0.01 mm, 0.2 - 1 mm by 0.05 mm | — |
| 184-303S | 28 leaves: 0.05 - 0.15 mm by 0.01 mm, 0.2 - 1 mm by 0.05 mm | Long leaf | |
| 184-304S | 0.05 - 1 | 20 leaves: 0.05 - 1 mm by 0.05 mm | Long leaf |
| 184-305S | 0.05 - 1 | 13 leaves: 0.05 - 0.3 mm by 0.05 mm, 0.4 - 1 mm by 0.1 mm | — |
| 184-301S | 13 leaves: 0.05 - 0.3 mm by 0.05 mm, 0.4 - 1 mm by 0.1 mm | Long leaf | |
| 184-306S | 0.05 - 0.8 | 10 leaves: 0.05 - 0.2 mm by 0.05 mm, 0.3 - 0.8 mm by 0.1 mm | — |
| 184-308S | 10 leaves: 0.05 - 0.2 mm by 0.05 mm, 0.3 - 0.8 mm by 0.1 mm | Long leaf | |
| 184-307S | 0.03 - 0.5 | 13 leaves: 0.03 - 0.1 mm by 0.01 mm, 0.2 - 0.5 mm by 0.1 mm, 0.15 mm | — |
| 184-302S | 13 leaves: 0.03 - 0.1 mm by 0.01 mm, 0.2 - 0.5 mm by 0.1 mm, 0.15 mm | Long leaf |
| แบรนด์สินค้า | MITUTOYO |
|---|

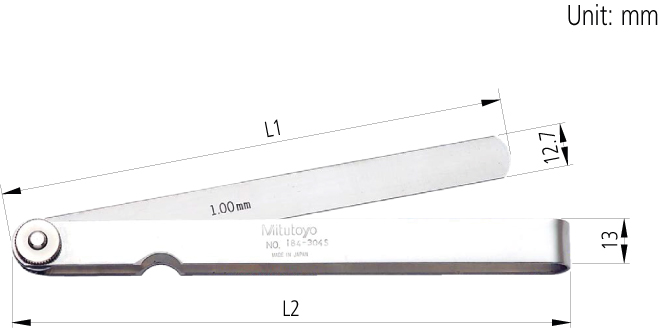

| Order No. | L1 | L2 |
| 184-313S | 100 | 106 |
| 184-303S | 150 | 156 |
| 184-304S | 150 | 146 |
| 184-305S | 100 | 106 |
| 184-301S | 150 | 156 |
| 184-306S | 100 | 106 |
| 184-308S | 150 | 156 |
| 184-307S | 100 | 106 |
| 184-302S | 150 | 156 |
