Thickness Gages SERIES 547 - Standard Type (Resolution: 0.01 mm) | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 10,484.93
พร้อมส่ง
SKU
IDSX
Standard Type (Resolution: 0.01 mm)
• Thickness gages can quickly measure the thickness of thin products such as paper and felt.
• Using a ceramic contact and anvil, there is no need to worry about rust. (except for 547-401A)
Metric
| Order No. | Resolution (mm) |
Range (mm) |

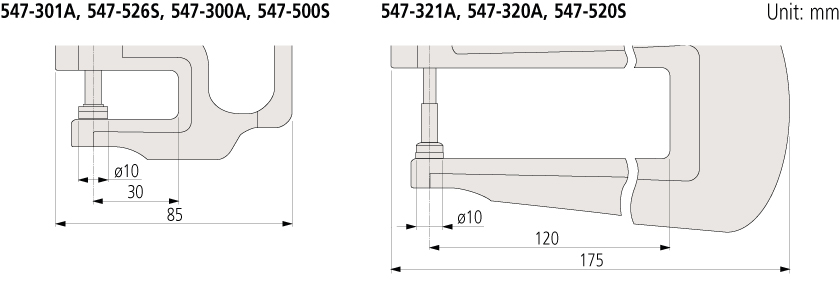

Measuring depth (mm) |
Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil (μm) |
Accuracy (μm) |
Measuring force (N) |
Mass (g) |
Remarks |
| 547-301A | 0.01 | 0 - 10 | 30 | ø10 Flat | 10 | ±20 | 1.5 or less | 245 | Standard, ceramic point / anvil |
| 547-321A | 0.01 | 0 - 10 | 120 | ø10 Flat | 10 | ±20 | 1.5 or less | 385 | Deep throat, ceramic point / anvil |
Inch / Metric
| Order No. | Resolution | Range (in) |
Measuring depth | Contact point, Anvil | Parallelism of Contact point, Anvil |
Accuracy | Measuring force (N) |
Mass (g) |
Remarks |
| 547-526S* | 0.0001 in/0.001 mm | 0 - 0.47* | 30 mm (1.18 in) | ø10 mm (ø0.39 in) Flat | 0.0002 in/0.005 mm | ±0.0002 in/±5 μm | 1.5 or less | 225 | Standard, ceramic point / anvil |
| 547-300A | 0.0005 in/0.01 mm | 0 - 0.4 | 30 mm (1.18 in) | ø10 mm (ø0.39 in) Flat | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 245 | Standard, ceramic point / anvil |
| 547-500S* | 0.0005 in/0.01 mm | 0 - 0.47* | 30 mm (1.18 in) | ø10 mm (ø0.39 in) Flat | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 225 | Standard, ceramic point / anvil |
| 547-320A | 0.0005 in/0.01 mm | 0 - 0.4 | 120 mm (4.72 in) | ø10 mm (ø0.39 in) Flat | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 385 | Deep throat, ceramic point / anvil |

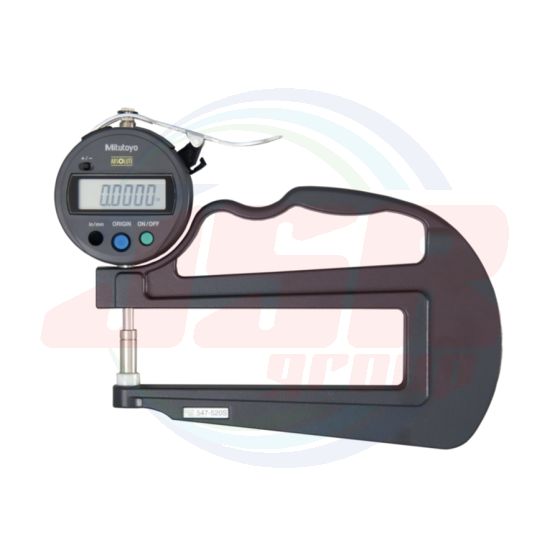

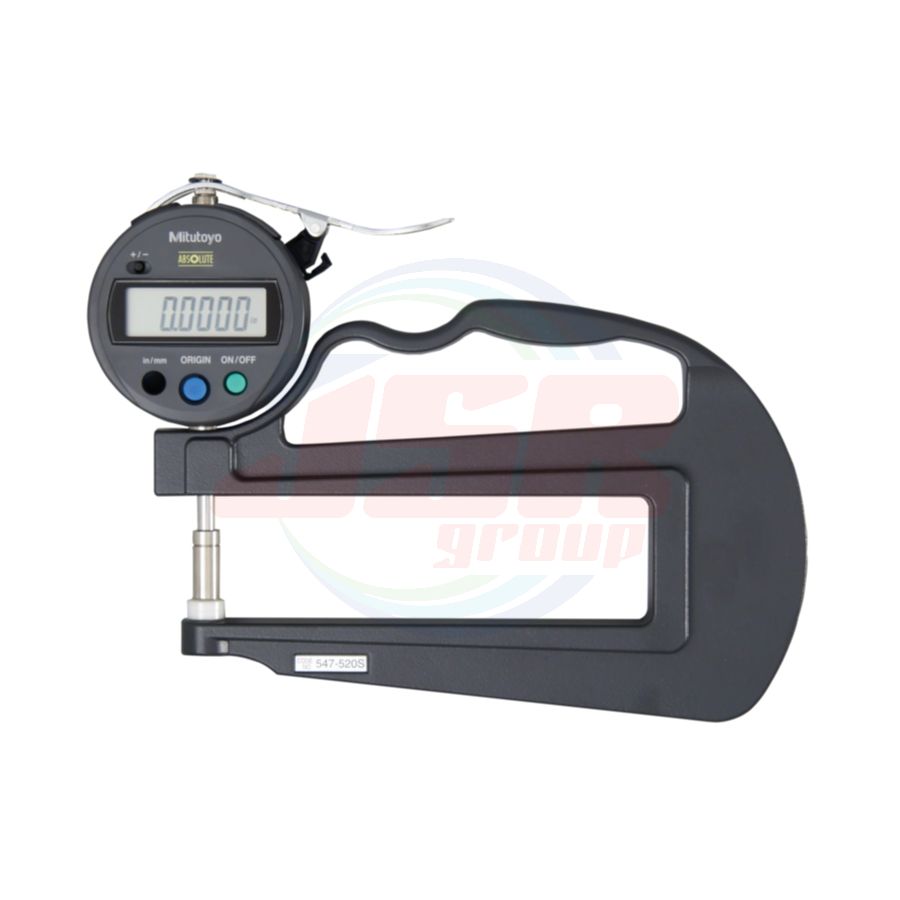

| 547-520S* | 0.0005 in/0.01 mm | 0 - 0.47* | 120 mm (4.72 in) | ø10 mm (ø0.39 in) Flat | 0.005 in/0.01 mm | ±0.001 in/±20 μm | 1.5 or less | 380 | Deep throat, ceramic point / anvil |
* Using ID-SX Digimatic indicator.
| แบรนด์สินค้า | MITUTOYO |
|---|
