Standard Type (Graduation: 0.01 mm)
• Integrated moulding of the bezel and crystal ensures protection against water and oil penetration via the front face.
Metric
Order No. | Graduation (mm) |
Range (mm) |

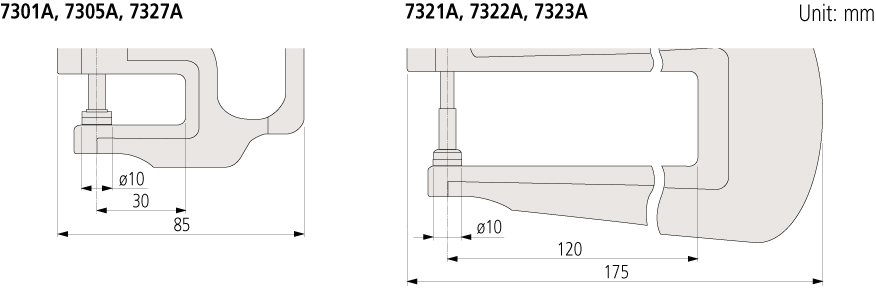

Measuring depth (mm) |
Contact point, Anvil (mm) |
Parallelism of Contact point, Anvil (μm) |
Accuracy (μm) |
Measuring force (N) |
Mass (g) |
Remarks |
7327A | 0.001 | 0 - 1 | 30 | ø10 Flat | 5 | ±5 | 1.5 or less | 225 | Fine dial reading, ceramic point / anvil |

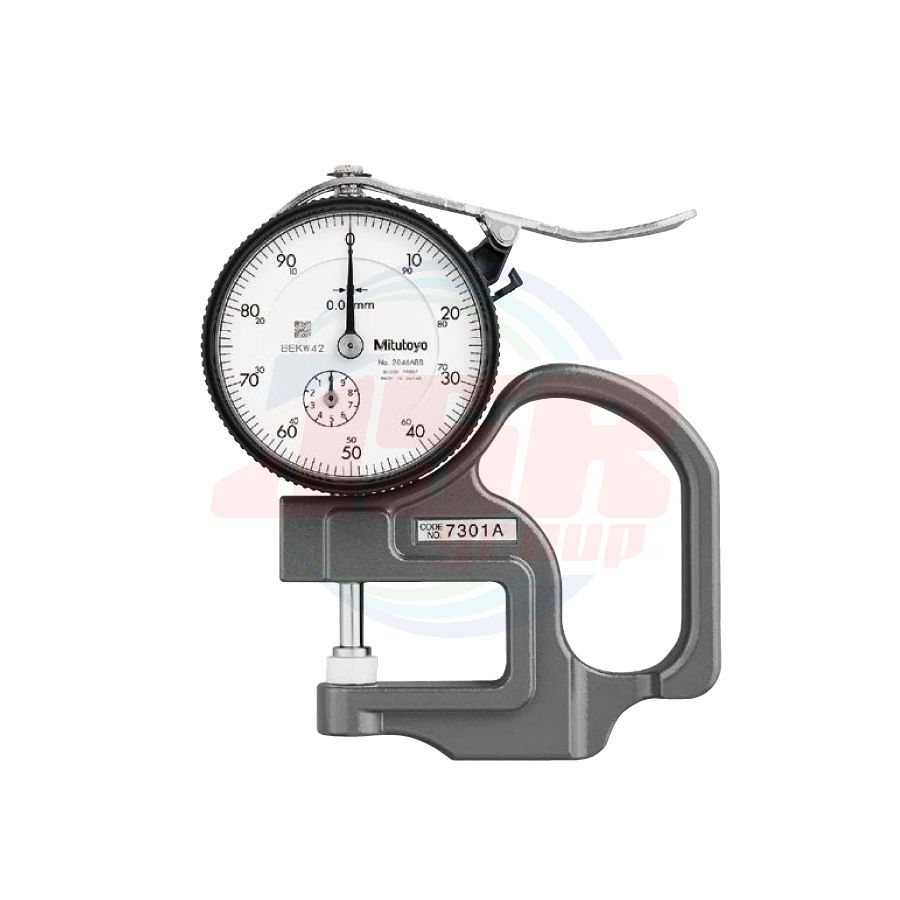

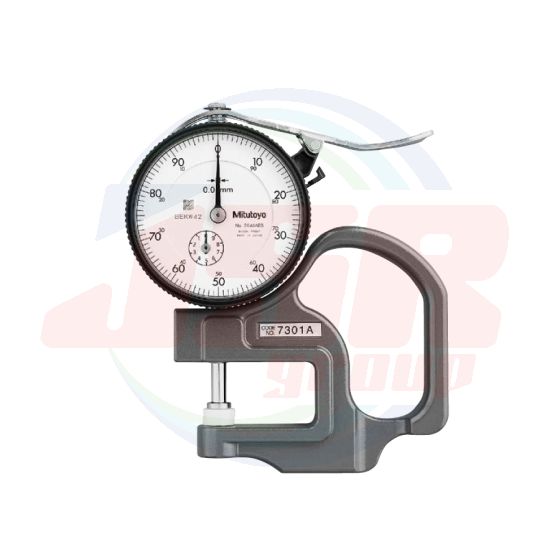

7301A | 0.01 | 0 - 10 | 30 | ø10 Flat | 5 | ±15 | 1.4 or less | 205 | Standard, ceramic point / anvil |
7305A | 0.01 | 0 - 20 | 30 | ø10 Flat | 5 | ±20 | 2.0 or less | 220 | Standard, ceramic point / anvil |
7321A | 0.01 | 0 - 10 | 120 | ø10 Flat | 5 | ±15 | 1.4 or less | 370 | Deep throat, ceramic point / anvil |
7323A | 0.01 | 0 - 20 | 120 | ø10 Flat | 5 | ±20 | 2.0 or less | 370 | Deep throat, ceramic point / anvil |
Note: The dial indicator needs to be reset when a contact point is replaced.
แบรนด์สินค้า | MITUTOYO |
---|---|
Graduation | 0.01 mm |
