THICKNESS GAUGE | SK NIIGATASEIKI
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
SK-THICKNESS

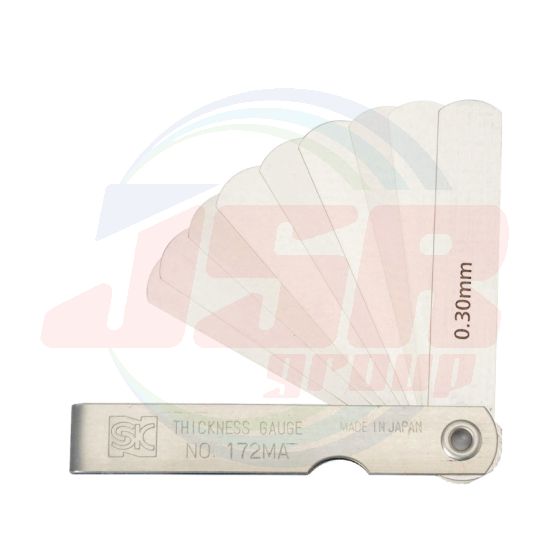

THICKNESS GAUGE
Suitable for measuring slight gaps where it is difficult to do with other measuring instruments
*Each of leaf can be detached by unscrewing the clasp（ except 172 series）
USE
● For measurement of gap width
MATERIAL
●Carbon tool steel（ Hardened）
FEATURES
● Enables precise inspection by inserting the gauge into the gap between two flat surfaces
● Suitable for measuring gap between piston and cylinder of automotive engine
SPECIFICATIONS
● Leaf width： 12.7mm
※White powder remains on the surface of the product is antirust agent
| Order No. | Model No. | Leaf Length （mm） |
Pieces/ Set | Nominal Size （mm） |
Weight (g) |
| 111032 | 172MA | 75 | 9 | 0.04 0.05 0.06 0.07 0.08 0.10 0.15 0.20 0.30 | 30 |
| 111033 | 172MB | 100 | 30 | ||
| 111034 | 172MC | 150 | 50 | ||
| 110970 | 172MD | 230 | 70 | ||
| 110971 | 172ME | 300 | 90 | ||
| 110972 | 100MR | 100 | 10 | 0.03 0.04 0.05 0.08 0.10 0.15 0.20 0.25 0.30 0.40 | 40 |
| 110973 | 150MR | 150 | 60 | ||
| 110974 | 100MK | 100 | 10 | 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 | 30 |
| 110975 | 150MK | 150 | 40 | ||
| 111038 | 60M | 75 | 19 | 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.70 0.80 1.00 |
60 |
| 111039 | 100MY | 100 | 80 | ||
| 111040 | 150MY | 150 | 120 | ||
| 111035 | 65M | 75 | 25 | 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00 |
80 |
| 111036 | 100MZ | 100 | 100 | ||
| 111037 | 150MZ | 150 | 150 | ||
| 111031 | 72M | 75 | 12 | 0.04 0.05 0.06 0.07 0.08 0.10 0.15 0.20 0.30 1.00 2.00 3.00 |
70 |
| 111044 | 100MT | 100 | 100 | ||
| 111045 | 150MT | 150 | 140 | ||
| 110976 | 100ML | 100 | 19 | 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 |
80 |
| 110977 | 150ML | 150 | 120 | ||
| 110978 | 80M | 75 | 13 | 0.03 0.04 0.05 0.06 0.07 0.08 0.10 0.15 0.20 0.30 1.00 2.00 3.00 |
60 |
| 111046 | 100MX | 100 | 90 | ||
| 111047 | 150MX | 150 | 140 | ||
| 111048 | 100MH | 100 | 10 | 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 | 80 |
| 111049 | 150MH | 150 | 110 |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
