SKU
SK-CS

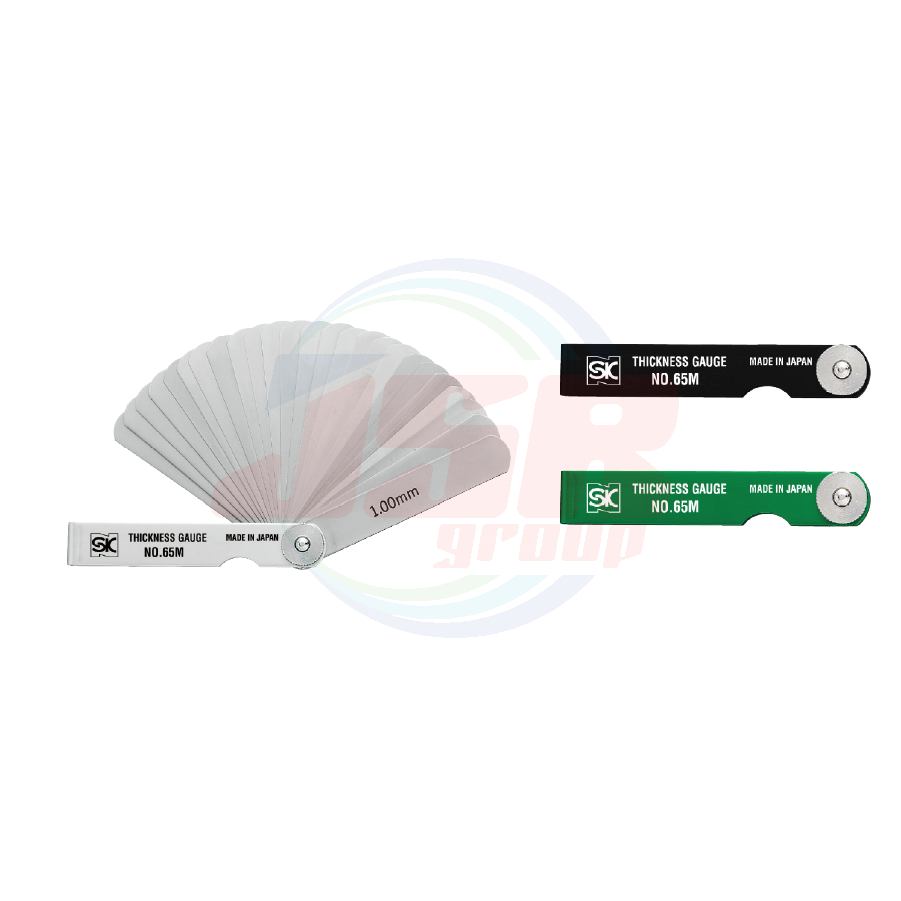

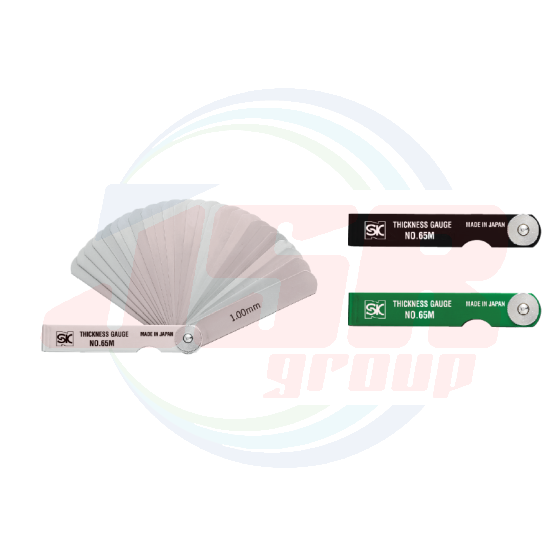

THICKNESS GAUGE WITH COLOR SLEEVE
Same accuracy as regular THICKNESS GAUGE with three different color options - white, black and green
USE
● For measurement of gap width
MATERIAL
● Carbon tool steel
FEATURES
● Enables precise inspection by inserting the gauge into the gap between two flat surfaces
● Suitable for measuring gap between piston and cylinder of automotive engine
● Each of the gauges can be detached by unscrewing the clip of the cover (except 172 series)
● Leaf Width: 12.7mm
| Order No. | Model No. | Leaf Length (mm) | Pieces/Set | Size (mm) | Weight |
|---|---|---|---|---|---|
| 110601 | CS-172MA (W) | 75 | 9 | 0.04 0.05 0.06 0.07 0.08 0.10 0.15 0.20 0.30 |
30g |
| 110602 | CS-172MA (B) | 30g | |||
| 110603 | CS-172MA (G) | 30g | |||
| 110604 | CS-172MB (W) | 100 | 30g | ||
| 110605 | CS-172MB (B) | 30g | |||
| 110606 | CS-172MB (G) | 30g | |||
| 110607 | CS-172MC (W) | 150 | 50g | ||
| 110608 | CS-172MC (B) | 50g | |||
| 110609 | CS-172MC (G) | 50g | |||
| 110616 | CS-100MR (W) | 100 | 10 | 0.03 0.04 0.05 0.08 0.10 0.15 0.20 0.25 0.30 0.40 |
40g |
| 110617 | CS-100MR (B) | 40g | |||
| 110618 | CS-100MR (G) | 40g | |||
| 110619 | CS-150MR (W) | 150 | 60g | ||
| 110620 | CS-150MR (B) | 60g | |||
| 110621 | CS-150MR (G) | 60g | |||
| 110622 | CS-100MK (W) | 100 | 10 | 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 |
30g |
| 110623 | CS-100MK (B) | 30g | |||
| 110624 | CS-100MK (G) | 30g | |||
| 110625 | CS-150MK (W) | 150 | 40g | ||
| 110626 | CS-150MK (B) | 40g | |||
| 110627 | CS-150MK (G) | 40g | |||
| 110628 | CS-60M (W) | 75 | 19 | 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.70 0.80 1.00 |
60g |
| 110629 | CS-60M (B) | 60g | |||
| 110630 | CS-60M (G) | 60g | |||
| 110631 | CS-100MY (W) | 100 | 80g | ||
| 110632 | CS-100MY (B) | 80g | |||
| 110633 | CS-100MY (G) | 80g | |||
| 110634 | CS-150MY (W) | 150 | 120g | ||
| 110635 | CS-150MY (B) | 120g | |||
| 110636 | CS-150MY (G) | 120g | |||
| 110637 | CS-65M (W) | 75 | 25 | 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 0.12 0.13 0.14 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00 |
80g |
| 110638 | CS-65M (B) | 80g | |||
| 110639 | CS-65M (G) | 80g | |||
| 110640 | CS-100MZ (W) | 100 | 100g | ||
| 110641 | CS-100MZ (B) | 100g | |||
| 110642 | CS-100MZ (G) | 100g | |||
| 110643 | CS-150MZ (W) | 150 | 150g | ||
| 110644 | CS-150MZ (B) | 150g | |||
| 110645 | CS-150MZ (G) | 150g | |||
| 110646 | CS-72M (W) | 75 | 12 | 0.04 0.05 0.06 0.07 0.08 0.10 0.15 0.20 0.30 1.00 2.00 3.00 |
70g |
| 110647 | CS-72M (B) | 70g | |||
| 110648 | CS-72M (G) | 70g | |||
| 110649 | CS-100MT (W) | 100 | 100g | ||
| 110650 | CS-100MT (B) | 100g | |||
| 110651 | CS-100MT (G) | 100g | |||
| 110652 | CS-150MT (W) | 150 | 140g | ||
| 110653 | CS-150MT (B) | 140g | |||
| 110654 | CS-150MT (G) | 140g | |||
| 110655 | CS-100ML (W) | 100 | 19 | 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 |
80g |
| 110656 | CS-100ML (B) | 80g | |||
| 110657 | CS-100ML (G) | 80g | |||
| 110658 | CS-150ML (W) | 150 | 120g | ||
| 110659 | CS-150ML (B) | 120g | |||
| 110660 | CS-150ML (G) | 120g | |||
| 110661 | CS-80M (W) | 75 | 13 | 0.03 0.04 0.05 0.06 0.07 0.08 0.10 0.15 0.20 0.30 1.00 2.00 3.00 |
60g |
| 110662 | CS-80M (B) | 60g | |||
| 110663 | CS-80M (G) | 60g | |||
| 110664 | CS-100MX (W) | 100 | 90g | ||
| 110665 | CS-100MX (B) | 90g | |||
| 110666 | CS-100MX (G) | 90g | |||
| 110667 | CS-150MX (W) | 150 | 140g | ||
| 110668 | CS-150MX (B) | 140g | |||
| 110669 | CS-150MX (G) | 140g | |||
| 110670 | CS-100MH (W) | 100 | 10 | 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 |
80g |
| 110671 | CS-100MH (B) | 80g | |||
| 110672 | CS-100MH (G) | 80g | |||
| 110673 | CS-150MH (W) | 150 | 110g | ||
| 110674 | CS-150MH (B) | 110g | |||
| 110675 | CS-150MH (G) | 110g |
`
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
