Thread Pitch Gages SERIES 188 | MITUTOYO

ราคาต่ำสุด THB 0.00 THB 0.00 ราคาปรกติ THB 678.38
พร้อมส่ง
SKU
PCG

• Thread pitch is stamped on each gage.

• Metric, Unified, and Whitworth screw pitch gages.

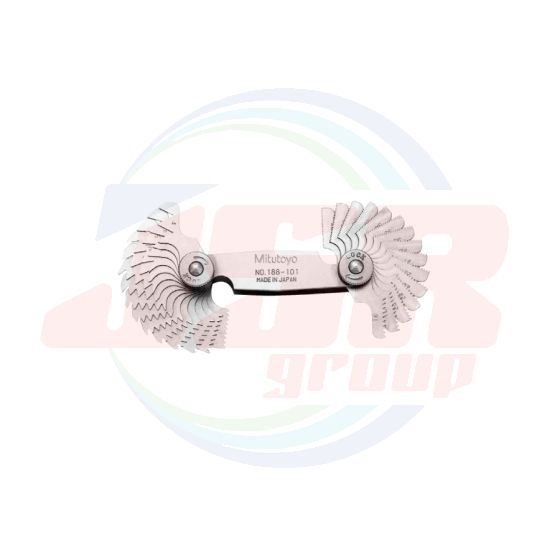

Thread Pitch Gages SERIES 188 | MITUTOYO
Thread Pitch Gages SERIES 188 | MITUTOYO

SPECIFICATIONS

Metric Screw Pitch Gages

Order No. Range (mm) Integration pitch error Composition of leaves
188-130 0.35 - 6 ±0.05 mm 22 leaves: 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm and 60° angle gage
188-122 0.4 - 7 21 leaves: 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm
188-121 0.4 - 7 18 leaves: 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm



Unified Screw Pitch Gages

Order No. Range (mm) Integration pitch error Composition of leaves
188-111 4 - 42 TPI ±0.002 in 30 leaves: 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI

Note: Metric and Unified Pitch Gage Set (188-151) is available.



Metric and Unified Screw Pitch Gage Se

Order No. Range (mm) Integration pitch error Composition of leaves
188-151 0.4 - 7 mm
/4 - 42 TPI
±0.05 mm/
±0.002 in
51 leaves: Set of 188-122 and 188-111



Whitworth Screw Pitch Gages

Order No. Range (mm) Integration pitch error Composition of leaves
188-101 4 - 42 TPI ±0.002 in 30 leaves: 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI
188-102 4 - 60 TPI 28 leaves: 4, 41/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI
