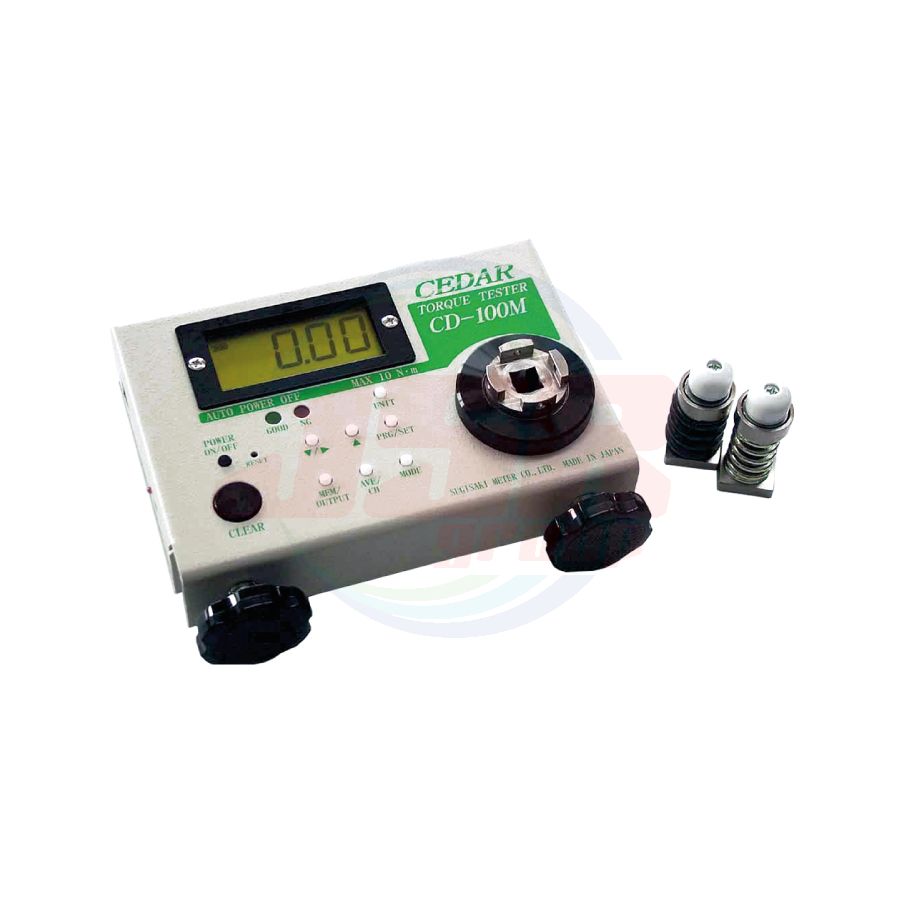

Torque tester
Suitable for daily inspection of electric screw driver
Using convensional joint (SJ joint (PAT))
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings by switch channels even if the tightening term changes.
High durability against high torque loaded unexpectedly. (triple the durability of conventional model).
Also, the attached adapter does not disassemble the joint due to excessive rewinding.It can be used and managed in a conventional way.
High durability against high torque loaded unexpectedly. (triple the durability of conventional model).
Also, the attached adapter does not disassemble the joint due to excessive rewinding.It can be used and managed in a conventional way.
- Show "Measurement mode", "Measurement unit","maximum, minimum, average"
- Switchable measurement unit
- Enable to save 5 sets of settings such as upper limit and lower limit
- 800 items of memory data
- Real-time output About every 1/180 seconds
- Data acquisition software can be downloaded for free
Specification
| Order No. | CD-100M | CD-10M |
| Measuring range (at the time of Track) |
0.10～10 N・m | 0.010～1 N・m |
| 1.0～100 kgf・cm | 0.10～10 kgf・cm | |
| 1.0～90 lbf・in | 0.10～9 lbf・in | |
| Accuracy | ±0.5％ or ±2digit | |
| Display | The 3.5 figures digital display of LCD | |
| The measurement direction | CW-CCW (right and left) | |
| Measurement Mode | T-R(track) , P-P(peak to peak) , P-D(Peak-Down) , C(Real-time Output) | |
| High and low limits judging function | High and low value are measurement within the limits, and can be set up. | |
| The Maximum, the minimum, and the average value display | It displays the maximum, the minimum, average value, (As opposed to a maximum of 800 data) |
|
| Real-time Output | Load torque value is outputted every about 1/180 second. | |
| Data memory counts | 800 data | |
| Data output | ASCII format (baud rate 19200) | |
| Auto-power-off | After the neglect during 10 minutes | |
| Power supply | Ni-MH chargeable battery | |
| Charge time / use time | Charge about 3 hours / About 12 hours use consecutive at full charge time | |
| Socket fit mouth | □ 20mm/ □9.5mm | |
| indicator size/ weight | 160（W）×125（D）×55（H） / 1kg | |
| Accessories | Measurement joint SJ-50, SJ-10K | Measurement joint SJ-10 |
| 4 bits HEX opposite side 6mm | 4 bits HEX opposite side 5mm | |
| An AC/DC adapror | ||
| Exclusive case | ||
| Result of calibration , Certification on calibration , Traceability system figure | ||
