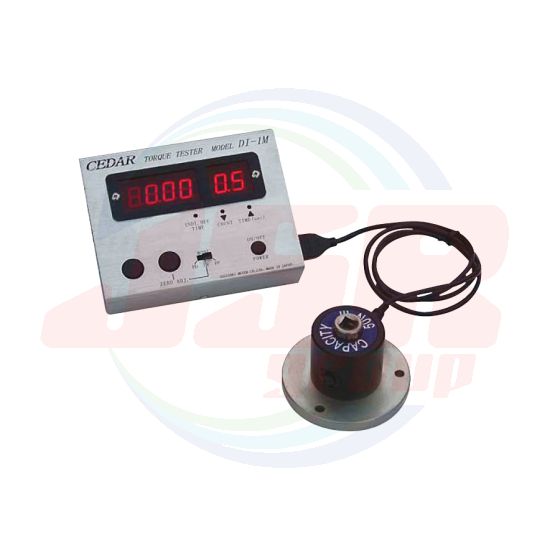

TORQUE TESTER - DI-1M-IP series (50/200/500) | CEDAR
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
CEDAR-DI-1M-IP
Suitable for Impact-based tool management
High accuracy, and portable. It is installed on the work line and is effective for periodic inspection of the tool.
The blow counter displays number of blows and value of torque, and LED display which is brighter and easier to read.
Besides, it can be used for the management of the torque wrench · angle nut runner.
• Blow counter shows number of blows and value of torque
• Enable to inspect operating torque of manual preset type torque wrench etc. in peak down mode
• Auto power-off function · Autoclear function are installed
• Data acquisition software can be downloaded for free
| Order No. |
DI-1M-IP50 | DI-1M-IP200 | DI-1M-IP500 | |
| Measurement range (at the time ofTrack) |
0.30 ~ 50 N•m | 3.0 ~ 200 N•m | 3.0 ~ 500 N•m | |
| 3.0 ~ 500 kgf•cm | 30 ~ 2000 kgf•cm | 30 ~ 5000 kgf•cm | ||
| 3.0 ~ 450 lbf•in | 30 ~ 1800 lbf•in | 30 ~ 4500 lbf•in | ||
| Operating range of Pd Mode |
0.7N•m ~ , 7.0kgf•cm / lbf• ~ | 7.0N•m ~ , 7.0kgf•cm / lbf• ~ | 7.0N•m ~ , 7.0kgf•cm / lbf• ~ | |
| Accuracy |
±0.5% (499 digit or less ±3digit) | |||
| Display |
The 4 figures digital display of LCD | |||
| Mode |
Track, Peak (from 30 or more digits to a display), Peak-Down (from 30 or more digits to a display, Operation is 70 or more) | |||
| Blow | Counts | Zero to 99 blow | ||
| Measurement time | 0.1-9.9 seconds | |||
| Display | LED display | |||
| Data output |
ASCII format (baud rate 19200) | |||
| Auto clear time |
In 0.5-3.0 seconds (0.5-second interval), an indication is automatically given zero.) It is manual zero clearance by 0.0-second setup | |||
| Power supply |
nickel-cadmium battery 1.2v 5cells (700mAh) Auto power OFF (after [OFF] the neglect during 5 minutes) | |||
| Charge time / use time |
At the time of charge about 3 hour/, and the maximum charge Continuation about 8-hour use | |||
| Meter part Outside size |
146(W) x 155(D) x 48(H) (It does not contain by the projection part). | |||
| Meter part Weight |
about 600g | |||
| Detection part Weight |
about 600g | about 1.7kg | about 3.1kg | |
| Code length |
Standard 1m (there are automatic machines no less than 4m as an option) | |||
| Accessories |
Attach case | - | - | |
| AC/DC adapter | ||||
| An inspection report, a proofreading certificate, a traceability system figure | ||||
| (Note) When you measure shock tools, such as an impact tool, please use it by 60% or less of rated torque. |
||||
Detection machine size figure
| Form | IP50 | IP200 | IP500 | Detection machine outside figure |
| A | Ø50 | Ø60 | Ø80 |  |
| B | 63 | 78 | 98.5 | |
| C | 10 | 15.1 | 16 | |
| D | Ø90 | Ø108 | Ø140 | |
| E | Ø74 | Ø90 | Ø116 | |
| F (Three division) | Ø6.3 | Ø8.3 | Ø10.5 | |
| G (Socket intuition affinity) | 9.5sq | 12.7sq | 19sq | |
| Weight | 632g | 1.8kg | 3.5kg |
| แบรนด์สินค้า | CEDAR |
|---|
