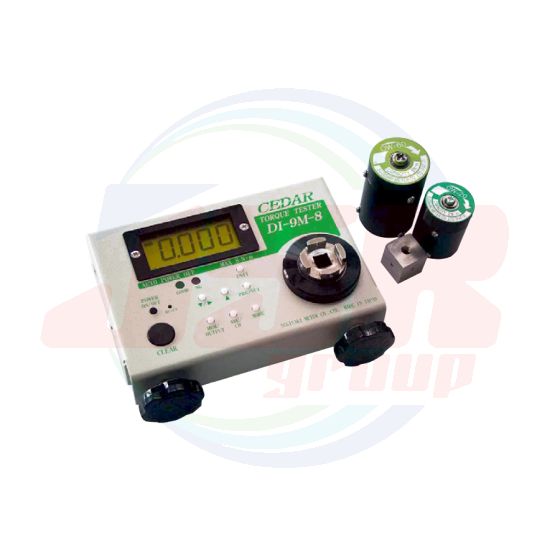

Suitable for daily inspection of electric screw driver Using “OW joint” (joint which is unnecessary to rewind)
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings by switch channels even if the tightening term changes.

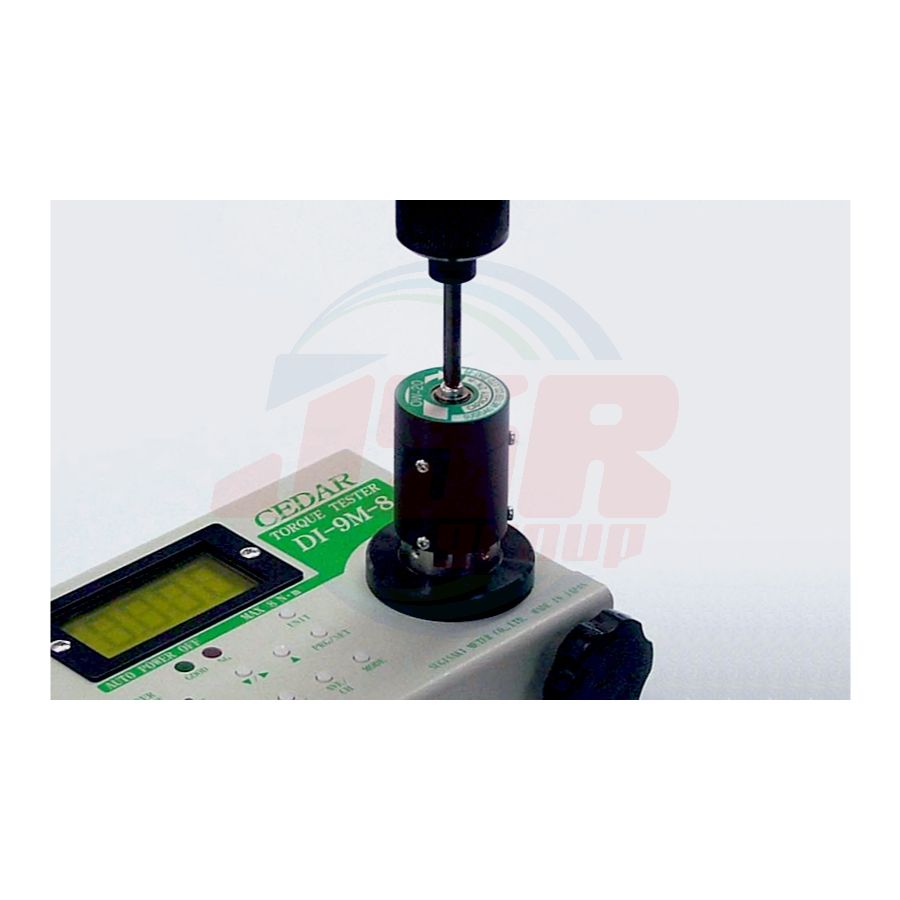

Due to “OW Joint”, able to mesures effectively without rewinding.
• Show “Measurement mode”, “Measurement unit”, and “maximum, minimum, average”
• Switchable measurement unit
• 800 items of Memory data
• Real-time output About every 1/180 seconds
• Data acquisition software can be downloaded for free
• Include “Screw Cube”-measuring jig for manual tools
| Order No. | DI-9M-8 | DI-9M-08 |
| Measuring range | 0.020~8.000 N•m | 2.0~800.0 mN•m |
| 0.20~80.00 kgf•cm | 0.020~8.000 kgf•cm | |
| 0.20~70 lbf•in | 0.020~7.000 lbf•in | |
| Accuracy | ±0.5% (499 digit or less ±3digit) | |
| Display | The 4 figures digital display of LCD | |
| The measurement direction | CW-CCW (right and left) | |
| Zero return by one touch | Return to zero by pressing clear button. | |
| Measurement Mode | Track , P-P(peak to peak) , P-D(Peak-Down) , C(Real-time Output) | |
| High and low limits judging function | High and low value are measurement within the limits, and can be set up. | |
| Real-time Output | Load torque value is outputted every about1/ 180 second. | |
| The Maximum, the minimum, and the average value display | The maximum, the minimum value, and average value of the saved data | |
| Data Output | ASCII format (baud rate 19200) | |
| Auto power save | 10 minutes no use, automatically switch off. | |
| Power supply | Ni-Cd chargeable battery 1.2V x 5cells 700mAh | |
| Charging time | About 3hours | |
| Continuous working time | About 12hours | |
| Clearance | It is a display clearance in set-up time. (0.1 - 3.0 sec) | |
| Socket size | □ 20mm/ □9.5mm | |
| Dimension / Weight | W:160xD:125xH:55 / About 1kg | |
| Recommend buffer accessories | Measuring joint OW-20/OW-60 | Measuring joint OW-025/OW-10 |
| Cube (with 5 sides screw hole) 20x20x20 (M2.6/M3/M4/M5/M6 Tap processing) | ||
| AC/DC adaptor | ||
| Exclusive receipt case | ||
| An inspection report, a proofreading certificate, a traceability system figure | ||
※Do not use for measurement of impact tool. Do not apply more than the specified torque.
