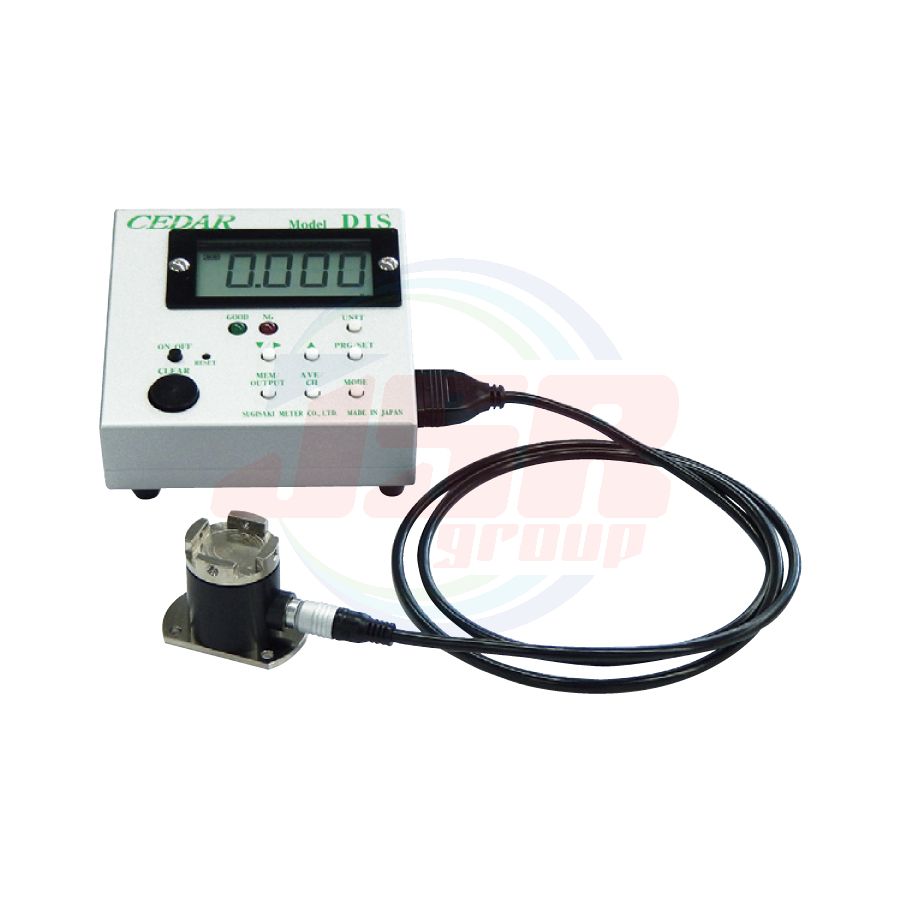

TORQUE TESTER - DIS-IPS series (20C/5C) | CEDAR
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
CEDAR-DIS-IPS
For managing various torque wrenches & torque drivers, and automatic / semiautomatic machines
The detection section is very compact and suitable for automatic line measurement.
Enable to save 5 channels of pass/fail judgement criterion, and enable to change settings easily by switch channels even if the tightening term changes.
Due to “OW Joint”, able to mesures effectively without rewinding.
• Show “Measurement mode” “Measurement unit” Indication of “maximum, minimum, average”
• Switchable measurement unit
• Enable to save 5 sets of settings such as upper limit and lower limit
• 800 items of memory data
• Real-time output About every 1/180 seconds
• Include “Screw Cube” or “Fixed-type Attachment” for measuring static tightening tool
• Data acquisition software can be downloaded for free
| Order No. | DIS-IPS20C | DIS-IPS5C |
| Measurement range | 0.20 ~ 20 N•m | 0.020 ~ 5 N•m |
| Accuracy | ±0.5% (499 digit or less ±1digit) | |
| Display | The 4 figures digital display of LCD | |
| The measurement direction | CW-CCW (right and left) | |
| Mode | Track, P-P(Peak to peak), P-D(peak-down), C(real-time output) | |
| Clearance | It is a display clearance in set-up time. (0.1 - 3.0 sec) | |
| A success or failure judging function | High and low value are measirement within the limits, and can be set up. Five-set preservation is possible. | |
| The maximum, the minimum, and the average value | Displays, memory and output the data number, the maximum, the minimum, and the average value of the measured value | |
| Data memory counts | 800 data | |
| Auto-power-off | After the neglect during 10 minutes | |
| Data output | ASCII format (baud rate 19200) | |
| Power supply | Ni-Cd chargeable battery 1..2V x 5cells 700mAh | |
| Charge time / use time | Charge about 3 hour / continuation about 12-hour use | |
| Indicator size / weight | 100(W) x 105(D) x 33(H) (It does not contain by the projection thing) / 357g | |
| Accessories | Fixed attachment □ 20mm M4/M5/M6/M8 | Attachment cube 20x20x20mm (M2.6/3/4/5/6) |
| OW20 joint | OW10 joint | |
| AC/DC adapter | ||
| Result of calibration, Certification on calibration, Traceability system figure | ||

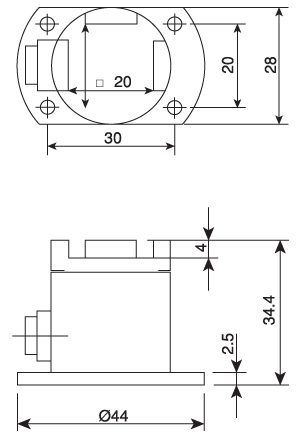

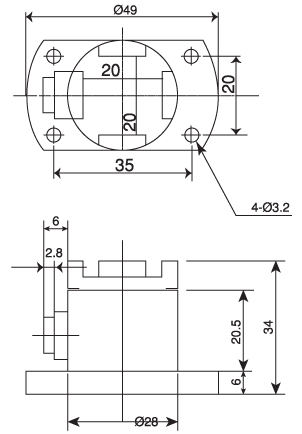

| Detector outside dimension |  |
  OW10 joint |
| แบรนด์สินค้า | CEDAR |
|---|
