TORQUE TESTER - NDI-800CN/80CN | CEDAR
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
CEDAR-NDI

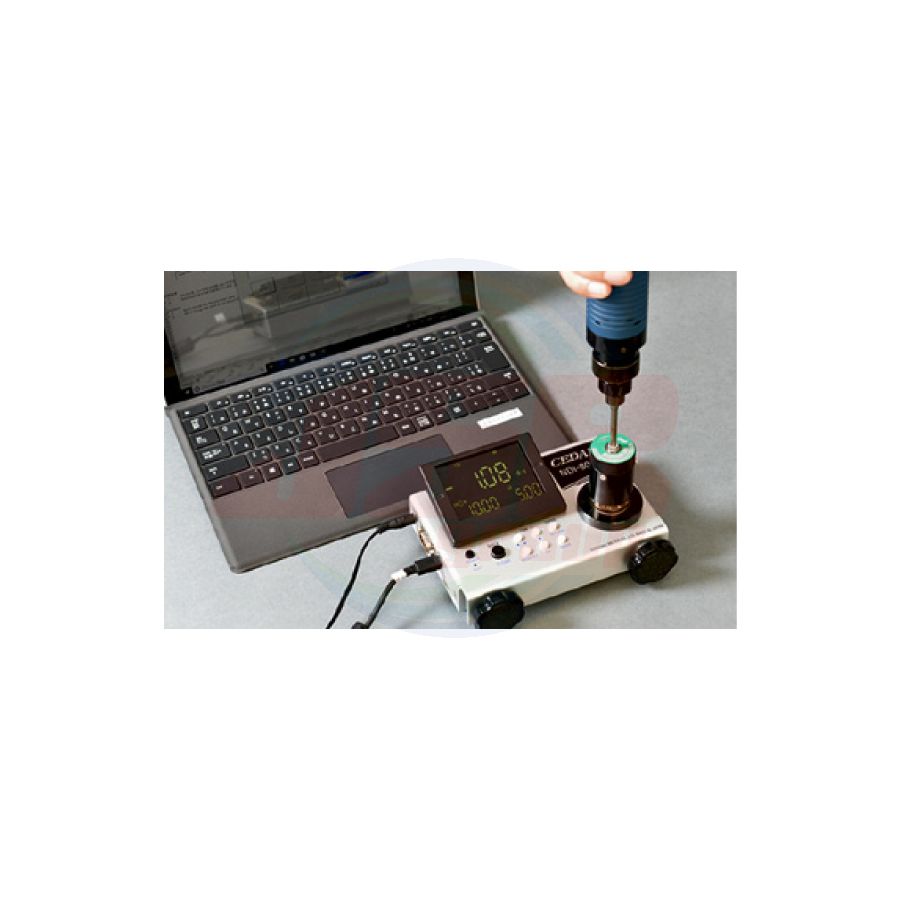

Suitable for daily inspection of electric screw driver Progress of Visibility, Usability and Connectability
Visible display due to colorization & tilt function Easier operation with dedicated software enables more sophisticated management.
Due to “”OW Joint””, able to measures effectively without rewinding
• Easy set-up of tester on PC
• Easy search of memory data
• Enable to be powered directly by AC adapter
• Enable to check pass/fail threshold value during measurement
• Color display depending on measurement value
• Software can be downloaded for free
• Include “Screw Cube”-measuring jig for manual tools
| Order No. | NDI-80CN | NDI-800CN | ||||||||||||||
| Range | 0.020~8.160 kgf•cm | 0.20~81.60 N•m | ||||||||||||||
| 0.018~7.080 lbf•in | 0.18~70.80 lbf•in | |||||||||||||||
| 2.0~800.0 mN•m | 0.020~8.000 N•m | |||||||||||||||
| Unit | kgf • cm / lbf • in / mN •m | kgf • cm / lbf • in / N •m | ||||||||||||||
| Accuracy | ±0.5%(If the value is 499 digit or less, the accuracy ±3 digit.) | ±0.5%(If the value is 499 digit or less, the accuracy ±3 digit.) | ||||||||||||||
| Sampling rate | 1000 data / 1 second | |||||||||||||||
| Measurement mode |
|
|||||||||||||||
| Memory capacity | 400 Data | |||||||||||||||
| Clock | Store the measurement date. | |||||||||||||||
| Power | AC adaptor (12V) / AA battery | |||||||||||||||
| Socket size | □ 20 / □ 9.5 | |||||||||||||||

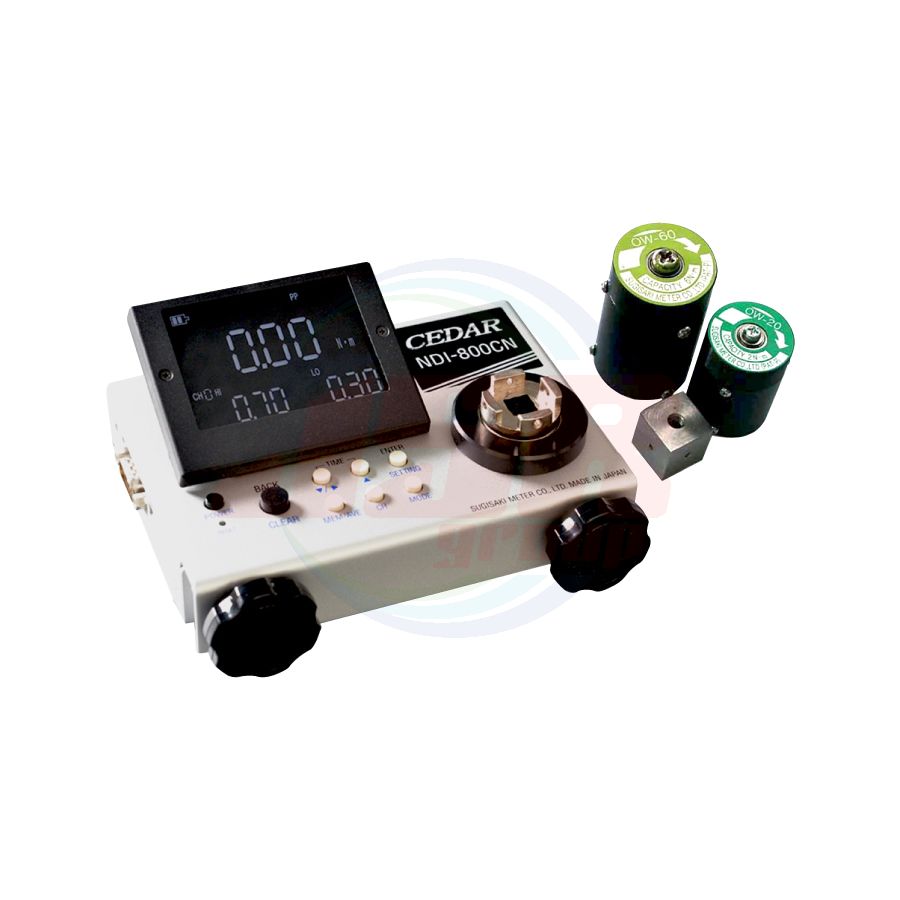

| Accessories (one pieces each) | (measurement joint) OW-025 / OW10 | (measurement joint) OW-20 / OW-60 | ||||||||||||||
| Cube with screw holes of M2.6, M3, M4, M5 and M6 (size 20x20x20mm) | ||||||||||||||||
| AC adaptor (input : AC100~240V (50/60Hz), output : DC12V) | ||||||||||||||||
| USB cable (mini B type) | ||||||||||||||||
| AA Size Cell x4 | ||||||||||||||||
| Result of calibration, Certification on calibration, Traceability system figure | ||||||||||||||||
| แบรนด์สินค้า | CEDAR |
|---|
