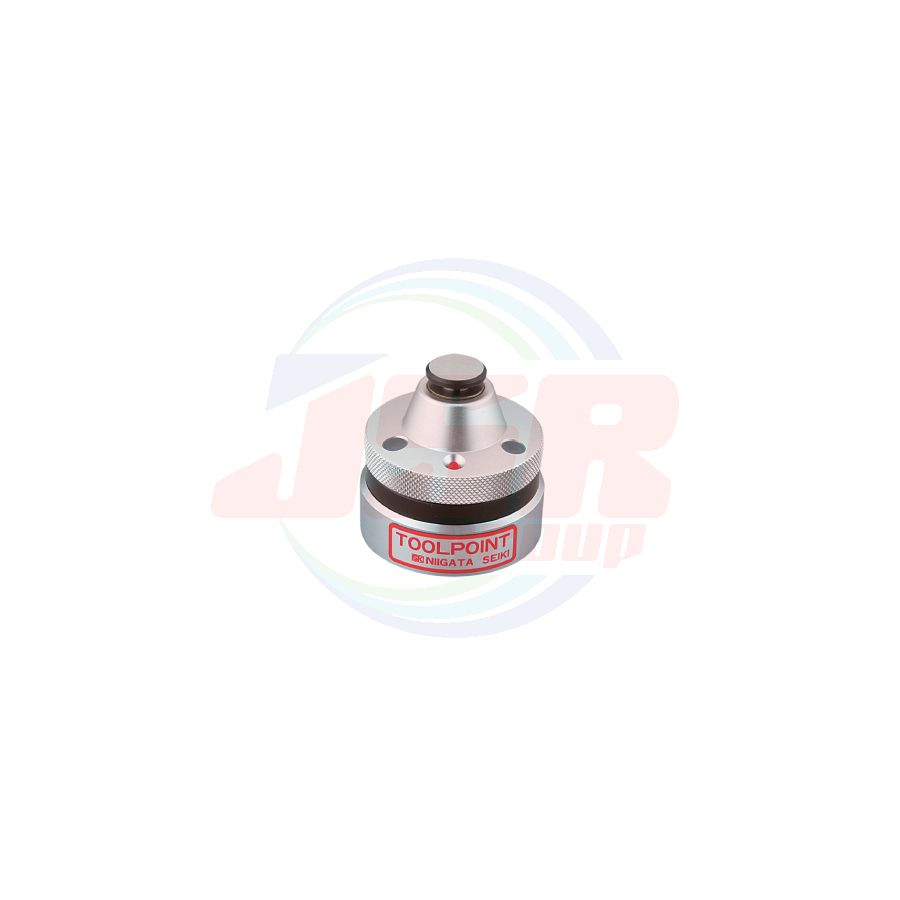

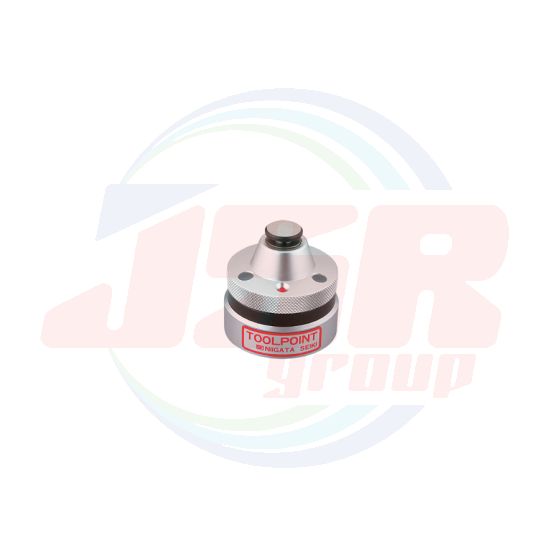

TP-50 (013205) | TOOL POINT GAUGE| SK NIIGATASEIKI
THB 0.00
พร้อมส่ง
SKU
013205
Position detection for Z-axis
USE
● High accuracy position detection
MATERIAL
●Alloy tool steel
FEATURES
Preset gauge
●Zero point with light sensor（ electrical conductivity）
●Zero point setting（ NC lathe, machining center）
●Magnetic base（ TP-50M）
POWER
●O ne LR44（ alkali coin battery） included for testing
| Order No. | Model No. | Nominal Size (mm) |
Accuracy (mm) |
Repeatability | Measuring Force |
| 013205 | TP-50 | 50 | 50 +0.005 0 |
± 1μm | 2.5N |
| 013206 | TP-50M | 50 | 50 +0.005 0 |
± 1μm | 2.5N |
| Stroke | Magnetic Force | Weight |
| 3mm | − | 300g |
| 29N |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
