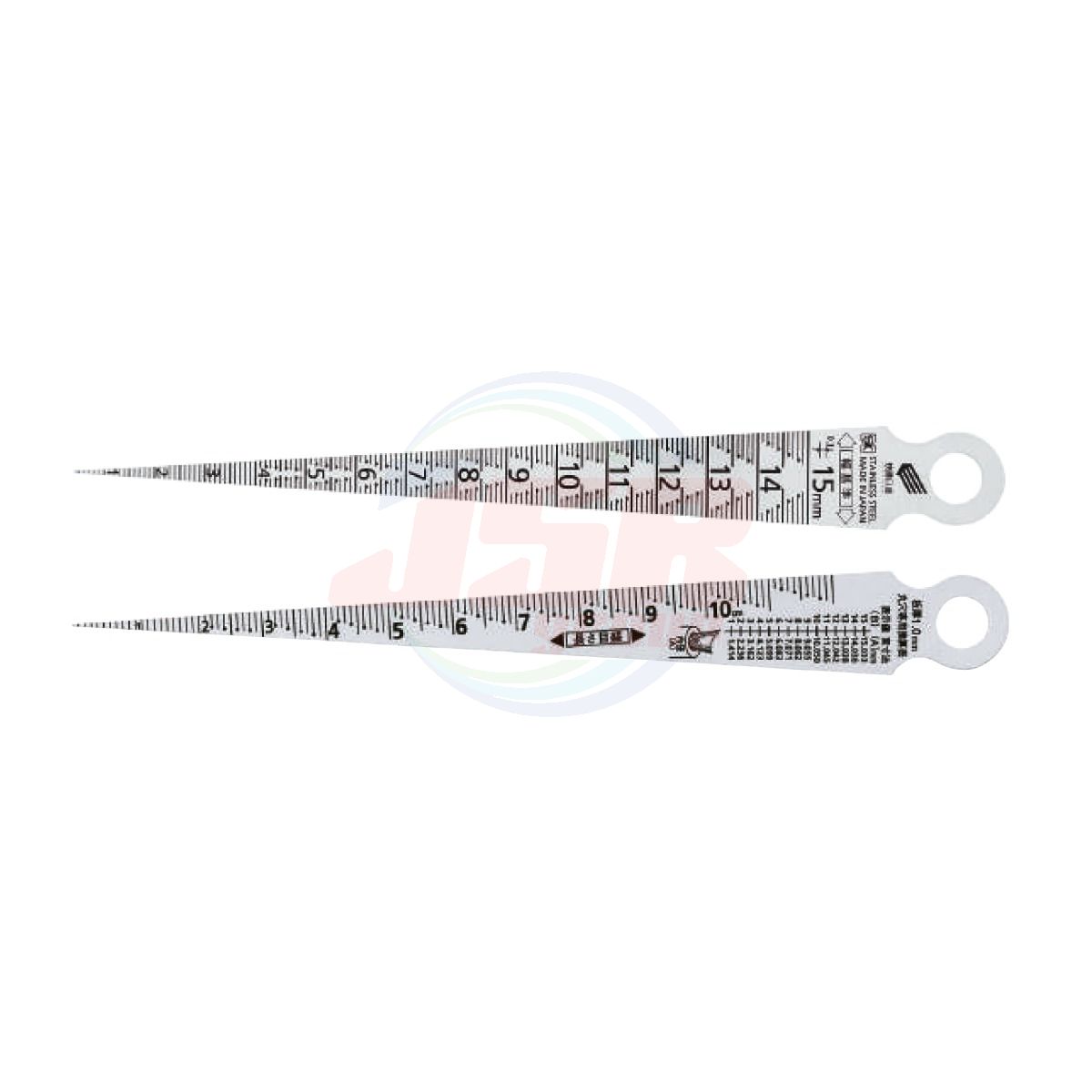

TPG-700AKD | TAPER GAUGE KAIDAN | sk niigata seiki
THB 0.00
พร้อมส่ง
SKU
TPG-700AKD
USE
●For measurement of groove, gap, hole diameter etc.
MATERIAL
●Hardened stainless steel ●Hardness： HV480
FEATURES
●Increasing height of each mark makes it easier for eye to distinguish 0.1mm steps
●Sequential number style can be read directly without checking the surrounding numbers, 0.2mm point markings
●Satin finish ●Front: width scale ●Back: length scale with a conversion table
| Order No. | Model No. | Standard | Measuring Range （mm） |
Measuring Range （mm） |
Graduation （mm） |
Taper Angle | Full Length | Thickness （mm） |
Weight |
| 007211 | TPG-700AKD | #700 | 1-15 | ±0.05 | 0.1 | 7 °9 ′10 ″ |
148.5 | 1.0 | 10g |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|---|
| Order No. | TPG-700AKD |
| standard | #700 |
| Measuring Range (mm） | 1-15 |
| Accuracy (mm） | ±0.05 |
| Graduation (mm） | 0.1 |
| Taper Angle | 7 °9 ′1 0 ″ |
